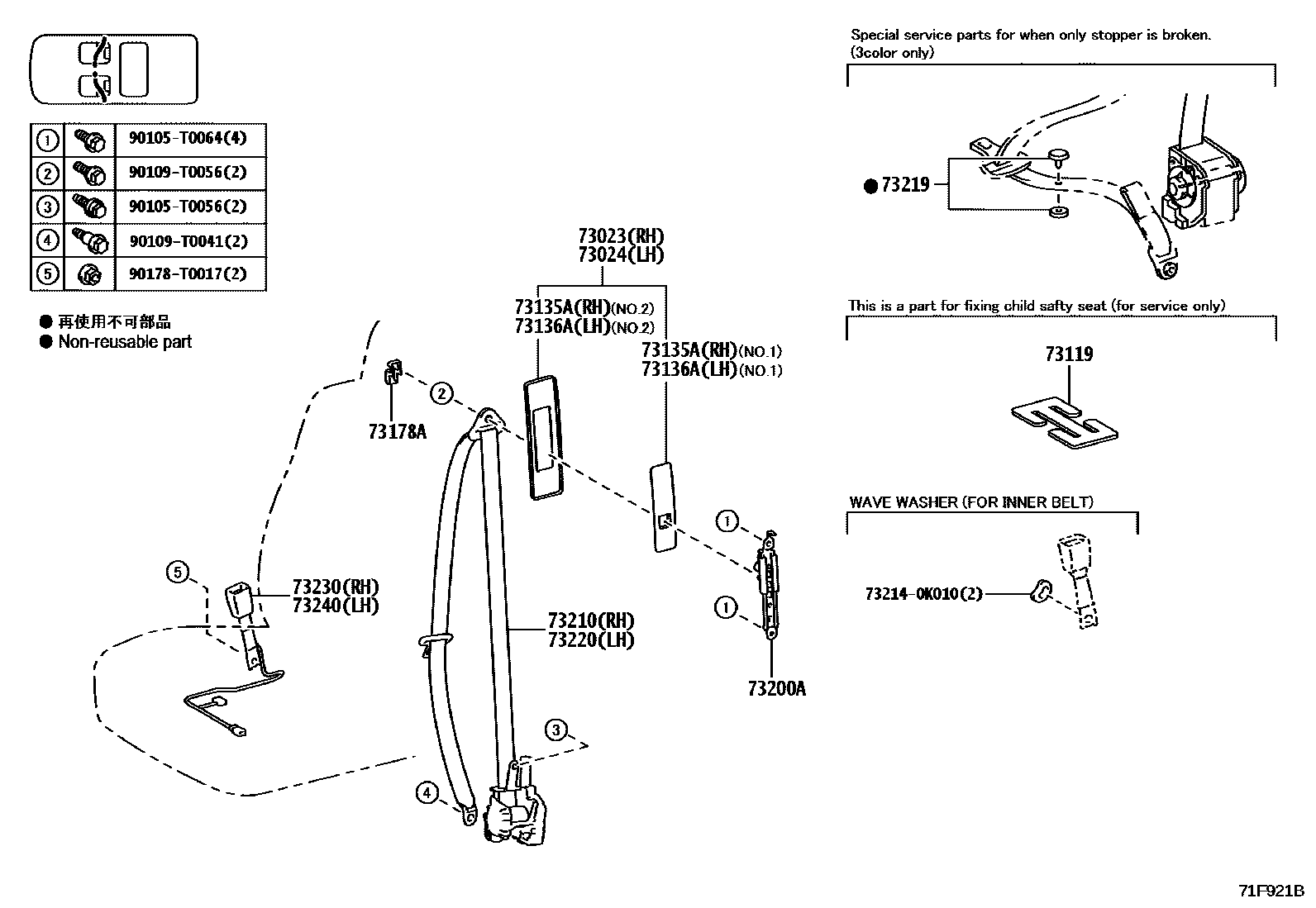

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21,25
BLACK,TRIM21
BLACK,TRIM21,23,25
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21
BLACK,TRIM21,23,25
BLACK,TRIM21,25
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
BLACK,TRIM21
BLACK,TRIM21,23,25
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
BLACK,TRIM21,23,25,NO.1:REFER ILLUST.
BLACK,TRIM21,NO.1:REFER ILLUST.
BLACK,TRIM21,25,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
BLACK,TRIM21,23,25,NO.2:REFER ILLUST.
BLACK,TRIM21,NO.2:REFER ILLUST.
BLACK,TRIM21,25,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,NO.1:REFER ILLUST.
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
BLACK,TRIM21,NO.1:REFER ILLUST.
BLACK,TRIM21,25,NO.1:REFER ILLUST.
BLACK,TRIM21,23,25,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
LT.GRAY,TRIM20,NO.2:REFER ILLUST.
BLACK,TRIM21,NO.2:REFER ILLUST.
BLACK,TRIM21,25,NO.2:REFER ILLUST.
BLACK,TRIM21,23,25,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21
BLACK,TRIM21,25
BLACK,TRIM21,23,25
LT.GRAY,TRIM20
LT.GRAY,TRIM2#
BLACK,TRIM21
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
BLACK,TRIM21
BLACK,TRIM21,25
BLACK,TRIM21,23,25
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM21
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
RED/BLACK,TRIM25
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK/RED,TRIM25
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM21
BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM21
RED/BLACK,TRIM25
BLACK/GRAY,TRIM20
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK/RED,TRIM25
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF,BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF,BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
90105T0056
main90105-T0056
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
18 parts on this diagram · 5 diagrams in section
