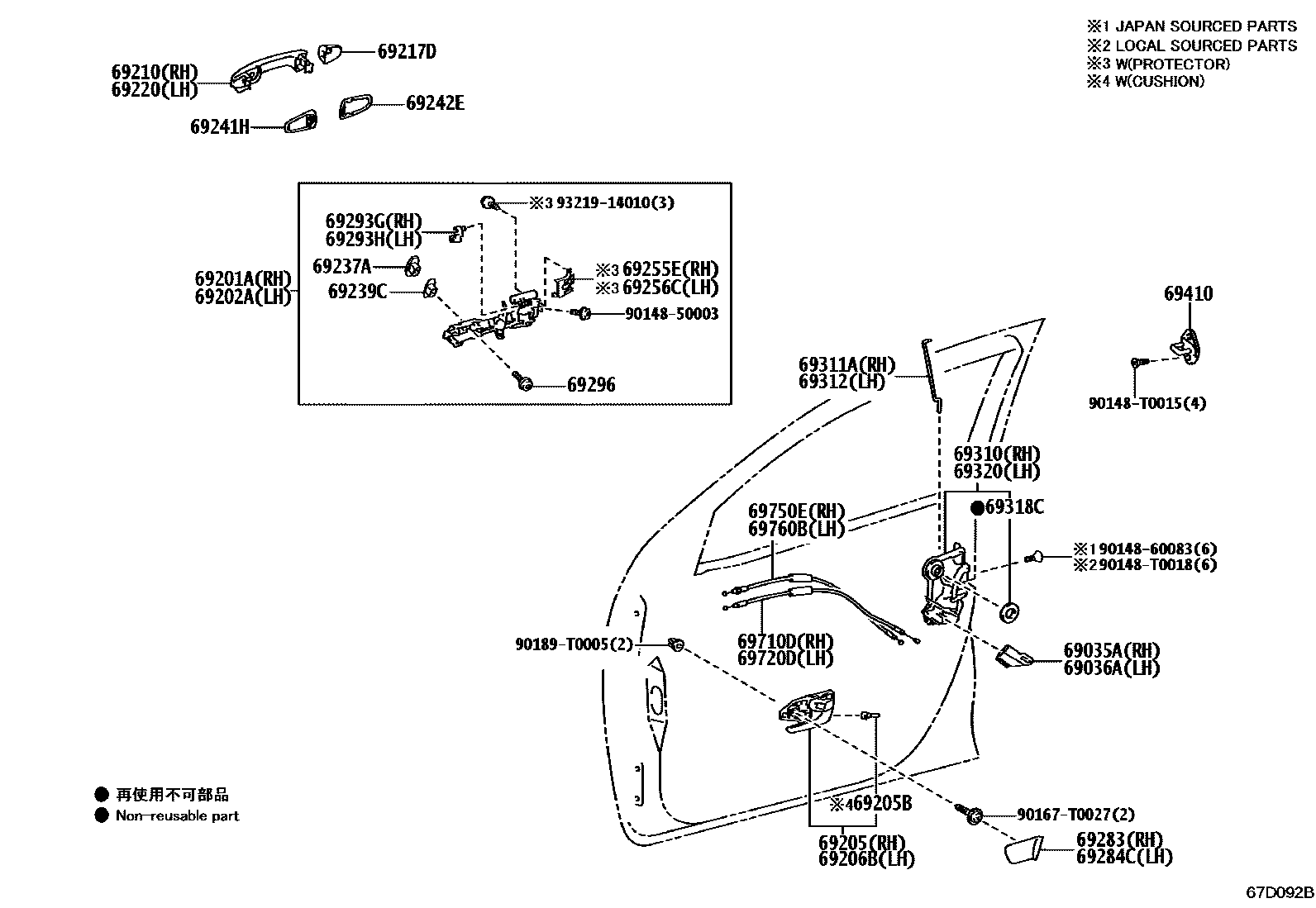

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
sub69202-0K161
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
sub69202-0K161
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
sub69202-0K161
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
sub69202-0K161
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
SILVER ME.,1L0
PLATED
PLATED,ISRAEL EURO6 FOR 12 E-PF
PLATED,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,TURKEY EURO6 FOR 12 E-PF
PLATED,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,MLM ADVENTURE PACKAGE
PLATED,TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
PLATED
PLATED,RUSSIA&CUSTOM UNION SPEC
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH
PLATED
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,DRIVER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF,DRIVER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,DRIVER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,DRIVER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF,DRIVER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,DRIVER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,DRIVER SIDE
*CR,MLM ADVENTURE PACKAGE,DRIVER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,PASSENGER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,PASSENGER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF,PASSENGER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,PASSENGER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,PASSENGER SIDE
*CR,PASSENGER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF,PASSENGER SIDE
*CR,RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,DRIVER SIDE
*CR,RUSSIA&CUSTOM UNION SPEC,DRIVER SIDE
*CR,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION),DRIVER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,DRIVER SIDE
*CR,ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION),PASSENGER SIDE
*CR,RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,RUSSIA&CUSTOM UNION SPEC,PASSENGER SIDE
*CR,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
LESS COLOR,*DRS,PLANT TSAM
LESS COLOR,*PAS,PLANT TSAM
LESS COLOR,*DRS,*EX/PLANT TSAM
LESS COLOR,*PAS,*EX/PLANT TSAM
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
SILVER ME.,1L0
PLATED,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,MLM ADVENTURE PACKAGE
PLATED
PLATED,ISRAEL EURO6 FOR 12 E-PF
PLATED,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,TURKEY EURO6 FOR 12 E-PF
PLATED,TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
PLATED
PLATED,RUSSIA&CUSTOM UNION SPEC
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,UKRAINE SPEC (EURO 6 REGULATION)
PLATED,TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
PLATED,RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH
PLATED
69237ANUT, FRONT DOOR HANDLE
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69239CBUSH, FRONT DOOR HANDLE
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
sub69256-0K051
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
sub69256-0K051
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
sub69256-0K051
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
sub69256-0K051
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69296SCREW, DOOR INSIDE HANDLE
TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEYCYLINDER DRIVER SIDE ONLY
ISRAEL EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
TURKEY EURO6 FOR 12 E-PF&MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
69310LOCK ASSY, FRONT DOOR, RH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
WIRELESS DOOR LOCK-WITH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
38 parts on this diagram · 1 diagram in section
