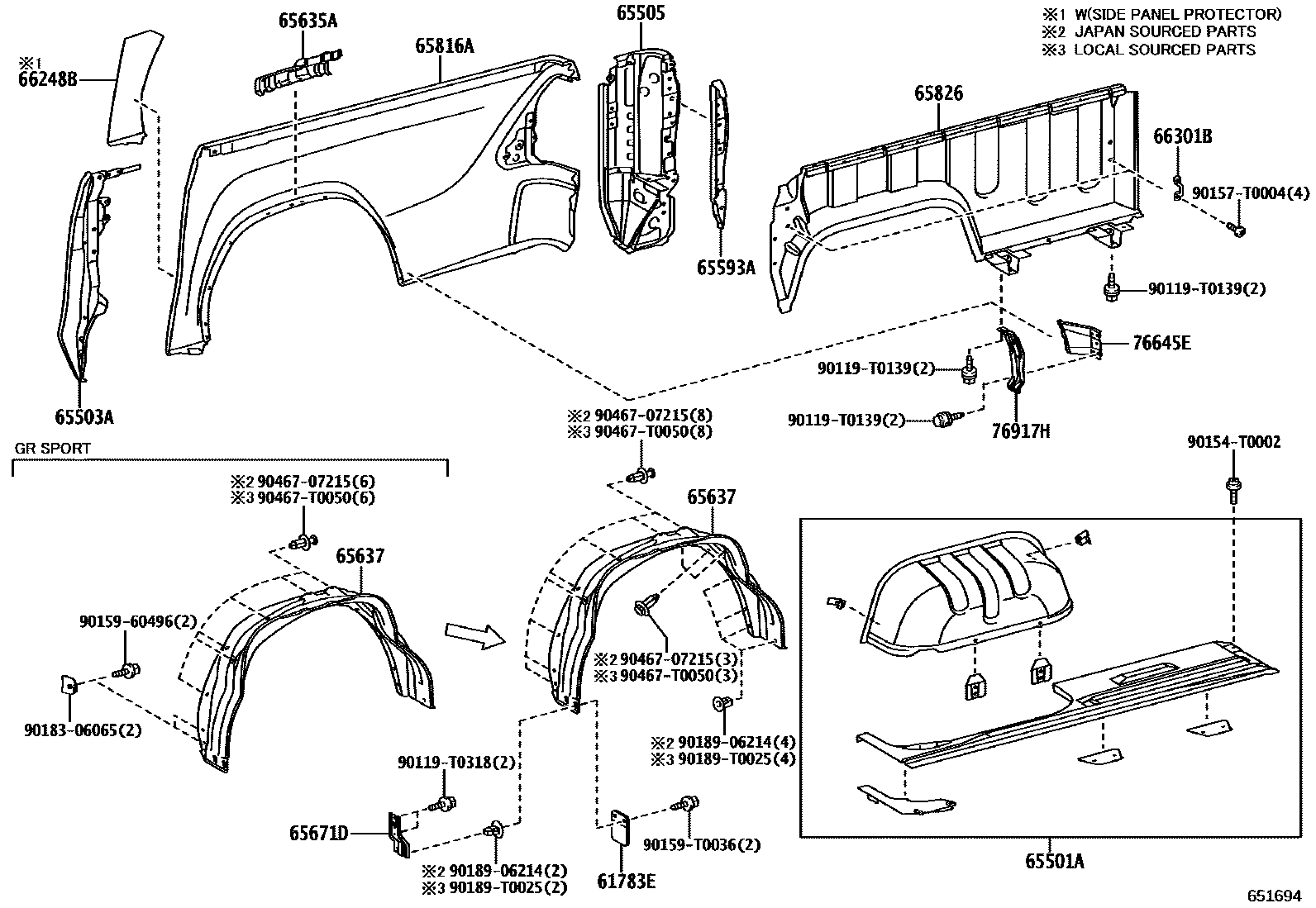

REAR BODY SIDE PANEL
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
EXCEPT PLANT TSAM
PLANT TSAM
PLANT TSAM
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
65635APANEL, WHEEL HOUSE, REAR RH
65637LINER, REAR WHEEL HOUSE, RH
TIRE & DISC WHEEL-265/65R17 STEEL
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65816APANEL, REAR BODY SIDE, RH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
65826PANEL, REAR BODY SIDE, INNER RH
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
STEP & STEP COVER-WITHOUT
TIRE & DISC WHEEL-265/65R17 STEEL
STEP & STEP COVER-WITHOUT
STEP & STEP COVER-WITH(BLACK)
66301BHOOK SUB-ASSY, ROPE
76645EBRACKET, RR BODY MUDGUARD, RH
76917HMUDGUARD, SIDE, REAR RH
90119T0139
main90119-T0139
90119T0318
main90119-T0318
90154T0002
main90154-T0002
90157T0004
main90157-T0004
9015960496
main90159-60496
90159T0036
main90159-T0036
9018306065
main90183-06065
9018906214
main90189-06214
90189T0025
main90189-T0025
9046707215
main90467-07215
90467T0050
main90467-T0050
25 parts on this diagram · 6 diagrams in section
