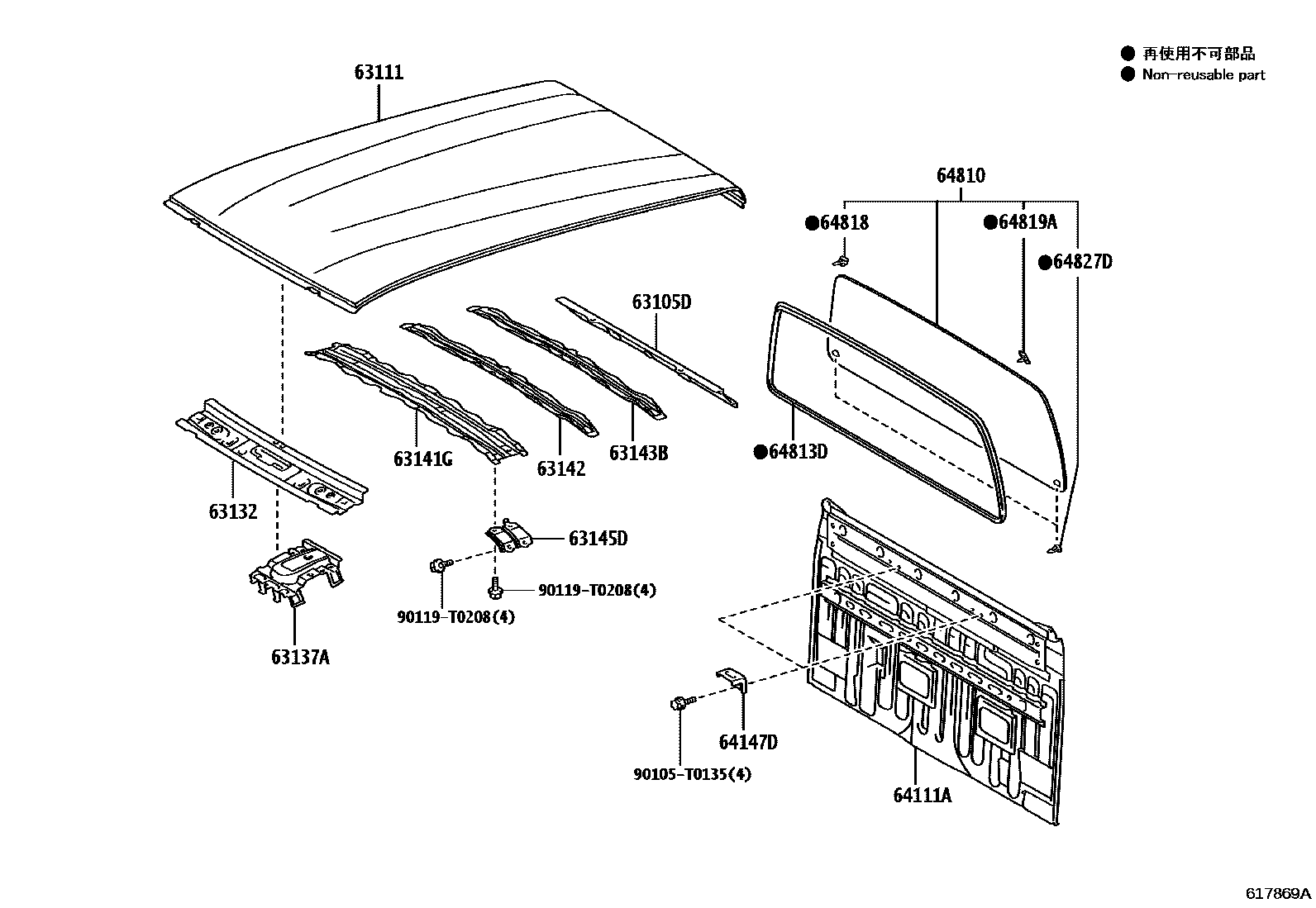

ROOF PANEL & BACK PANEL
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
DATA COMMUNICATION MODULE
ACTIVE SAFETY PACKAGE-WITHOUT&DATA COMMUNICATION MODULE
DATA COMMUNICATION MODULE-WITHOUT
GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
63132PANEL, WINDSHIELD HEADER, INNER
63137ABRACKET, DOME LAMP, NO.1
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63145DBRACKET, ROOF REINFORCEMENT
64111APANEL, BACK
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT
REAR SEAT-WITH(BACK PANEL CUSHION ONLY)
64147DPLATE, BACK PANEL CORNER, UPPER
64810WINDOW ASSY, BACK
BACK GLASS-FIX TYPE(GREEN)
BACK GLASS-FIX TYPE(PRIVACY)
64813DDAM, BACK WINDOW GLASS ADHESIVE
64818SPACER, BACK WINDOW GLASS
64819ASPACER, BACK WINDOW GLASS, NO.2
64827DCLIP, BACK WINDOW GLASS
90105T0135
main90105-T0135
90119T0208
main90119-T0208
17 parts on this diagram · 3 diagrams in section
