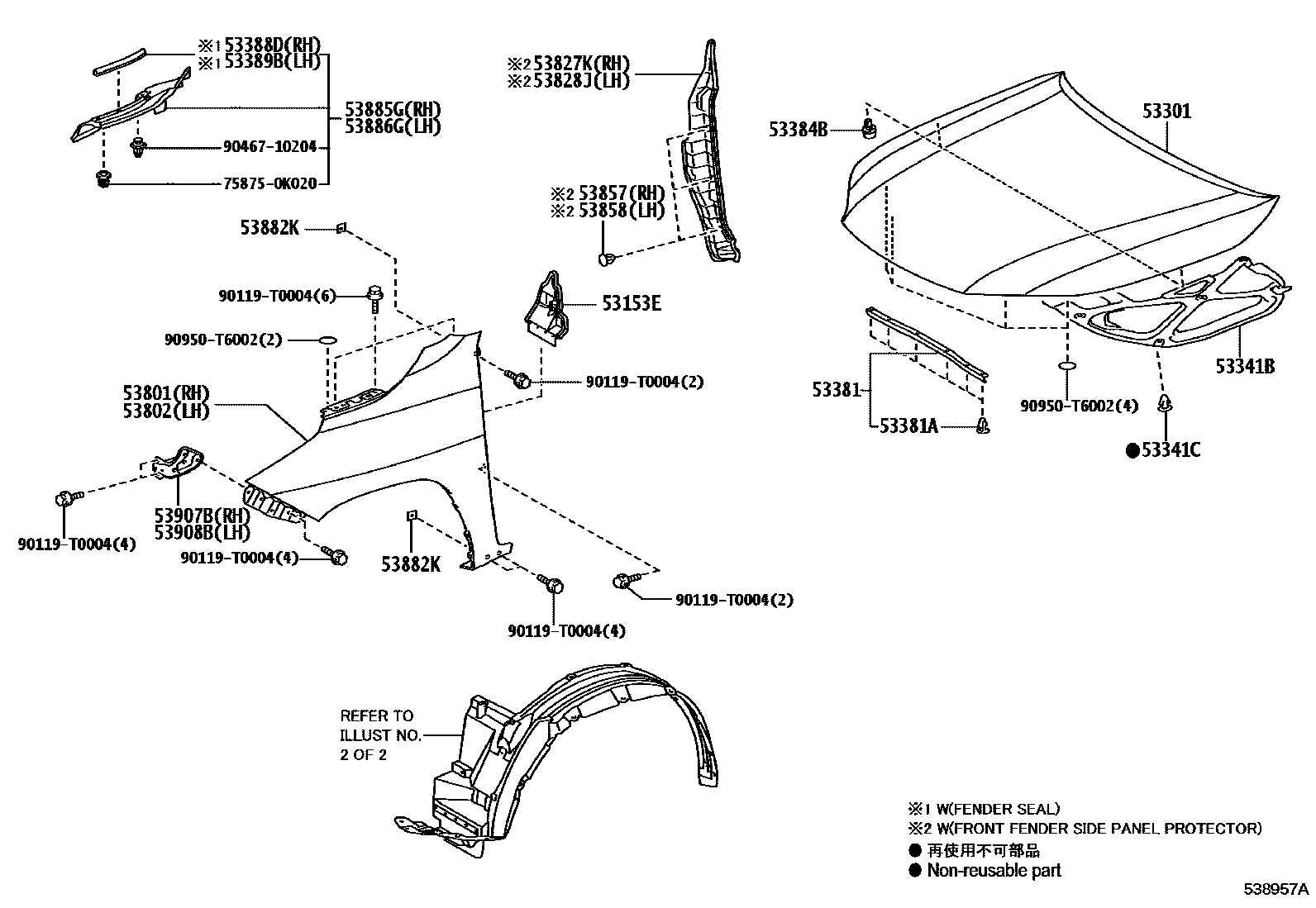

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
TIRE & DISC WHEEL-265/65R17 STEEL
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
53802FENDER SUB-ASSY, FRONT LH
TIRE & DISC WHEEL-265/65R17 STEEL
sub53812-KK050
sub53812-KK050
TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
main53828-0K020iGUN126..XTR;GUN125..XTR..6FC..S;GUN125..SAP..6FC..H;GUN126..DCB..SAP..H202402-202410
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
main53857-0K010iGUN126..XTR;GUN125..XTR..6FC..S;GUN125..SAP..6FC..H;GUN126..DCB..SAP..H202402-202410
(L)
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K130iGUN126..XTR;GUN125..XTR..6FC..S;GUN125..SAP..6FC..H;GUN126..DCB..SAP..H202402-202410
53886GSEAL, FENDER APRON MUDGUARD, LH
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 3 diagrams in section
