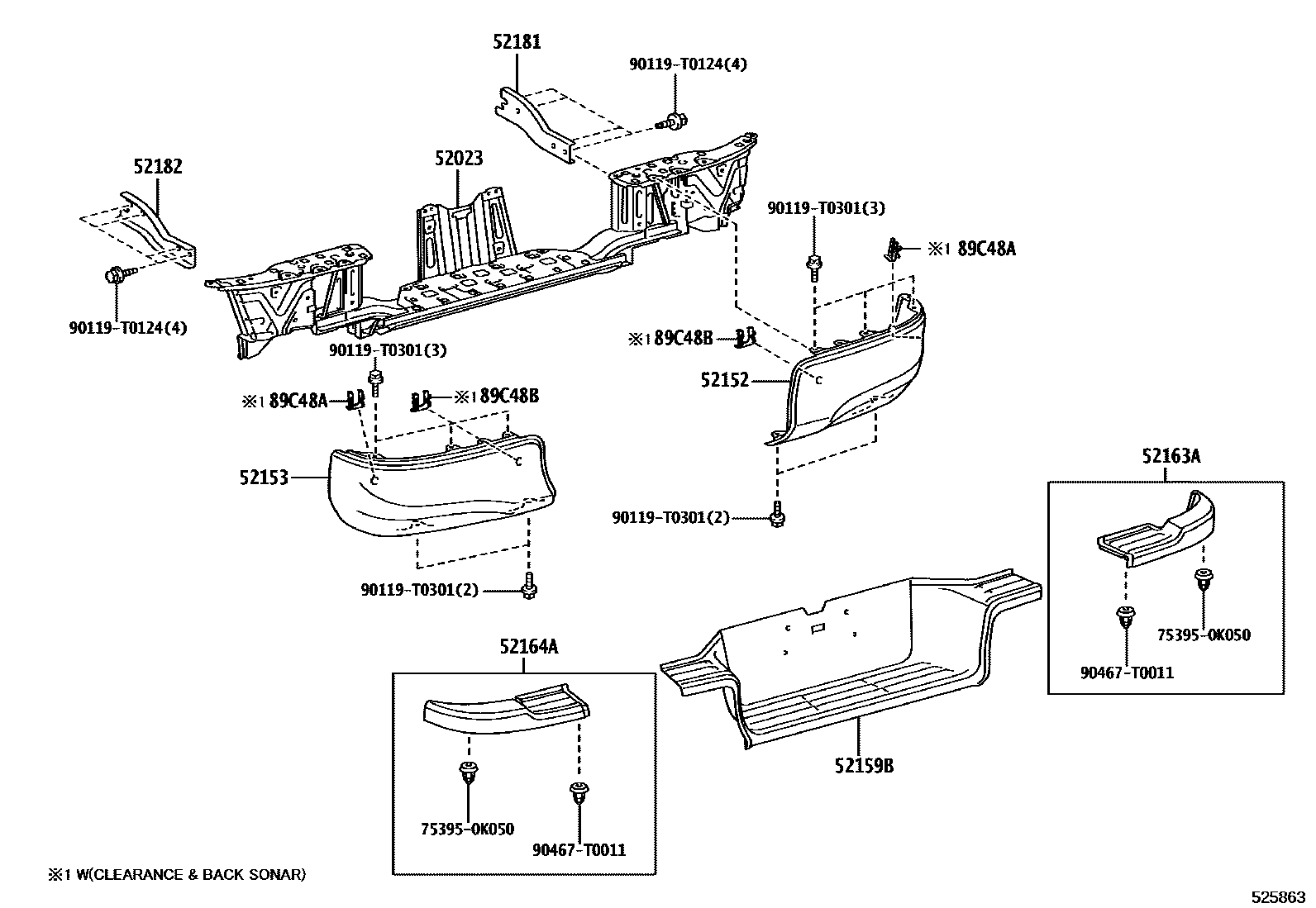

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52152BAR, REAR BUMPER, RH
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
NO PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PAINTED))
PLATED,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&AUDIO-*DA(ENTRY MODEL)
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
52153BAR, REAR BUMPER, LH
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&AUDIO-*DA(8INCH) & *BT & DAB
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PAINTED))
PLATED,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&MLM Z-PLUS PACKAGE&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&AUDIO-*DA(ENTRY MODEL)
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM Z-PLUS PACKAGE&REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
NO PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&REAR BUMPER-WITH(*RUPD(PAINTED(FOR GR-SPORT)))
52159BPLATE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
14 parts on this diagram · 1 diagram in section
