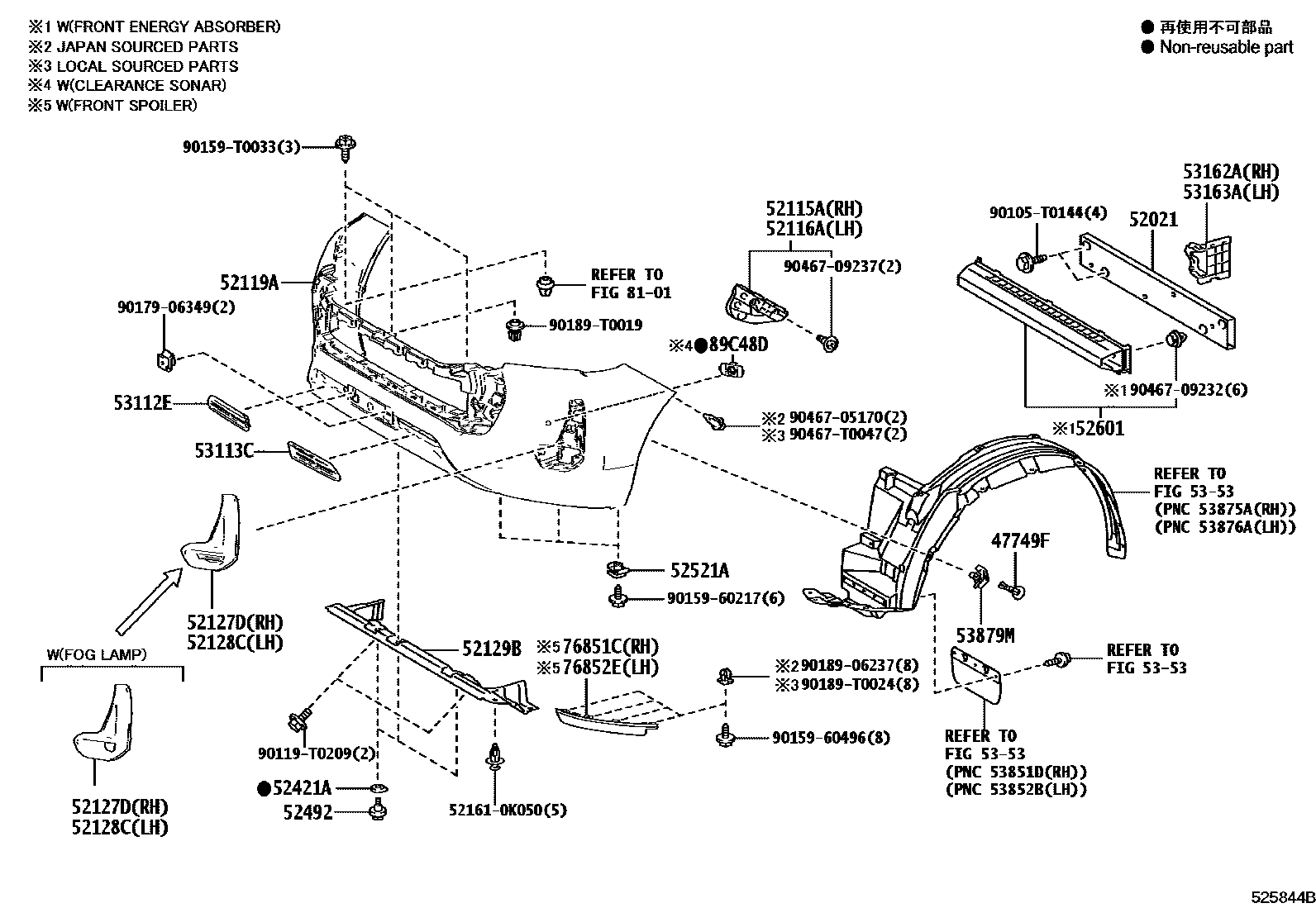

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
52116ASUPPORT, FRONT BUMPER SIDE, LH
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&HEADLAMP-4-BULB HALOGEN MULTI
PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&FRONTFOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&HEADLAMP-4-BULB HALOGEN MULTI&FRONT FOGLAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
52128CCOVER, FRONT BUMPER HOLE, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,TURKEY EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE &BACK SONAR-WITH
NO PAINT REQ.,ISRAEL EURO6 FOR 12 E-PF&REAR BUMPER-WITH(*RUPD(PLATED))&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
52129BCOVER, FRONT BUMPER, LOWER
52421APAD, FRONT BUMPER
1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&CLEARANCE& BACK SONAR-WITH
ISRAEL EURO6 FOR 12 E-PF&1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED)
ISRAEL EURO6 FOR 12 E-PF&1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOGLAMP-WITH(LED)
1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&FRONT FOGLAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
ISRAEL EURO6 FOR 12 E-PF&1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)&CLEARANCE & BACK SONAR-WITH
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
TIRE & DISC WHEEL-265/65R17 STEEL
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53113CGRILLE, RADIATOR, LOWER LH
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
5353
53879MRETAINER, FRONT FENDER LINER
76851CFRONT SPOILER
76852ESPOILER, FRONT, LH
8101
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
RUSSIA&CUSTOM UNION SPEC&CLEARANCE & BACK SONAR-WITH
UKRAINE SPEC (EURO 6 REGULATION)&CLEARANCE & BACK SONAR-WITH
ISRAEL EURO6 FOR 12 E-PF&CLEARANCE & BACK SONAR-WITH
TURKEY EURO6 FOR 12 E-PF
TURKEY EURO6 FOR 12 E-PF&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
521610K050CUSHION, REAR BUMPER GUARD, NO.1
90105T0144
main90105-T0144
90119T0209
main90119-T0209
9015960217
9015960496
90159T0033
9017906349
9018906237
90189T0019
main90189-T0019
90189T0024
main90189-T0024
9046705170
9046709232
9046709237
90467T0047
main90467-T0047
36 parts on this diagram · 5 diagrams in section
