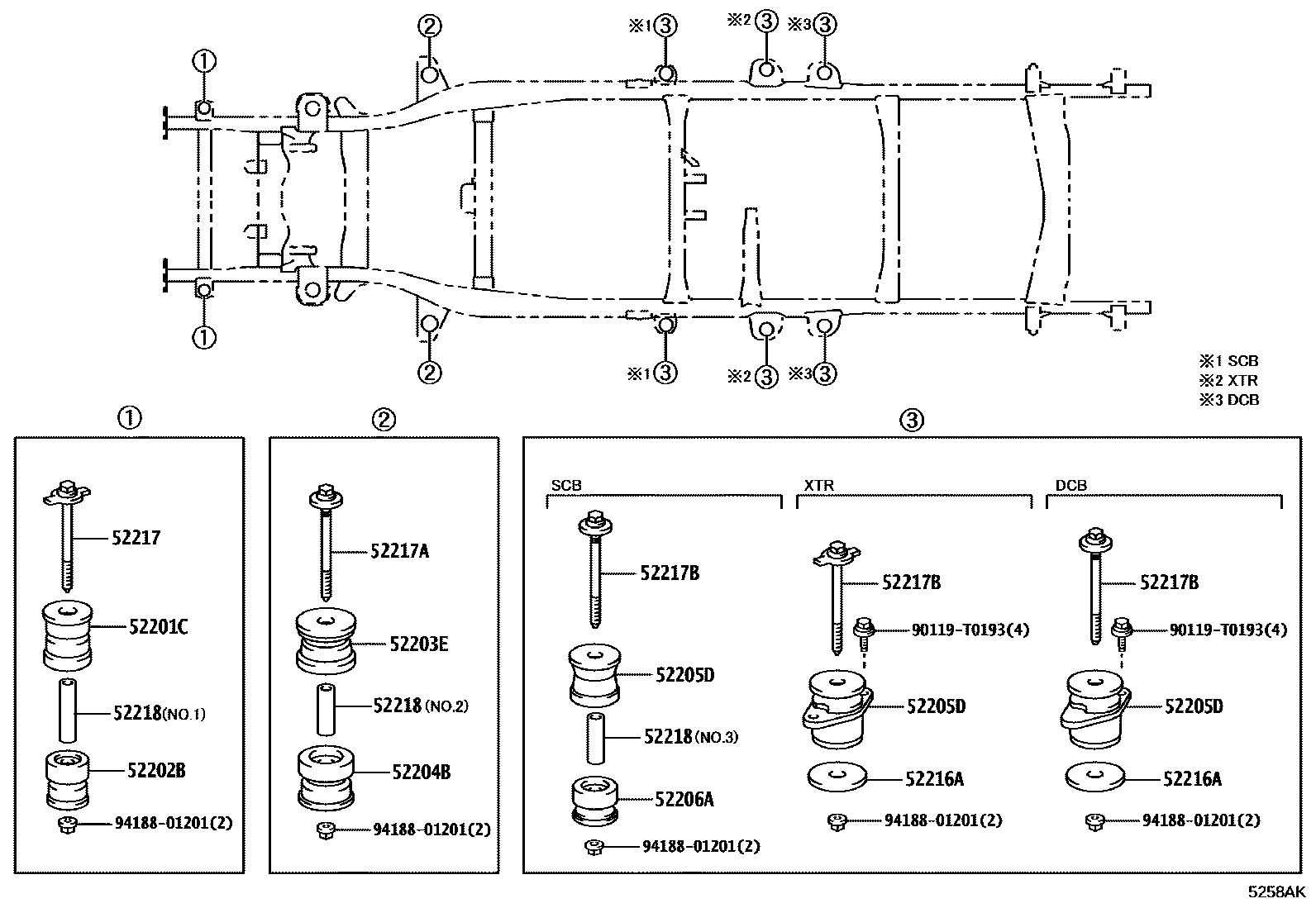

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K100iGUN12#,135..THP202308-202410

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K100iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K120iGUN125,135..SCB202402-202408

main52203-0K150iGUN12#,135..THP202308-202410

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K120iGUN125,135..SAP..6F202308-202410

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110iGUN125,135..SCB202402-202408

main52205-0K150iGUN126..XTR;GUN125..XTR..6FC202402-202410

main52205-0K161iGUN12#,135..THP202308-202410

RH

main52206-0K101iGUN125,135..DCB..SAP..6F202308-202410

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080iGUN125,135..SCB202402-202408

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iGUN125,135..(DCB,XTR)..SAP..6F202308-202410

52217BOLT, BODY MOUNTING

main52217-0K010iGUN12#,135..THP202308-202410

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN12#,135..THP202308-202410

52217BBOLT, BODY MOUNTING

main52217-0K020iGUN125,135..(DCB,SCB)..SAP..6F202308-202410

main52217-0K031iGUN126..XTR;GUN125..XTR..6FC202402-202410

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN125,135..SAP..6F202308-202410

NO.1

main52219-0K010iGUN125,135..SAP..6F202308-202410

NO.2

main52219-0K010iGUN125,135..SCB202402-202408

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
