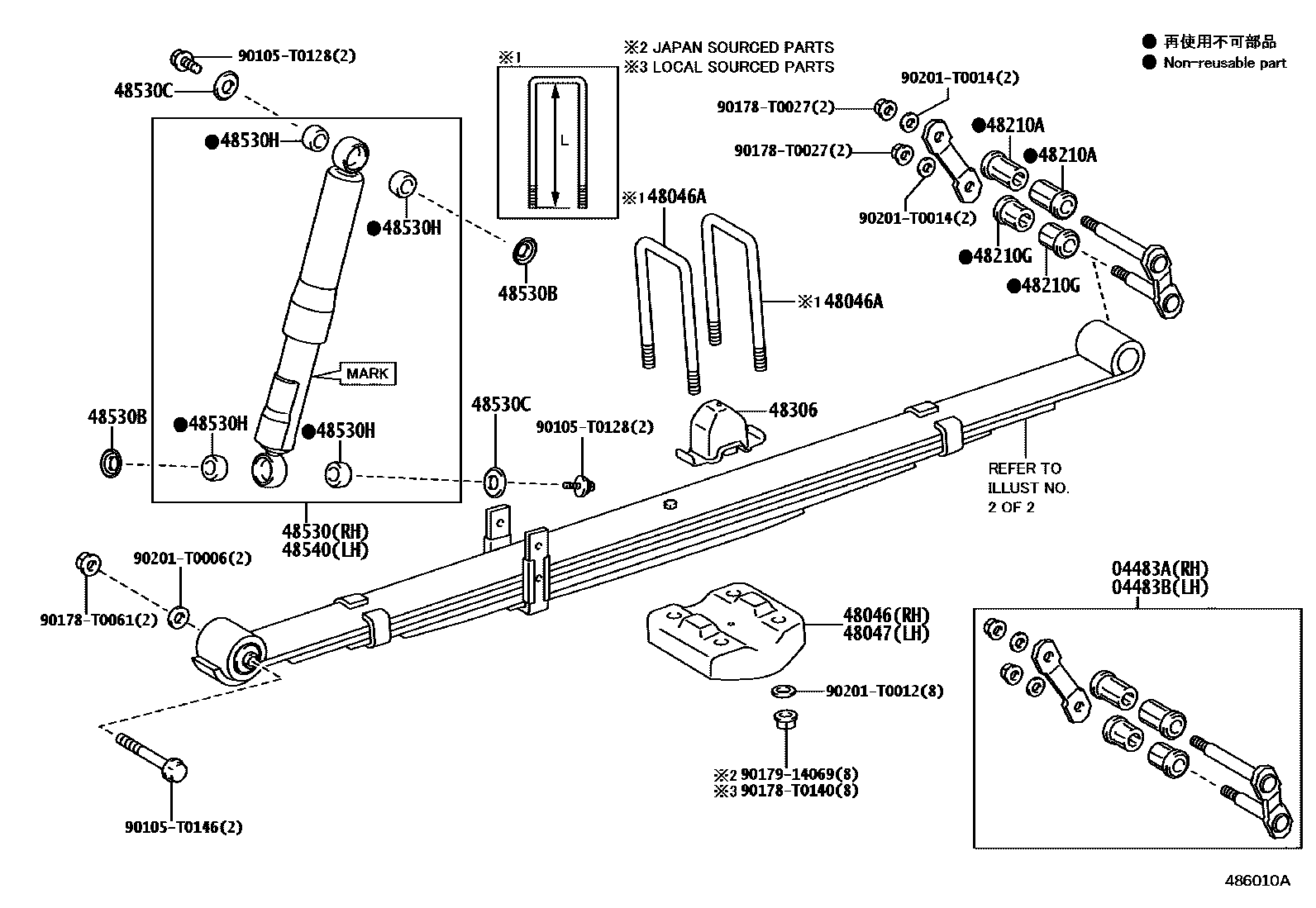

REAR SPRING & SHOCK ABSORBER

0001 1W/O(WIDE TREAD) 0002 1W(WIDE TREAD) 0003 15-LEAF 0004 15-LEAF 0005 15-LEAF, 1 TON PAY LOAD PACKAG

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK030iGUN126..SAP;GUN125,135..SAP..6FC202308-202410

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK030iGUN125,135..SAP..6F202308-202410

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-KK010iGUN125,135..SAP..6F202308-202410

48046ABOLT, U(FOR REAR SPRING)

main90117-F0001iGUN125,135..SAP..6F202402-202410

L=180

main90117-T0006iGUN12#,135..THP202308-202407

L=180

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-KK010iGUN12#,135..THP202308-202410

48210SPRING ASSY, REAR RH

main48210-0K670iGUN125,135..SCB202402-202408

5-LEAF

main48210-0KC60iGUN126..THP..H202308-202407

5-LEAF,GR SPORT WIDE TREAD&HEADLAMP-LED(MLM)

main48210-0KC60iGUN126..THP..H;GUN125,135..THP202308-202407

5-LEAF

main48210-0KC70iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202410

5-LEAF

main48210-0KD20iGUN126..S202308-202402

5-LEAF

main48210-0KD30iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

5-LEAF

main48210-0KD30iGUN125,135..(DCB,XTR)..SAP..6F..CBU202402-202408

5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0020iGUN12#,135..THP202308-202410

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0017iGUN12#,135..THP202308-202410

48306BUMPER SUB-ASSY, REAR SPRING

main48306-0K040iGUN12#..THP202308-202410

main48306-0K050iGUN135..SAP202308-202410

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-8Z007iGUN125..SCB202402-202408

MARK 48531-0K660

main48531-8Z008iGUN135..SCB202402-202408

MARK 48531-0K670

main48531-8Z024iGUN126..SAP;GUN125..SAP..6FC202402-202410

MARK 48531-0K590

main48531-8Z026iGUN135..DCB..SAP202402-202410

MARK 48531-0KA40

main48531-8Z031iGUN12#..THP202308-202407

MARK 48531-0K780

main48531-8Z031iGUN126..THP..H202308-202407

MARK 48531-0K780,GR SPORT WIDE TREAD

main48531-8Z032iGUN135..THP202308-202407

MARK 48531-0KA50

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-F3001iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

MADE IN SOUTH AFRICA

main90948-T3001iGUN125,135..SAP..6F202402-202410

MADE IN THAILAND

main90948-T3001iGUN12#,135..THP202308-202407

GR SPORT WIDE TREAD

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-F3002iGUN126..SAP;GUN125,135..SAP..6FC202402-202410

MADE IN SOUTH AFRICA

main90948-T3002iGUN126..THP..H202308-202407

GR SPORT WIDE TREAD

main90948-T3002iGUN125,135..SAP..6F202402-202410

MADE IN THAILAND

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0019iGUN12#,135..THP202308-202410

GR SPORT WIDE TREAD

main90385-T0019iGUN125,135..SAP..6F202308-202408

48540ABSORBER ASSY, SHOCK, REAR LH

main48541-09300iGUN125..SCB202402-202408

MARK 48541-0K190

main48541-09310iGUN135..SCB202402-202408

MARK 48541-0K200

main48541-09430iGUN126..SAP;GUN125..SAP..6FC202402-202410

MARK 48541-0K390

main48541-09450iGUN135..SAP..6FC202402-202410

MARK 48541-0K460

main48541-09500iGUN126..THP..H202308-202407

MARK 48541-0K430,GR SPORT WIDE TREAD

main48541-09500iGUN126..THP..H202308-202407

MARK 48541-0K430

main48541-09510iGUN135..THP202308-202407

MARK 48541-0K470

90105T0128

main90105-T0128

90105T0146

main90105-T0146

90178T0027

main90178-T0027

90178T0061

main90178-T0061

90178T0140

main90178-T0140

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

23 parts on this diagram · 5 diagrams in section
