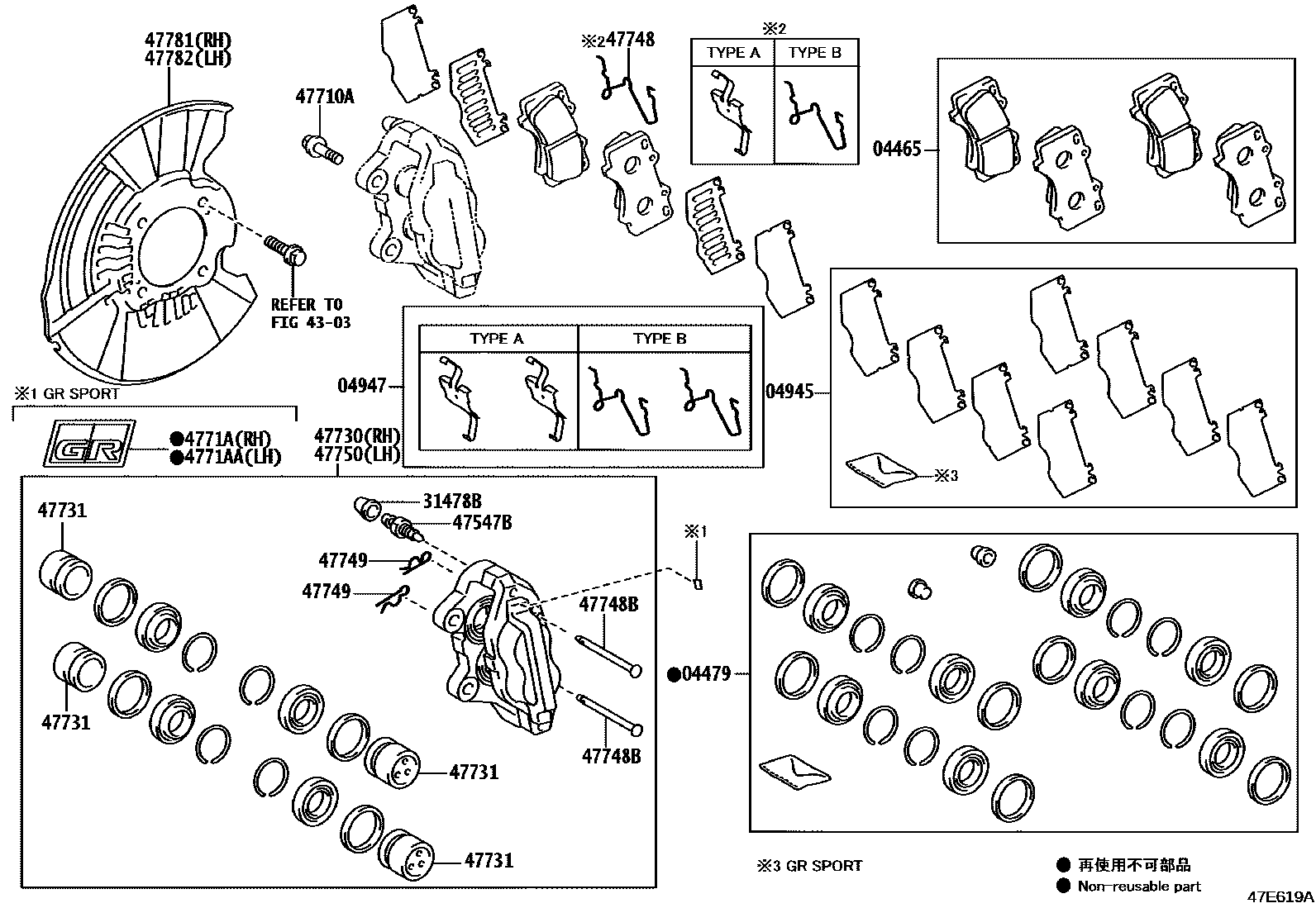

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PS558H
MARK ADVICS PS558H,GR SPORT WIDE TREAD,PNC 04945=TYPE C
MARK ADVICS VC084H,GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GRSPORT)
04479CYLINDER KIT, DISC BRAKE, FRONT
GR SPORT WIDE TREAD
04945SHIM KIT, ANTI SQUEAL, FRONT
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),TYPE B:REFER ILLUST.
GR SPORT WIDE TREAD,TYPE C:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
GR SPORT WIDE TREAD,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
GR SPORT WIDE TREAD
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
GR SPORT WIDE TREAD
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*14-1.5PX35-30.5,GR SPORT WIDE TREAD
sub90105-14212
4771AORNAMENT, BRAKE CALIPER MARK, RH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
4771AAORNAMENT, BRAKE CALIPER MARK, LH
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
47731PISTON, FRONT DISC BRAKE
GR SPORT WIDE TREAD
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
GR SPORT WIDE TREAD,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT),TYPE A:REFER ILLUST.
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
GR SPORT WIDE TREAD
47749CLIP, PIN HOLD
GR SPORT WIDE TREAD,TYPE A:REFER ILLUST.
47750CYLINDER ASSY, DISC BRAKE, LH
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
18 parts on this diagram · 1 diagram in section
