STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K011
RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
sub45024-0K031
UKRAINE SPEC (EURO 6 REGULATION),BLACK,TRIM2#
sub45024-0K031
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB,BLACK,TRIM2#
BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC,BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION),BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF,BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF,BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
UKRAINE SPEC (EURO 6 REGULATION)
TURKEY EURO6 FOR 12 E-PF
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
ISRAEL EURO6 FOR 12 E-PF
45286BCOVER, STEERING COLUMN, UPR
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC,BLACK,TRIM2#
RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION),BLACK,TRIM2#
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF,BLACK,TRIM2#
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
TURKEY EURO6 FOR 12 E-PF,BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
ISRAEL SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
TURKEY SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(ENTRY MODEL)
UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104

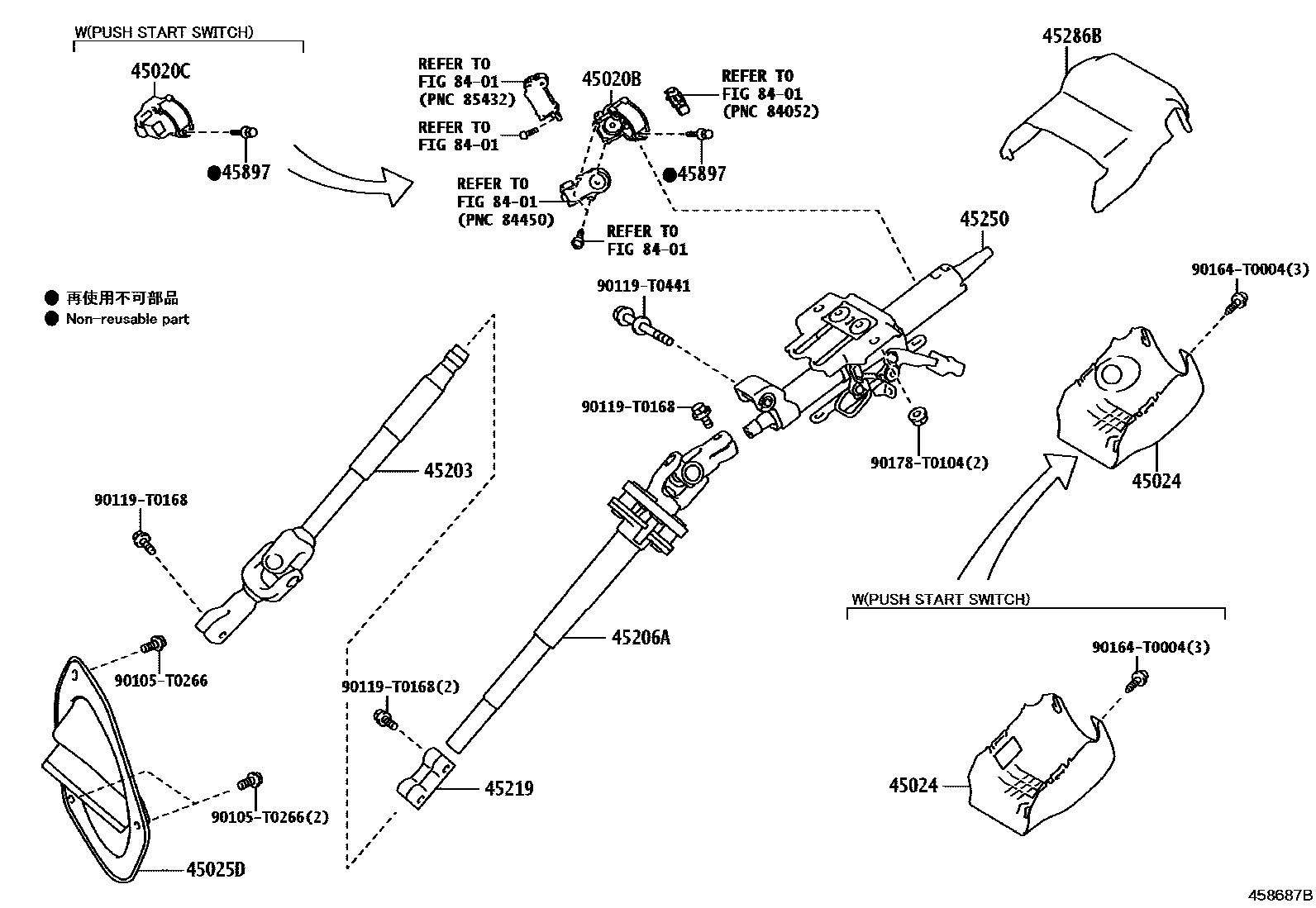

16 parts on this diagram · 1 diagram in section
