VALVE BODY & OIL STRAINER (ATM)

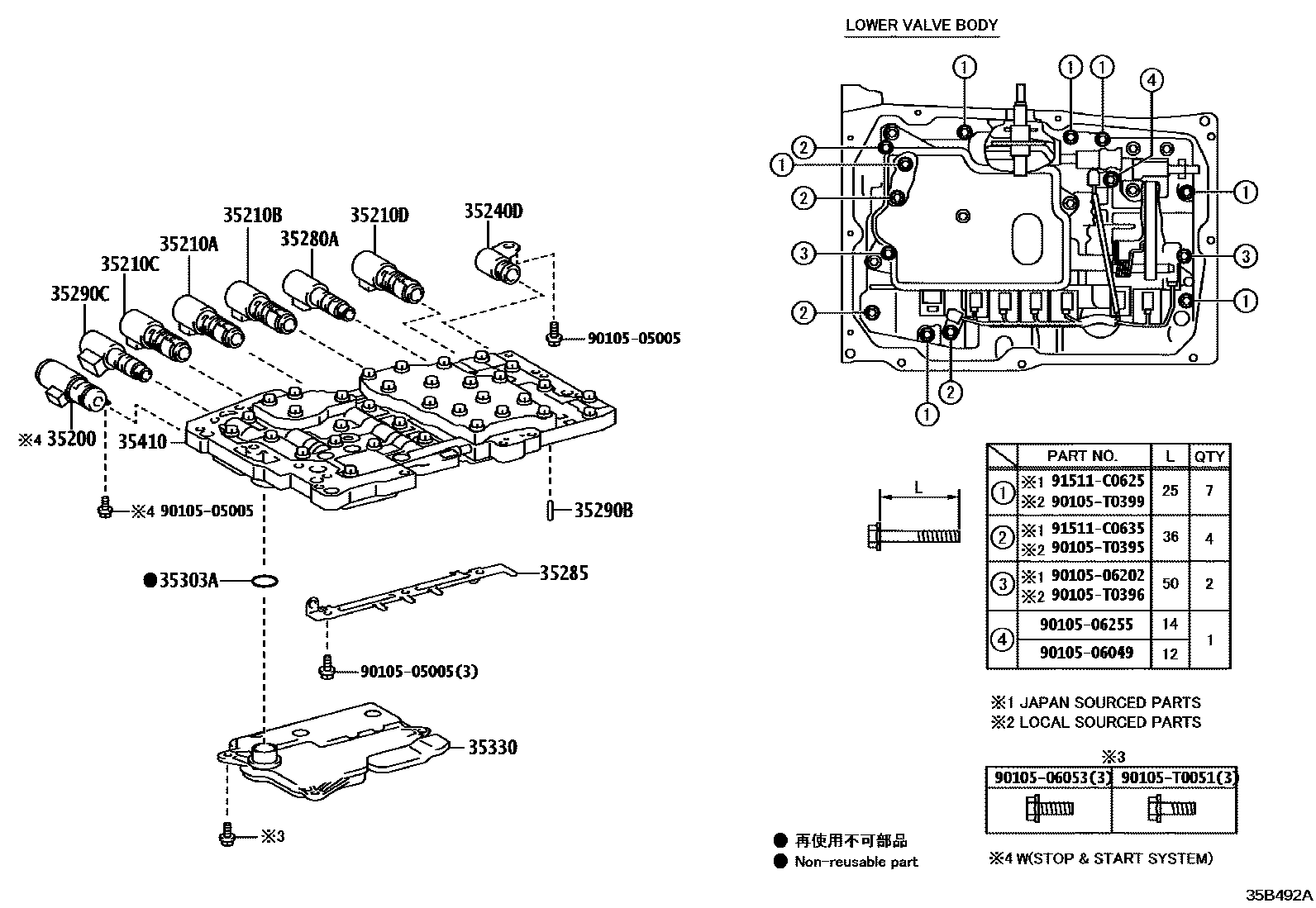

Parts diagram
35200PUMP ASSY, OIL, W/SOLENOID
main35200-71010i202405-202410
TYPE A:REFER 35-01
35210AVALVE, SOLENOID(SL1)
main35210-71010i202308-202407
TYPE B:REFER 35-01
main35210-71010i202308-202410
TYPE A:REFER 35-01
35210BVALVE, SOLENOID(SL3)
main35210-71010i202308-202407
TYPE B:REFER 35-01
main35210-71010i202308-202410
TYPE A:REFER 35-01
35210CVALVE, SOLENOID(SL2)
main35210-71010i202308-202407
TYPE B:REFER 35-01
main35210-71010i202308-202410
TYPE A:REFER 35-01
35210DVALVE, SOLENOID(SL4)
main35210-71010i202308-202407
TYPE B:REFER 35-01
main35210-71010i202308-202410
TYPE A:REFER 35-01
35240DVALVE, SOLENOID(SL)
main35240-71010i202308-202407
TYPE B:REFER 35-01
main35240-71010i202308-202410
TYPE A:REFER 35-01
35280AVALVE, SOLENOID(SLU)
main35280-0K010i202308-202407
(L),TYPE B:REF.35-01
main35280-71020i202308-202410
(J),TYPE A:REF.35-01
35285PLATE, SOLENOID LOCK
main35285-0K010i202308-202407
TYPE B:REFER 35-01
main35285-71010i202308-202410
TYPE A:REFER 35-01
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
main90250-03045i202308-202407
TYPE B:REFER 35-01
main90250-03045i202308-202410
TYPE A:REFER 35-01
35290CVALVE, SOLENOID(SLT)
main35290-0K010i202308-202407
(L),TYPE B:REF.35-01
main35290-71030i202308-202410
(J),TYPE A:REF.35-01
35303ARING, O (FOR OIL STRAINER)
main90301-27010i202308-202410
TYPE A:REFER 35-01
main90301-T0071i202308-202407
TYPE B:REFER 35-01
35330STRAINER ASSY, VALVE BODY OIL
main35330-0K010i202308-202407
TYPE B:REFER 35-01
main35330-71010i202308-202410
TYPE A:REFER 35-01
35410BODY ASSY, TRANSMISSION VALVE
main35410-0K030i202308-202401
TYPE B:REFER 35-01
sub35410-0K031
main35410-0K031i202402-202407
TYPE B:REFER 35-01
main35410-71102i202308-202310
TYPE A:REFER 35-01
sub35410-71103
main35410-71103i202311-202410
TYPE A:REFER 35-01
main35410-71113i202405-202410
TYPE A:REFER 35-01
9010505005
main90105-05005
9010506049
main90105-06049
9010506053
main90105-06053
9010506202
main90105-06202
9010506255
main90105-06255
90105T0051
main90105-T0051
90105T0395
main90105-T0395
90105T0396
main90105-T0396
90105T0399
main90105-T0399
91511C0625
main91511-C0625
91511C0635
main91511-C0635

24 parts on this diagram · 2 diagrams in section
