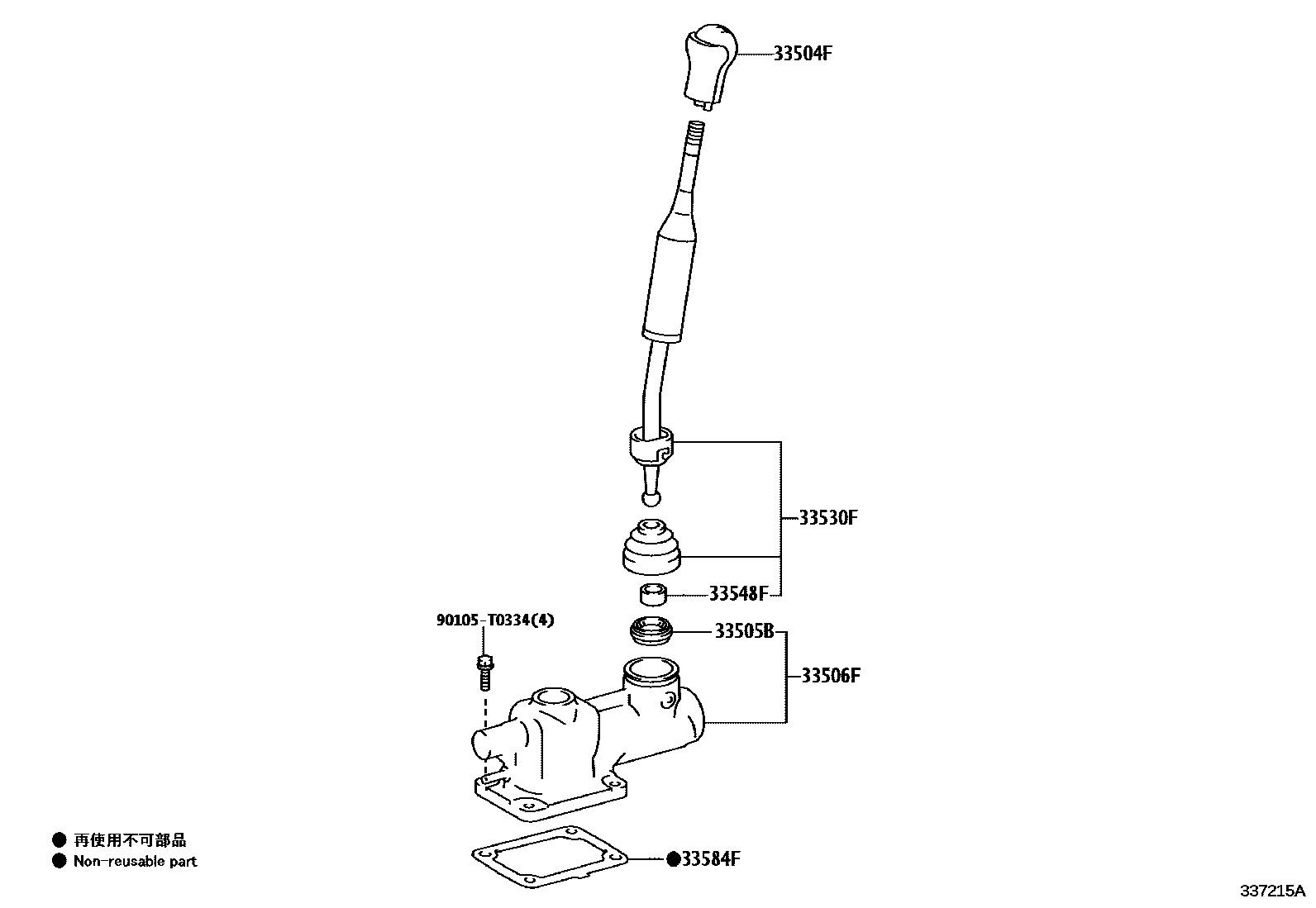

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
GR SPORT WIDE TREAD,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
33505BSEAT SUB-ASSY, SHIFT LEVER
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE A:REFER 33-01
90105T0334
main90105-T0334
7 parts on this diagram · 3 diagrams in section
