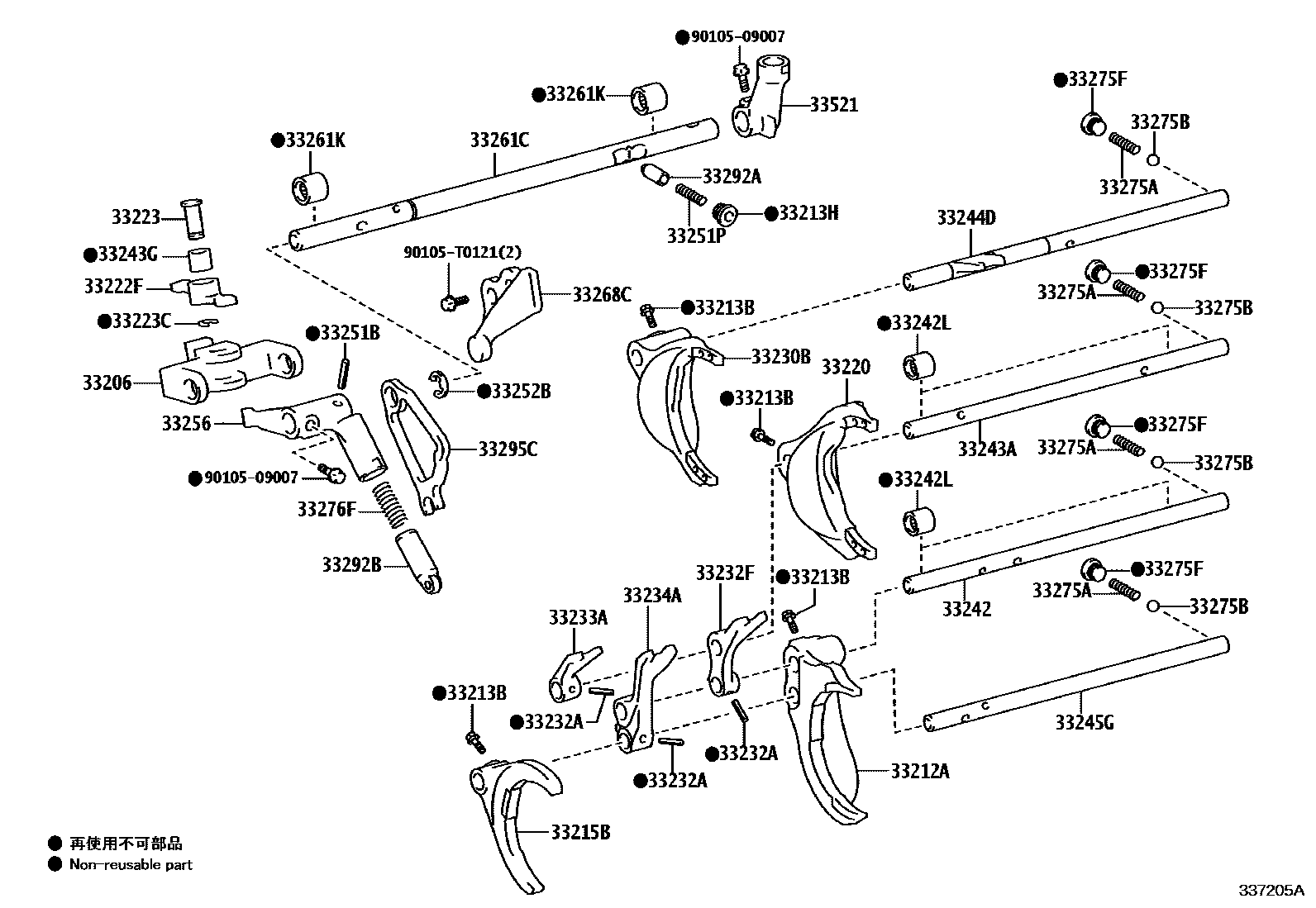

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33212AFORK, GEAR SHIFT, NO.1
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33213BBOLT(FOR SHIFT FORK SET)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33213HPLUG, W/HEAD STRAIGHT SCREW, NO.2
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33215BFORK, GEAR SHIFT, NO.4
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33220FORK ASSY, GEAR SHIFT, NO.2
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33222FARM, SHIFT
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33223PIVOT, SHIFT ARM
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33223CRING, SHAFT SNAP(FOR SHIFT ARM PIVOT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33230BFORK ASSY, GEAR SHIFT, NO.3
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33232FHEAD, GEAR SHIFT, NO.1
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33233AHEAD, GEAR SHIFT, NO.2
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33234AHEAD, GEAR SHIFT, NO.3
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33242SHAFT, GEAR SHIFT FORK, NO.1
TYPE A:REFER 33-01
33242LBEARING (FOR SHIFT FORK SHAFT)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33243GBEARING ( FOR SHIFT FORK SHAFT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33244DSHAFT, GEAR SHIFT FORK, NO.3
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33245GSHAFT, GEAR SHIFT FORK, NO.4
TYPE A:REFER 33-01
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5,TYPE A:REFER 33-01
L=25.5,TYPE B:REFER 33-01
33251PSPRING (FOR SHIFT & SELECT LEVER)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33252BRING, E (FOR SHIFT INNER LEVER)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33256LEVER, SELECT INNER
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33261CSHAFT, SHIFT & SELECT LEVER
TYPE A:REFER 33-01
TYPE A:REFER 33-01
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33268CSTOPPER, SHIFT INTERLOCK PLATE
TYPE B:REFER 33-01
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=15.35,TYPE A:REFER 33-01
L=15.35,TYPE B:REFER 33-01
L=15.35,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33275BBALL, SHAFT DETENT
TYPE A:SEE 33-01,(J)
TYPE B:REFER 33-01
TYPE A:SEE 33-01,(L)
33275FPLUG (FOR SHIFT DETENT BALL)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33292APIN, LOCK BALL
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33292BPIN, LOCK BALL NO.2
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33295CCAM, SHIFT & SELECT
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33521HOUSING, SHIFT LEVER
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
9010509007
main90105-09007
90105T0121
main90105-T0121
37 parts on this diagram · 2 diagrams in section
