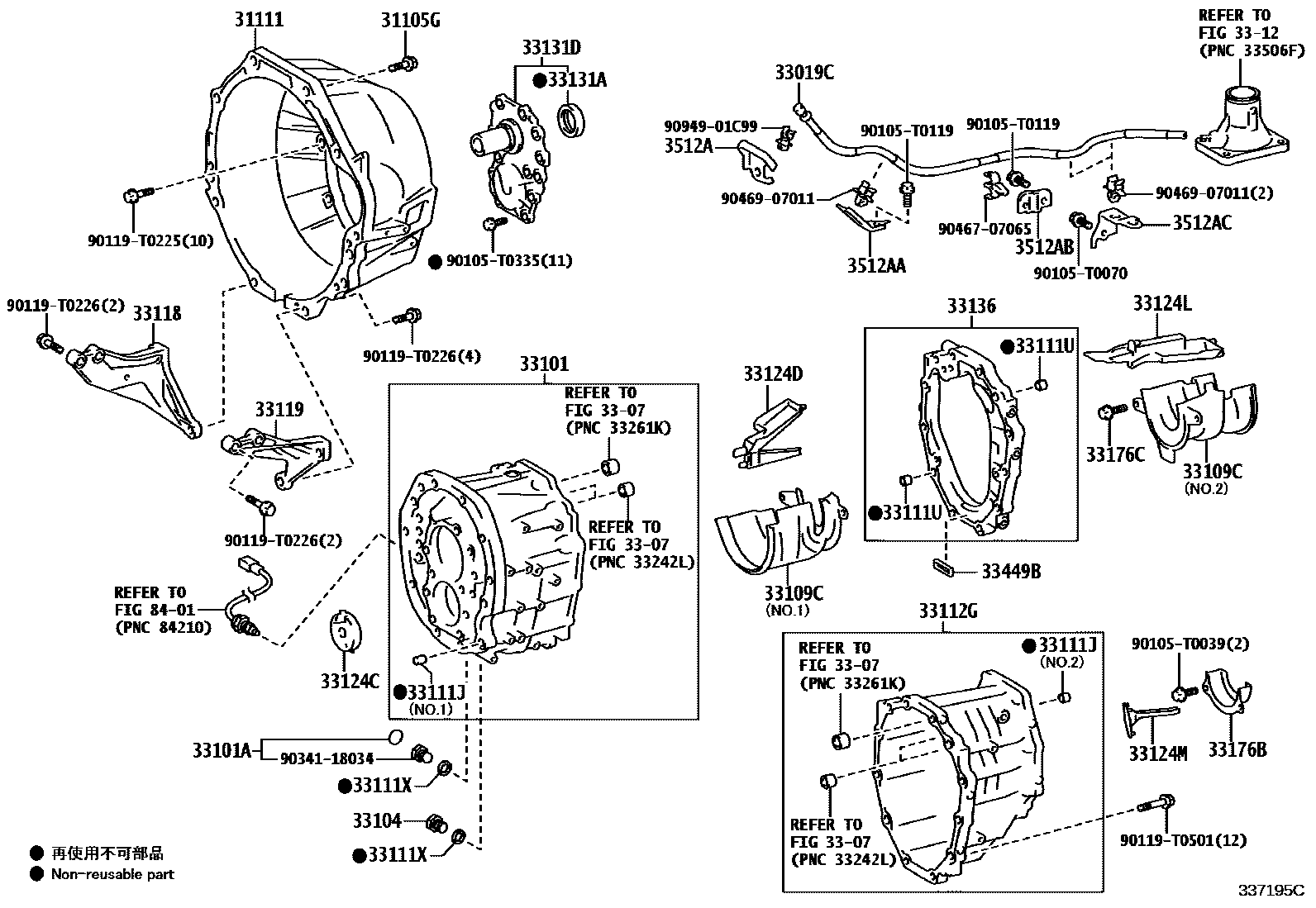

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX50-30
31111HOUSING, CLUTCH
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33019CBREATHER SUB-ASSY, TRANSMISSION
3307
33101CASE SUB-ASSY, MANUAL TRANSMISSION
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
T/P B:SEE 33-01,NO.2
T/P A:SEE 33-01,NO.2
T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2
33104PLUG SUB-ASSY, DRAIN(MTM)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
T/P A:SEE 33-01,NO.1
T/P A:SEE 33-01,NO.2
T/P B:SEE 33-01,NO.1
T/P B:SEE 33-01,NO.2
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11,T/PA:SEE33-01NO.2(J),T/P B:SEE 33-01,NO.2
L=11,OD=11,T/PA:SEE33-01NO.2(J)
L=11,OD=11,T/P B:SEE 33-01,NO.2
L=16,OD=12,TYPE A:REFER 33-01
L=16,OD=12,T/P B:SEE 33-01,NO.1
L=11,OD=11,T/PA:SEE33-01NO.2(L)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=14,OD=15,TYPE A:SEE 33-01,(J)
L=14,OD=15,TYPE B:REFER 33-01
L=14,OD=15,TYPE B:REFER 33-01,TYPE A:SEE 33-01,(J)
L=14,OD=15,TYPE A:SEE 33-01,(L)
33111XGASKET, TRANSMISSION CASE PLUG
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33112GCASE, TRANSMISSION, REAR
TYPE A:REFER 33-01
RUSSIA&CUSTOM UNION SPEC&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD)&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER)),TYPE A:REFER 33-01
UKRAINE SPEC (EURO 6 REGULATION)&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC& LSD)&DATA COMMUNICATION MODULE-WITHOUT,TYPE A:REFER 33-01
ISRAEL EURO6 FOR 12 E-PF&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01
TURKEY EURO6 FOR 12 E-PF&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01
RUSSIA&CUSTOM UNION SPEC&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD)&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER)),TYPE B:REFER 33-01
TYPE B:REFER 33-01
UKRAINE SPEC (EURO 6 REGULATION)&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC& LSD)&DATA COMMUNICATION MODULE-WITHOUT,TYPE B:REFER 33-01
ISRAEL EURO6 FOR 12 E-PF&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01
TURKEY EURO6 FOR 12 E-PF&CRUISE CONTROL-WITH&VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE B:REFER 33-01
TYPE A:REFER 33-01
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
3312
33124CPIPE, OIL RECEIVER, NO.1(MTM)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33124DPIPE, OIL RECEIVER, NO.2(MTM)
TYPE B:REFER 33-01
33124LPIPE, OIL RECEIVER, N0.3(MTM)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33124MPIPE, OIL RECEIVER, N0.4(MTM)
TYPE A:REFER 33-01
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33131DRETAINER, BEARING, FRONT
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33136PLATE, TRANSMISSION INTERMEDIATE
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33176BSEPARATOR, TRANSMISSION OIL(MTM)
TYPE A:REFER 33-01
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33449BMAGNET, TRANSMISSION
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01
3512ABRACKET, TRANSMISSION BREATHER, NO.1
3512AABRACKET, TRANSMISSION BREATHER, NO.2
3512ABBRACKET, TRANSMISSION BREATHER, NO.3
3512ACBRACKET, TRANSMISSION BREATHER, NO.4
8401
90105T0039
main90105-T0039
90105T0070
main90105-T0070
90105T0119
main90105-T0119
90105T0335
main90105-T0335
90119T0225
main90119-T0225
90119T0226
main90119-T0226
90119T0501
main90119-T0501
9034118034
main90341-18034
9046707065
main90467-07065
9046907011
main90469-07011
9094901C99
main90949-01C99
41 parts on this diagram · 2 diagrams in section
