INJECTION NOZZLE

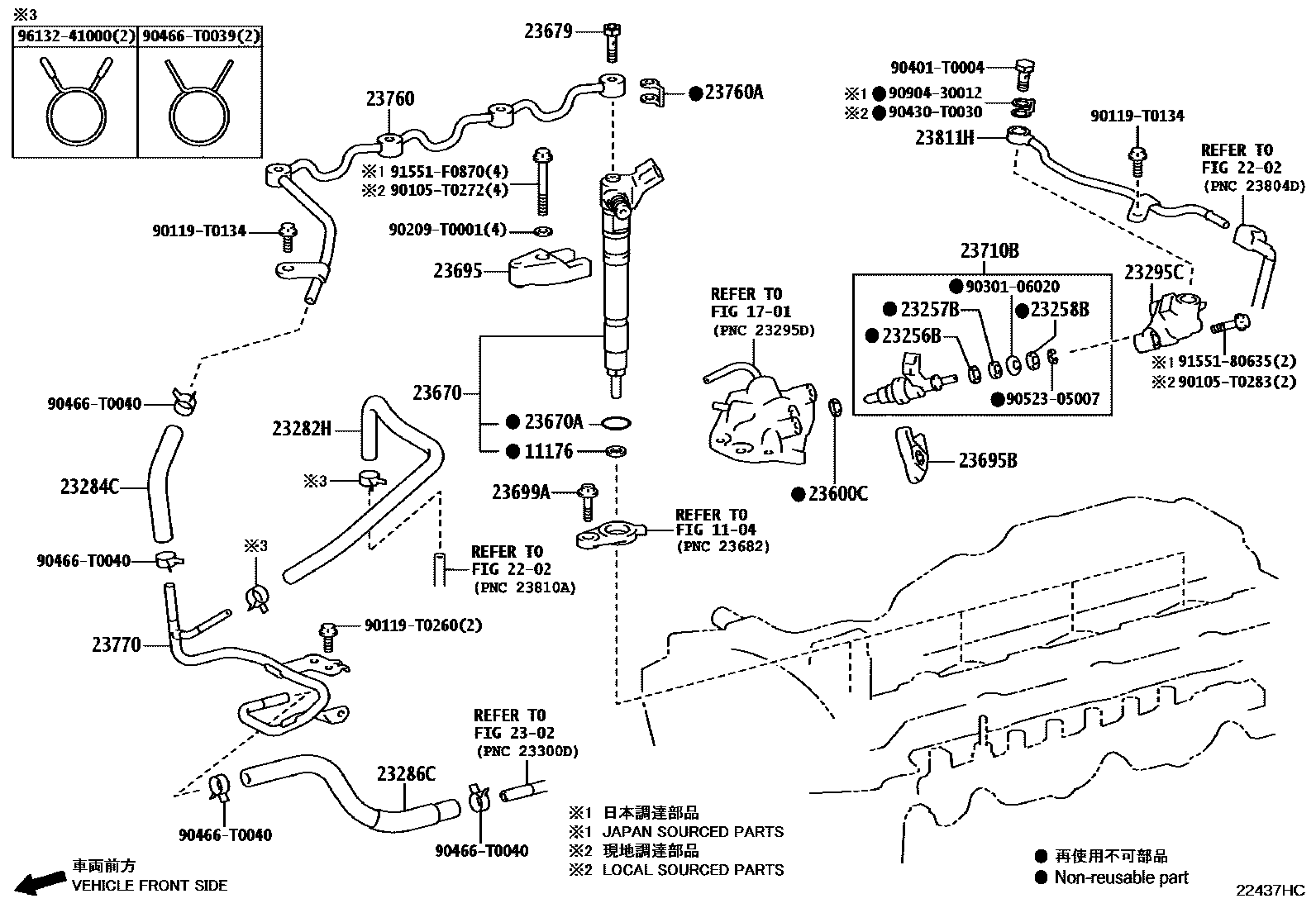

Parts diagram
1104
11176SEAT, INJECTION NOZZLE
main11176-0E010i202308-202410
(L)
main11176-33010i202308-202410
(J)
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
main23256-74010i202308-202410
23257BRING, FUEL INJECTOR BACK-UP, NO.2
main23257-74010i202308-202410
23258BRING, FUEL INJECTOR BACK-UP, NO.3
main23258-28011i202308-202410
23282HHOSE, FUEL, NO.4
main23282-0E012i202308-202407
THA SOURCED PARTS
main23282-0E022i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23282-0E022i202308-202407
IND SOURCED PARTS
main23282-0E022i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23282-0E022i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23282-0E022i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23282-0E022i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23282-0E030i202308-202410
THA SOURCED PARTS
main23282-0E030i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),THA SOURCED PARTS
main23282-0E030i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main23282-0E030i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
23284CHOSE, FUEL, NO.5
main23284-0E010i202308-202410
THA SOURCED PARTS
main23284-0E020i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23284-0E020i202308-202407
IND SOURCED PARTS
main23284-0E020i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23284-0E020i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23284-0E020i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23284-0E020i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
23286CHOSE, FUEL, NO.6
main23286-0E011i202308-202410
THA SOURCED PARTS
main23286-0E020i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23286-0E020i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23286-0E020i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23286-0E020i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23286-0E020i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23286-0E020i202308-202407
IND SOURCED PARTS
23295CHOLDER, INJECTOR
main23296-0E010i202308-202410
23600CGASKET(FOR HOLDER & NOZZLE SET)
main90430-T0019i202308-202407
THA SOURCED PARTS
main90430-T0019i202308-202410
main90430-T0029i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main90430-T0029i202308-202407
IND SOURCED PARTS
main90430-T0029i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main90430-T0029i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main90430-T0029i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main90430-T0029i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
23670INJECTOR ASSY
main23670-09540i202308-202410
THA SOURCED PARTS
main23670-09560i202308-202410
23670ARING, O(FOR INJECTOR ASSY)
main96721-19017i202308-202410
23679SCREW, INJECTOR FOLLOW
main90401-T0007i202308-202410
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-0E010i202308-202410
(L)
main23695-11010i202308-202410
(J)
23695BCLAMP, NOZZLE HOLDER, NO.2
main23695-0E020i202308-202410
(L)
main23695-28010i202308-202410
(J)
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-0E010i202308-202410
THA SOURCED PARTS
main23699-0E020i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23699-0E020i202308-202407
IND SOURCED PARTS
main23699-0E020i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23699-0E020i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23699-0E020i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23699-0E020i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
main23710-11010i202308-202410
23760PIPE ASSY, NOZZLE LEAKAGE
main23760-0E011i202308-202410
THA SOURCED PARTS
main23760-0E020i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23760-0E020i202308-202407
IND SOURCED PARTS
main23760-0E020i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23760-0E020i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23760-0E020i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23760-0E020i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
23760AGASKET
main90430-T0017i202308-202410
(L)
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
main23770-0E011i202308-202410
THA SOURCED PARTS
main23770-0E021i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23770-0E021i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23770-0E021i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23770-0E021i202308-202407
IND SOURCED PARTS
main23770-0E021i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23770-0E021i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23770-0E030i202406-202410
THA SOURCED PARTS
23811HPIPE, FUEL, NO.1
main23811-08010i202308-202407
THA SOURCED PARTS
main23811-08010i202308-202410
main23811-08020i202308-202407
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23811-08020i202308-202407
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23811-08020i202308-202407
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
main23811-08020i202308-202407
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23811-08020i202308-202407
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main23811-08020i202308-202407
IND SOURCED PARTS
90105T0272
main90105-T0272
90105T0283
main90105-T0283
90119T0134
main90119-T0134
90119T0260
main90119-T0260
90209T0001
main90209-T0001
9030106020
main90301-06020
90401T0004
main90401-T0004
90430T0030
main90430-T0030
90466T0039
main90466-T0039
90466T0040
main90466-T0040
9052305007
main90523-05007
9090430012
main90904-30012
9155180635
main91551-80635
91551F0870
main91551-F0870
9613241000
main96132-41000

39 parts on this diagram · 1 diagram in section
