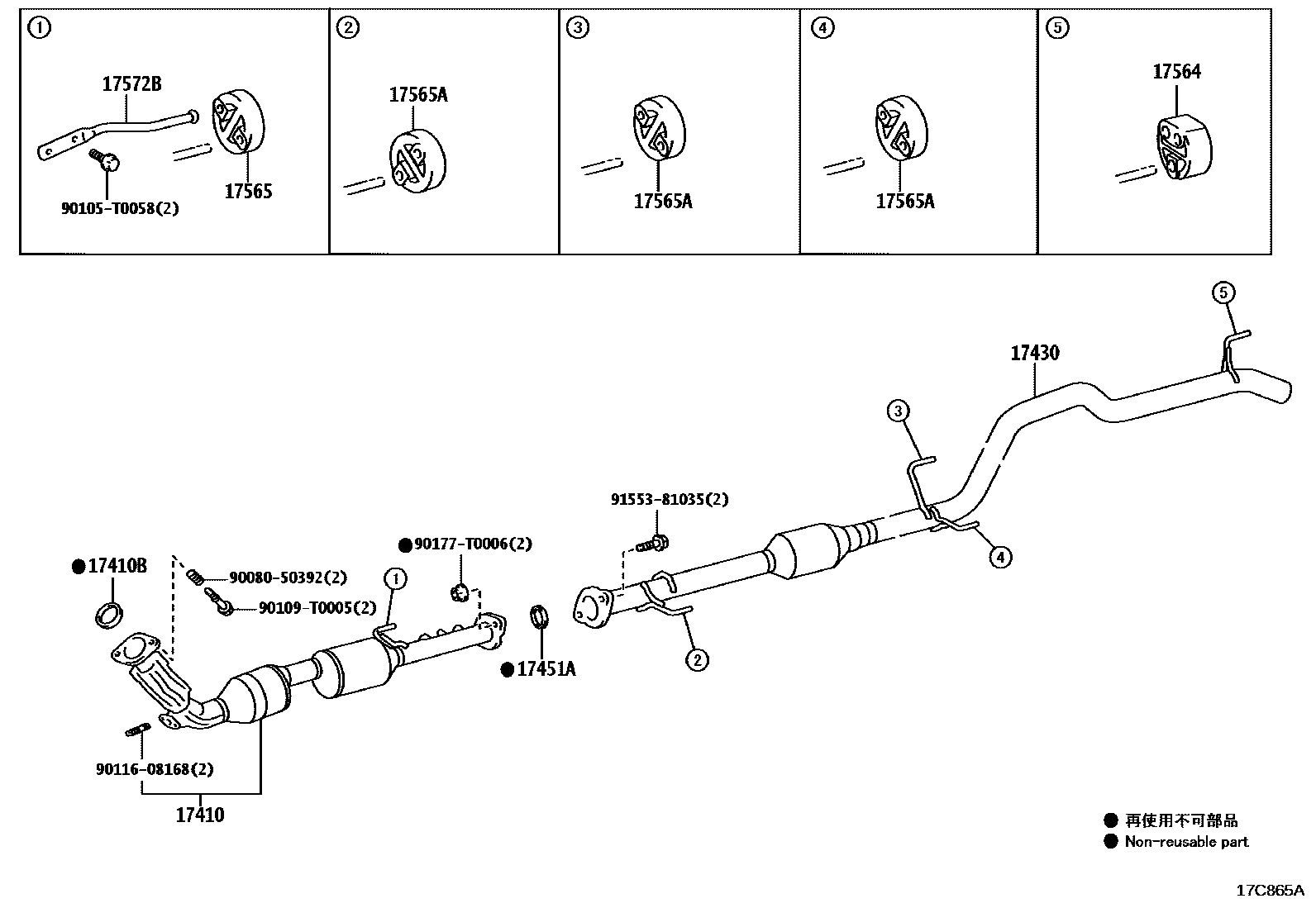

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
*114=*102,ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
*114=*102,TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
*114=*102
*114=*102,UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
*114=*102,ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6DWITH(ON BOARD DIAGNOSIS)
*114=*102,TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6DWITH(ON BOARD DIAGNOSIS)
*114=TOYOTA/ZC3ZD6/Y
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS)
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17451AGASKET, EXHAUST PIPE, NO.2
UKRAINE SPEC (EURO 6 REGULATION)
ISRAEL EURO6 FOR 12 E-PF
TURKEY EURO6 FOR 12 E-PF
ISRAEL SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)
RUSSIA&CUSTOM UNION SPEC
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
14 parts on this diagram · 2 diagrams in section
