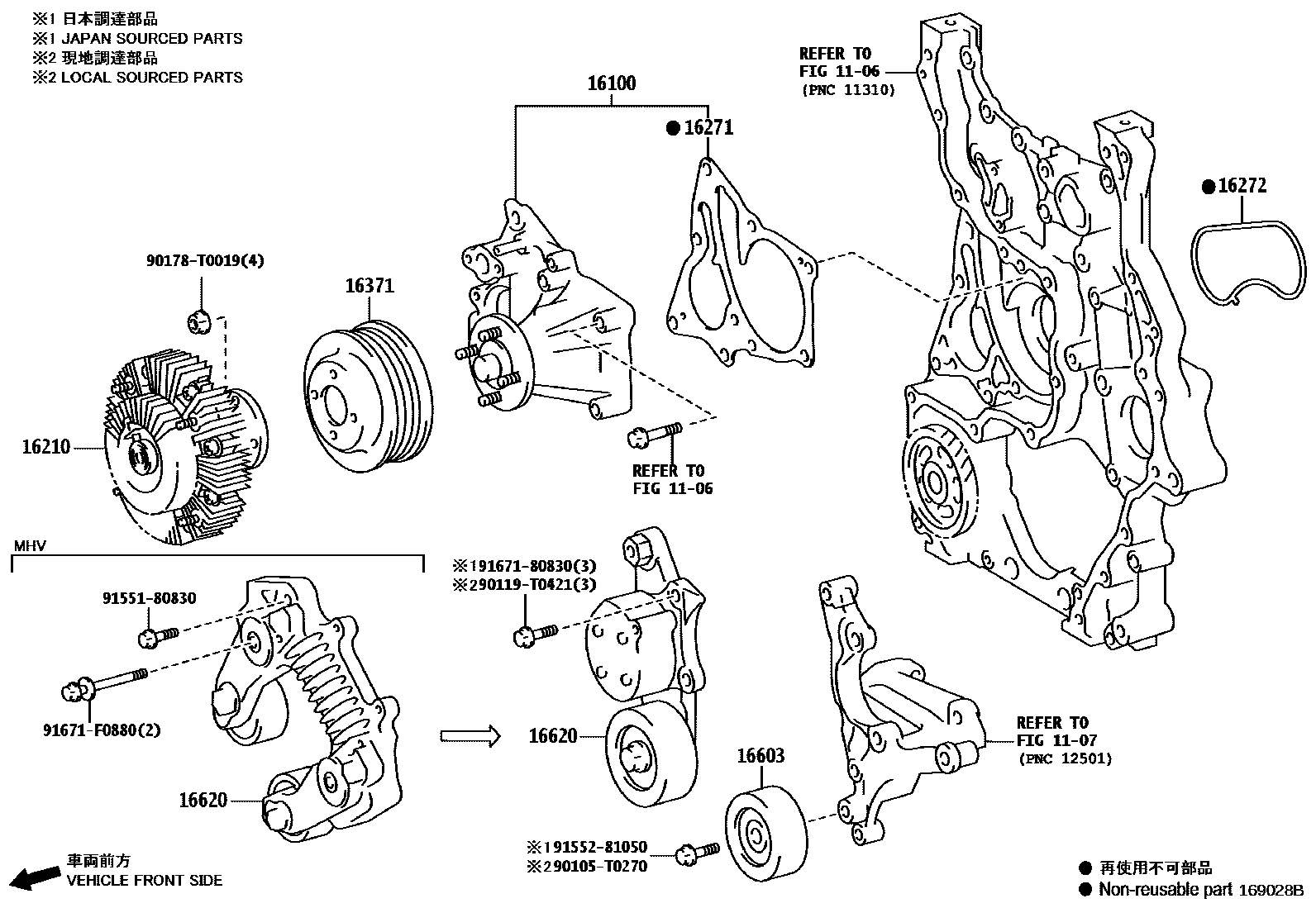

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
16210COUPLING ASSY, FLUID
16271GASKET, WATER PUMP
THA SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
16371PULLEY, FAN
THA SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
16603PULLEY SUB-ASSY, IDLER, NO.1
THA, NO PAINTED
THA, BLACK PAINTED
16620TENSIONER ASSY, V-RIBBED BELT
(L)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155180830
main91551-80830
9155281050
main91552-81050
9167180830
main91671-80830
91671F0880
main91671-F0880
16 parts on this diagram · 1 diagram in section
