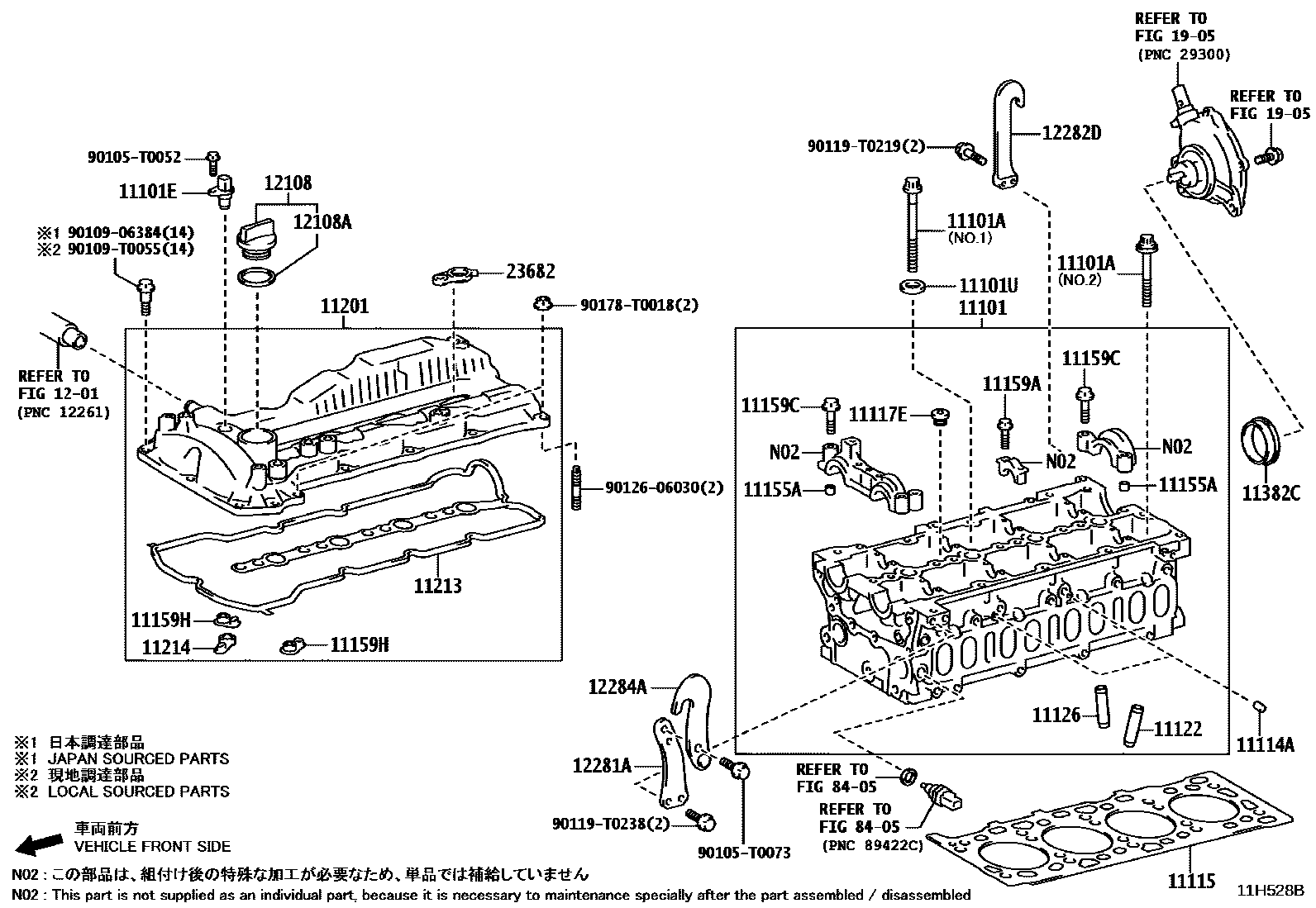

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS),IND SOURCED PARTS
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11101ABOLT(FOR CYLINDER HEAD SET)
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
(L)
11114APIN, STRAIGHT
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
MARK A,(L)
MARK A
MARK B
MARK B,(L)
MARK C,(L)
MARK C
MARK D,(L)
MARK D
MARK E,(L)
MARK E
MARK A,(J)
MARK B,(J)
MARK C,(J)
MARK D,(J)
MARK E,(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(L)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
STD
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
STD
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
(L)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
11213GASKET, CYLINDER HEAD COVER
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
12108AGASKET(FOR OIL FILLER CAP)
(L)
12281AHANGER, ENGINE, NO.1
THA SOURCED PARTS
ISRAEL EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
TURKEY EURO6 FOR 12 E-PF&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ONBOARD DIAGNOSIS)
12282DHANGER, ENGINE, NO.2
(L)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
1905
23682GASKET, NOZZLE HOLDER
(L)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
9012606030
main90126-06030
90178T0018
main90178-T0018
34 parts on this diagram · 2 diagrams in section
