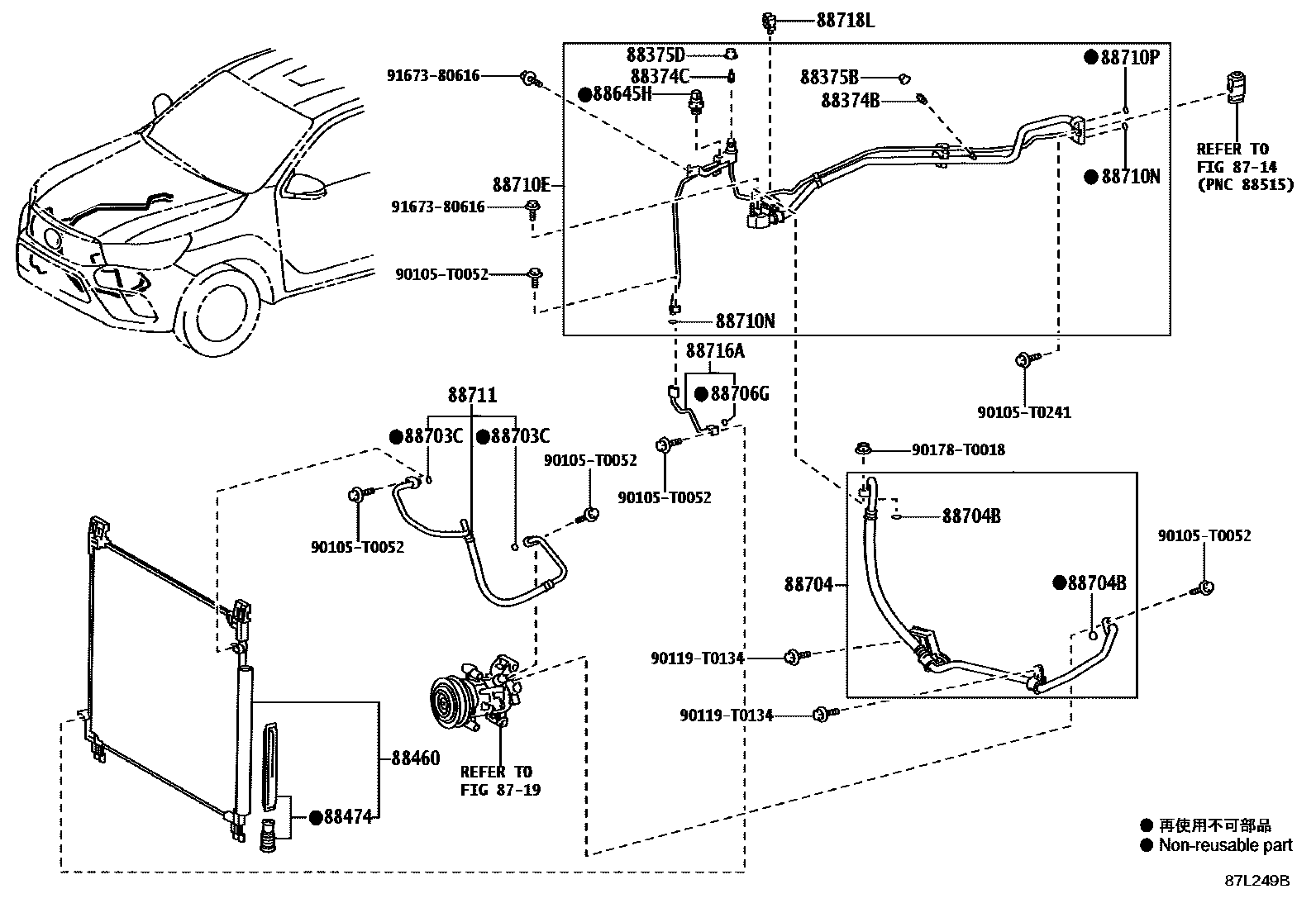

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
88474DRYER, COOLER
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
88645HSWITCH, PRESSURE NO.1
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
ID=10.2,OD=15.0
ID=10.2,OD=15.0,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ID=10.8,OD=15.6,EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ID=6.7,OD=10.3
ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
ID=6.7,OD=10.3
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
88716APIPE, COOLER REFRIGERANT LIQUID, A
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
88718LCLAMP, PIPING
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
90178T0018
main90178-T0018
9167380616
main91673-80616
24 parts on this diagram · 3 diagrams in section
