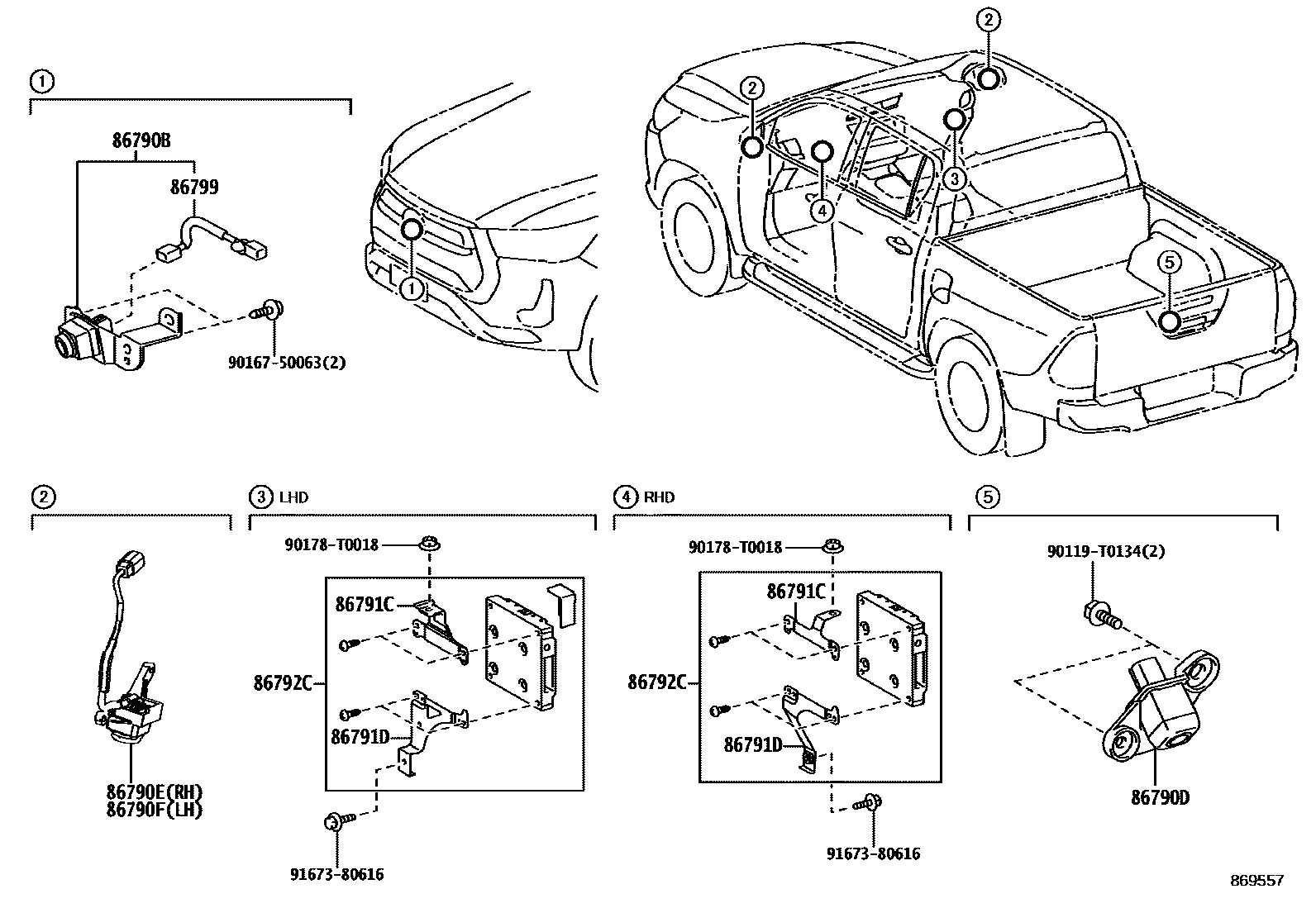

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main86790-0K050iGUN12#..H¥24,500202208-202401

sub86790-0K051¥22,200

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

86792CCOMPUTER, PARKING ASSIST

86799WIRE, TELEVISION CAMERA

main86799-0K040¥360

main86799-0K060¥360

90119T0134

main90119-T0134¥90

9016750063

main90167-50063¥60

90178T0018

main90178-T0018¥70

9167380616

main91673-80616¥60

12 parts on this diagram · 1 diagram in section
