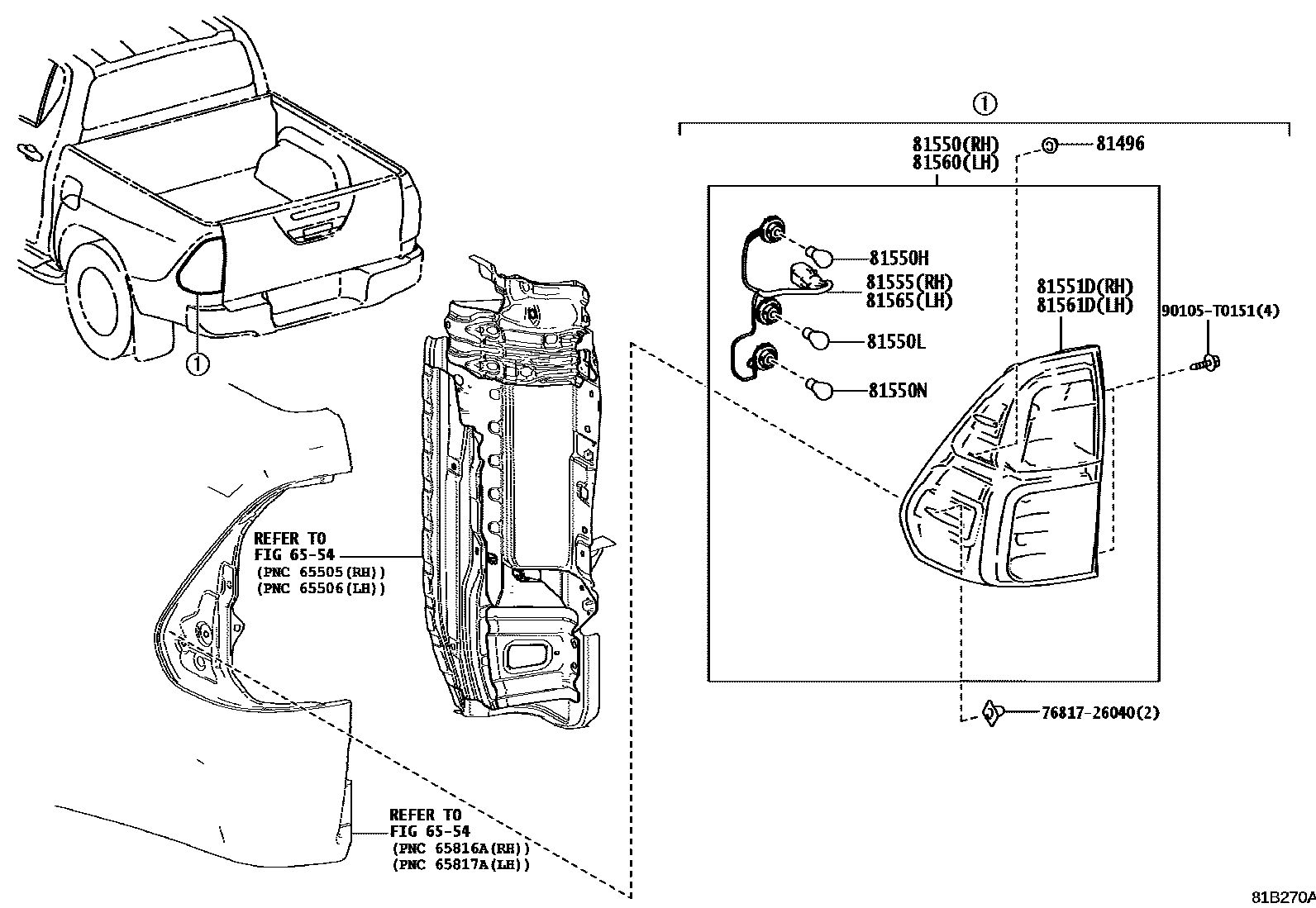

REAR COMBINATION LAMP

0001 1REAR TAIL & STOP LAMP = BULB 0002 1REAR TAIL & STOP LAMP = LED T0003 1

6554

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN12#,135..SAP..CBU202208-202401

(L)

main81496-52020×2iGUN12#,135..SAP..CBU202208-202401

(J)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K281supersedes 81550-0K730iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K291supersedes 81550-0K750iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81550-0K360iGUN125,135..IV3202301-202401

81550HBULB, TAIL & STOP LAMP

main90981-13094×2iGUN12#,135..THP..S202208-202307

12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-TD004×2iGUN125,135..IV3202301-202401

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028×2iGUN12#,135..THP202208-202307

12V 21W,AMBER

main90981-TD003×2iGUN125,135..IV3202301-202401

12V 21W

81550NBULB, BACK UP LAMP

main90981-13093×2iGUN12#,135..THP..S202208-202307

12V 21W,HEADLAMP-4-BULB HALOGEN MULTI

main90981-TD003×2iGUN125,135..IV3202301-202401

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K360iGUN125,135..IV3202301-202401

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K281supersedes 81551-0K730iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81551-0K291supersedes 81551-0K750iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K281supersedes 81555-0K480iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K291supersedes 81555-0K500iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K281supersedes 81560-0K730iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K291supersedes 81560-0K740iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81560-0K400iGUN125,135..IV3202301-202401

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K400iGUN125,135..IV3202301-202401

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K281supersedes 81561-0K730iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81561-0K291supersedes 81561-0K740iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K281supersedes 81555-0K480iGUN12#..RHD..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

main81555-0K291supersedes 81555-0K500iGUN12#..LHD..SAP..H202301-202401

HEADLAMP-4-BULB HALOGEN MULTI

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

90105T0151

main90105-T0151

15 parts on this diagram · 3 diagrams in section
