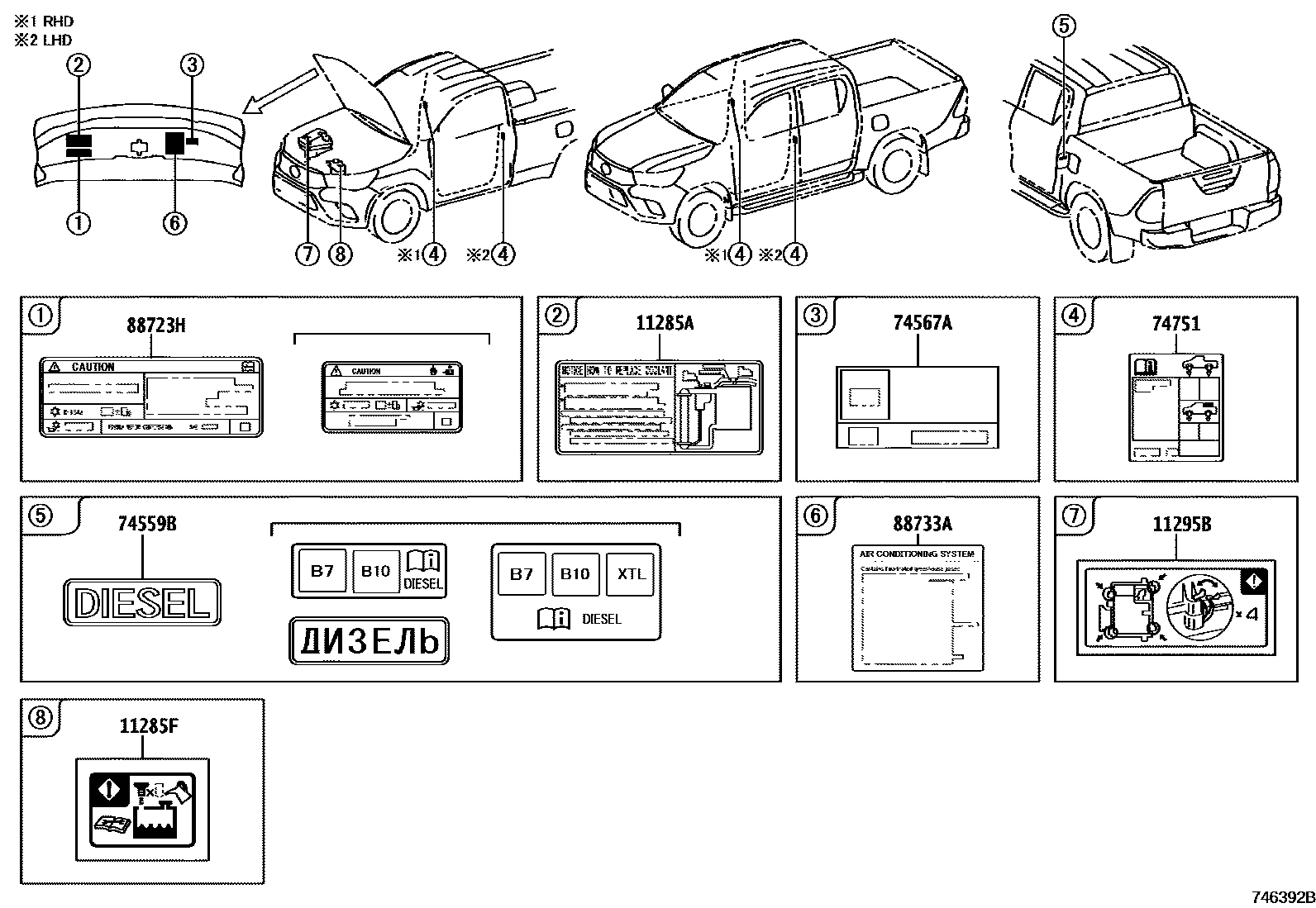

CAUTION PLATE

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E010i1GDFTV,2GDFTV..GUN12#,135..THP202208-202401

11285FLABEL, COOLANT SYSTEM CAUTION

main11285-0E030i2GDFTV..GUN125,135;1GDFTV..GUN126..SAP¥180202208-202401

MADE IN THAILAND

main11285-0E040i2GDFTV..GUN125,135;1GDFTV..GUN126..SAP202208-202401

MADE IN SOUTH AFRICA

11295BLABEL, ENGINE SERVICE NOTICE, NO.1

main11295-0E010i1GDFTV,2GDFTV..GUN12#,135..SAP¥170202301-202401

74559BLABEL, FUEL INFORMATION

main74559-60020iGUN126..THP¥110202208-202307

RUSSIA&CUSTOM UNION SPEC

main74559-71020iGUN126¥120202208-202301

ISRAEL SPEC (EURO 6 REGULATION)

main74559-71020iGUN126¥120202208-202301

TURKEY SPEC (EURO 6 REGULATION)

main74559-71030iGUN125,135..THP202301-202307

TURKEY SPEC (EURO 6 REGULATION)

main74559-71030iGUN125,135..THP202301-202307

ISRAEL SPEC (EURO 6 REGULATION)

main74559-71030iGUN12#,135..SAP202301-202401

74567APLATE, E.C.E APPROVED NUMBER

main74567-25041iGUN126..THP¥110202208-202401

main74567-60380iGUN126..6F¥110202301-202401

main74567-71040iGUN125,135..THP¥110202208-202401

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0KN40iGUN125,135..SCB202301-202401

main42661-0KN70iGUN12#,135..(DCB,XTR)..SAP202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL

main42661-0KS00iGUN125..THP..S;GUN126,135..THP202208-202307

main42661-0KS30iGUN125..THP..S;GUN126,135..THP202208-202307

TIRE & DISC WHEEL-265/60R18, ALUMINUM

main42661-0KS30iGUN126..THP..H202208-202307

TIRE & DISC WHEEL-265/60R18 ALUMINUM

88723HLABEL, COOLER SERVICE CAUTION

main88723-0K261iGUN12#,135..THP¥140202208-202307

main88723-0K450iGUN12#,135..SAP202301-202401

88733ALABEL, COOLER SERVICE INFORMATION

main88733-0K010iGUN12#,135..THP202208-202307

8 parts on this diagram · 2 diagrams in section
