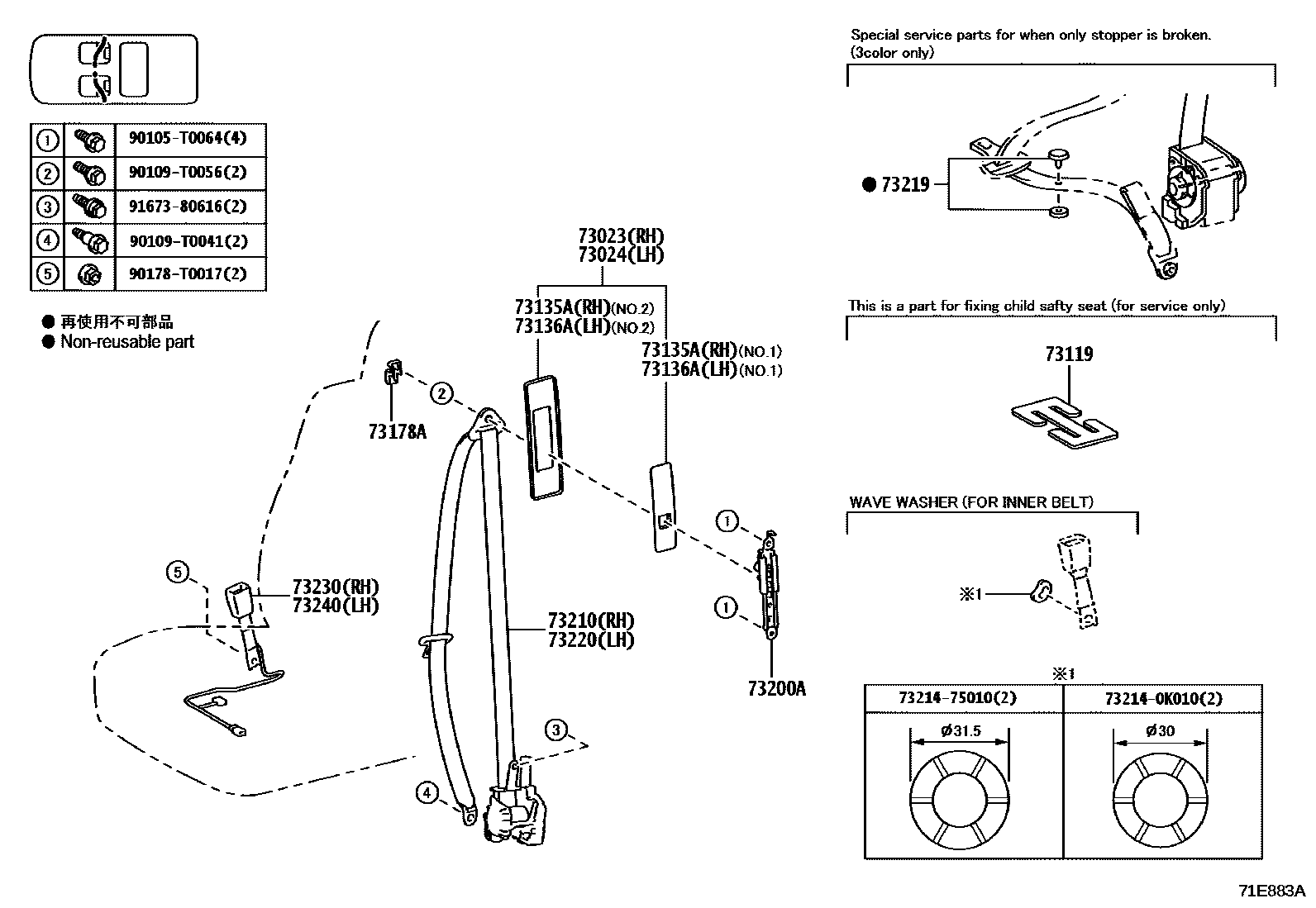

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1FRONT SEAT 0004 1REAR SEAT 0005 1

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-KK010-B0iGUN12#..DCB..SAP..H202208-202401

LT.GRAY,TRIM2#

main73023-KK010-B0iGUN125,135..DCB..SAP..(L,S)202208-202401

LT.GRAY,TRIM20

main73023-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25

main73023-KK010-C0iGUN126..THP..H202208-202307

BLACK,TRIM21,25

main73023-KK010-C0iGUN126..THP..H202208-202401

BLACK,TRIM21

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-KK010-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM2#

main73023-KK010-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM20

main73023-KK010-C0iGUN125..THP..H202208-202401

BLACK,TRIM21

main73023-KK010-C0iGUN126..THP..H202208-202307

BLACK,TRIM21,25

main73023-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGUN12#,135..SAP202208-202401

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-KK010-B0iGUN125,135..DCB..SAP..(L,S)202301-202401

LT.GRAY,TRIM2#

main73023-KK010-B0iGUN12#..DCB..SAP..H202301-202401

LT.GRAY,TRIM20

main73023-KK010-C0iGUN126..DCB..6F;GUN125..DCB..SAP..H202301-202401

BLACK,TRIM21

main73023-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25

main73135-KK010-B0iGUN12#,135..THP..S202208-202401

LT.GRAY,TRIM2#,NO.1:REFER ILLUST.

main73135-KK010-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM20,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN126..DCB..6F;GUN125..DCB..SAP..H202208-202401

BLACK,TRIM21,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN125..THP..H202208-202307

BLACK,TRIM21,25,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM20,NO.2:REFER ILLUST.

main73135-KK020-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM2#,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN126..DCB..6F;GUN125..DCB..SAP..H202208-202401

BLACK,TRIM21,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN126..THP..H202208-202307

BLACK,TRIM21,25,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25,NO.2:REFER ILLUST.

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-KK010-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM2#,NO.1:REFER ILLUST.

main73135-KK010-B0iGUN12#,135..THP..S202208-202401

LT.GRAY,TRIM20,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN126..THP..H202208-202401

BLACK,TRIM21,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN125..THP..H202208-202307

BLACK,TRIM21,25,NO.1:REFER ILLUST.

main73135-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN125,135..DCB..SAP..(L,S)202208-202401

LT.GRAY,TRIM20,NO.2:REFER ILLUST.

main73135-KK020-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM2#,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN125..THP..H202208-202401

BLACK,TRIM21,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25,NO.2:REFER ILLUST.

main73135-KK020-C0iGUN125..THP..H202208-202307

BLACK,TRIM21,25,NO.2:REFER ILLUST.

73178ACAP, SEAT BELT ANCHOR COVER

main73178-KK010-B0iGUN12#,135..THP..S202208-202401

LT.GRAY,TRIM20

main73178-KK010-B0iGUN12#..THP..H202208-202401

LT.GRAY,TRIM2#

main73178-KK010-C0iGUN126..DCB..6F;GUN125..DCB..SAP..H202208-202401

BLACK,TRIM21

main73178-KK010-C0iGUN126..THP..H202208-202307

BLACK,TRIM21,25

main73178-KK010-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25

main73178-KK020-B0iGUN125,135..(SCB,XTR)..(L,S)202301-202401

LT.GRAY,TRIM20

main73178-KK020-B0iGUN12#..XTR..H202301-202401

LT.GRAY,TRIM2#

main73178-KK020-C0iGUN12#..XTR..H202301-202401

BLACK,TRIM21

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D051-B2iGUN125,135..DCB..SAP..(L,S)202208-202401

LT.GRAY,TRIM2#

main73200-0D051-B2iGUN12#..THP..H202208-202401

LT.GRAY,TRIM20

main73200-0D051-C0iGUN125..THP..H202208-202307

BLACK,TRIM21,25

main73200-0D051-C0iGUN126..THP..H202208-202401

BLACK,TRIM21

main73200-0D051-C0iGUN126..DCB..SAP..6FC202301-202401

BLACK,TRIM21,23,25

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0K821-C0iGUN12#..XTR..H202301-202401

BLACK,TRIM2#

main73210-0K821-C0iGUN12#..XTR..H202301-202401

BLACK,TRIM20

main73210-0K821-C1iGUN12#..XTR..H202301-202401

BLACK,TRIM21

main73210-0K840-C0iGUN12#..THP..H202208-202307

BLACK/GRAY,TRIM20

main73210-0K840-C0iGUN12#,135..THP..S202208-202307

BLACK/GRAY,TRIM2#

main73210-0K840-C1iGUN12#..THP..H202208-202307

BLACK/BLACK,TRIM21

main73210-0K840-D0iGUN126..THP..H202301-202307

RED/BLACK,TRIM25

main73210-0K861-C0iGUN125,135..(DCB,SCB)..SAP..(L,S)202301-202401

BLACK/GRAY,TRIM20

main73210-0K861-C0iGUN12#..DCB..SAP..H202301-202401

BLACK/GRAY,TRIM2#

main73210-0K861-C1iGUN126..DCB..SAP..6FC202301-202401

BLACK/BLACK,TRIM21,23

main73210-0K861-C1iGUN126..DCB..SAP..6FC202301-202401

BLACK/BLACK,TRIM21

73219STOPPER, TONGUE PLATE

main73219-33010iGUN12#,135..THP202208-202401

BLACK

main73219-33020iGUN12#,135..THP202208-202401

GRAY

main73219-33030iGUN12#,135..THP202208-202401

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0K531-C0iGUN125..XTR..S202301-202401

BLACK,TRIM20

main73220-0K531-C0iGUN12#..XTR..H202301-202401

BLACK,TRIM2#

main73220-0K531-C1iGUN12#..XTR..H202301-202401

BLACK,TRIM21

main73220-0K550-C0iGUN12#..THP..H202208-202307

BLACK/GRAY,TRIM2#

main73220-0K550-C0iGUN12#,135..THP..S202208-202307

BLACK/GRAY,TRIM20

main73220-0K550-C1iGUN12#..THP..H202208-202307

BLACK/BLACK,TRIM21

main73220-0K550-D0iGUN126..THP..H202301-202307

RED/BLACK,TRIM25

main73220-0K571-C0iGUN12#..DCB..SAP..H202301-202401

BLACK/GRAY,TRIM2#

main73220-0K571-C0iGUN12#..DCB..SAP..H202301-202401

BLACK/GRAY,TRIM20

main73220-0K571-C1iGUN126..DCB..SAP..6FC202301-202401

BLACK/BLACK,TRIM21,23

main73220-0K571-C1iGUN126..DCB..SAP..6FC202301-202401

BLACK/BLACK,TRIM21

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0K880-C0iGUN125..RHD..S202301-202401

BLACK,TRIM2#

main73230-0KB50-C0iGUN12#,135..LHD..SAP202301-202401

BLACK,TRIM2#

main73230-0KC30-C0iGUN12#..RHD..H202301-202401

BLACK,TRIM2#

main73230-0KF20-C0iGUN12#,135..THP202208-202307

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0K880-C0iGUN125,135..LHD..SAP..(L,S)202301-202401

BLACK,TRIM2#

main73230-0KA10-C0iGUN125..LHD..SCB202301-202401

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main73230-0KA10-C0iGUN125..LHD..SCB202301-202401

BLACK,TRIM2#

main73230-0KB50-C0iGUN12#..RHD202301-202401

BLACK,TRIM2#

main73230-0KJ10-C0iGUN12#,135..THP202208-202307

BLACK,TRIM2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0064

main90105-T0064

90109T0041

main90109-T0041

90109T0056

main90109-T0056

90178T0017

main90178-T0017

9167380616

main91673-80616

19 parts on this diagram · 5 diagrams in section
