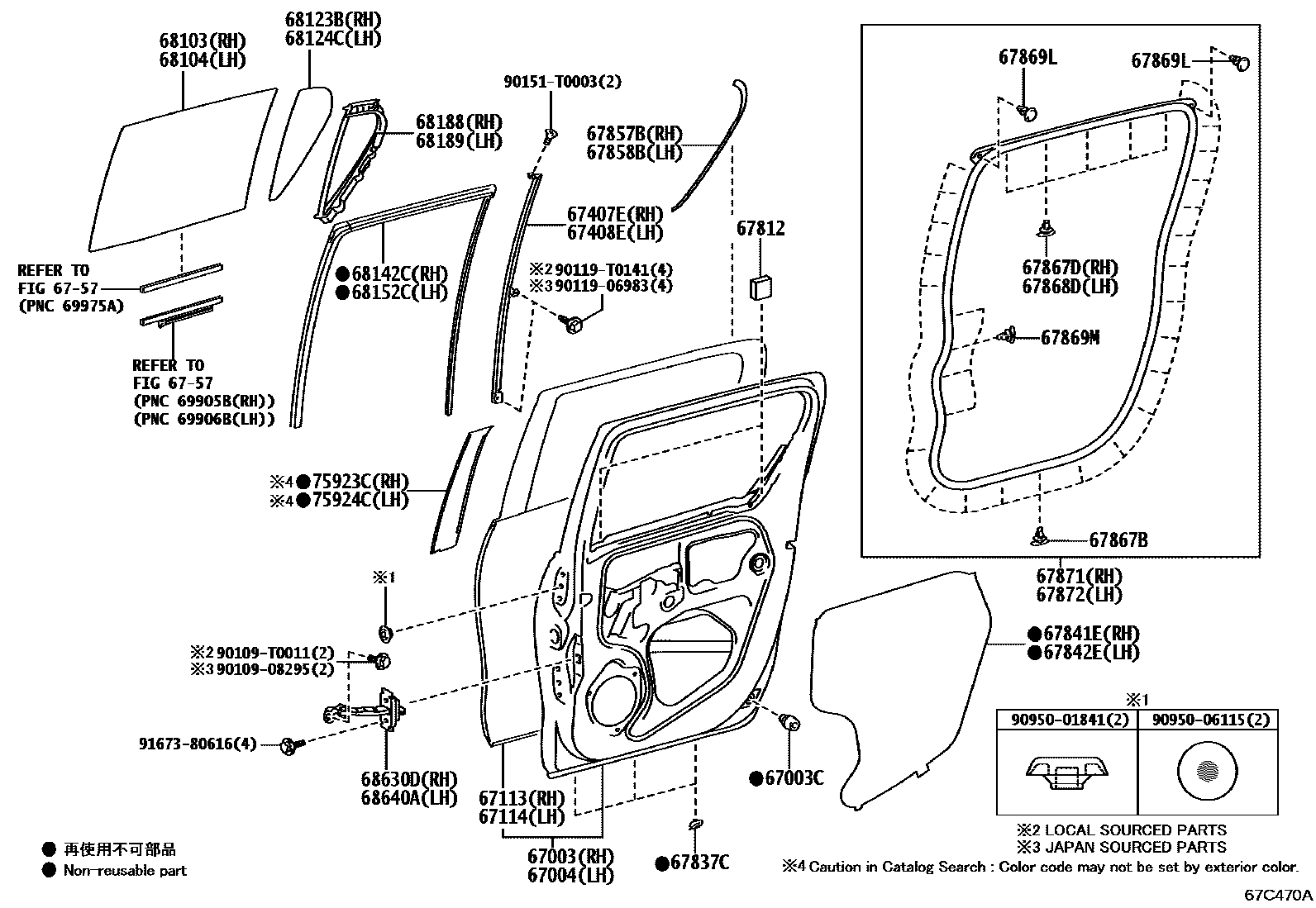

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM 0004 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK011iGUN12#,135..THP¥41,800202208-202401

67003CCUSHION, REAR DOOR PANEL

main90541-09131iGUN12#,135..THP¥100202208-202401

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK011iGUN12#,135..DCB..SAP¥41,800202208-202401

67113PANEL, REAR DOOR, OUTER RH

main67113-KK010iGUN12#,135..THP¥16,800202208-202401

67114PANEL, REAR DOOR, OUTER LH

main67114-KK010iGUN12#,135..THP¥16,800202208-202401

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K100iGUN12#,135..DCB..SAP¥2,390202208-202401

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K100iGUN12#,135..DCB..SAP¥2,390202208-202401

6757

67812PAD, REAR DOOR SILENCER

main69759-0K030iGUN12#,135..THP¥120202208-202307

main69759-0K060iGUN12#,135..DCB..SAP202301-202401

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K092iGUN12#,135¥80202208-202209

PLANT TMT

main67837-0K093iGUN12#,135..THP¥80202210-202307

PLANT TMT

main67837-0K103iGUN12#..XTR202301-202401

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K130iGUN12#,135..THP¥540202208-202401

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K010iGUN12#,135..THP¥540202208-202401

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K030iGUN12#,135..THP¥220202208-202307

main67857-0K080iGUN12#,135..DCB..SAP202301-202401

main67857-0K090iGUN12#..XTR202301-202401

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K030iGUN12#,135..THP¥220202208-202307

main67858-0K080iGUN12#,135..DCB..SAP202301-202401

main67858-0K090iGUN12#..XTR202301-202401

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150iGUN12#,135..THP¥100202208-202401

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010iGUN12#,135..THP¥100202208-202401

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010iGUN12#..XTR¥100202301-202401

main67867-52030iGUN12#,135..THP¥100202208-202401

67869LCLIP, REAR DOOR WEATHERSTRIP

main9004A-46317iGUN12#,135..THP¥80202212-202307

main90467-06084iGUN12#,135¥80202208-202401

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020iGUN12#,135..THP¥100202208-202307

main67867-50050iGUN12#,135..DCB..SAP¥100202301-202401

main67869-20030iGUN12#..XTR¥100202301-202401

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K081iGUN12#,135..THP¥4,550202208-202307

main67871-0K111iGUN12#,135..DCB..SAP202301-202401

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K081iGUN12#,135..THP¥4,550202208-202307

main67872-0K111iGUN12#,135..DCB..SAP202301-202401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K210iGUN125..THP..S;GUN135..THP..6F¥15,300202208-202307

BACK GLASS-FIX TYPE(GREEN)

main68113-0K220iGUN125,135..DCB..SAP..(L,S)202301-202401

main68113-0K240iGUN125..THP..H;GUN126,135..THP..6FC202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main68113-0K250iGUN12#..DCB..SAP..H202301-202401

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K210iGUN125..THP..S;GUN135..THP..6F¥0202208-202307

BACK GLASS-FIX TYPE(GREEN)

main68114-0K220iGUN125,135..DCB..SAP..(L,S)202301-202401

main68114-0K240iGUN125..THP..H;GUN126,135..THP..6FC202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main68114-0K250iGUN12#..DCB..SAP..H202301-202401

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K231iGUN125..THP..S;GUN135..THP..6F¥9,000202208-202307

BACK GLASS-FIX TYPE(GREEN)

main68123-0K241iGUN125..THP..H;GUN126,135..THP..6FC202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main68123-0K250iGUN125,135..DCB..SAP..(L,S)202301-202401

main68123-0K260iGUN12#..DCB..SAP..H202301-202401

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K231iGUN125..THP..S;GUN135..THP..6F¥9,000202208-202307

BACK GLASS-FIX TYPE(GREEN)

main68124-0K241iGUN125..THP..H;GUN126,135..THP..6FC202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main68124-0K250iGUN125,135..DCB..SAP..(L,S)202301-202401

main68124-0K260iGUN12#..DCB..SAP..H202301-202401

68142CRUN, REAR DOOR GLASS, RH

main68142-0K080iGUN12#,135..THP¥2,810202208-202307

main68142-0K100iGUN12#,135..DCB..SAP202301-202401

68152CRUN, REAR DOOR GLASS, LH

main68152-0K080iGUN12#,135..THP¥2,810202208-202307

main68152-0K100iGUN12#,135..DCB..SAP202301-202401

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K111iGUN12#,135..THP¥2,710202208-202401

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K111iGUN12#,135..THP¥2,710202208-202401

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K080iGUN12#,135..DCB..SAP202301-202401

main68630-0K091iGUN12#,135..THP¥2,330202208-202307

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K080iGUN12#,135..DCB..SAP202301-202401

main68630-0K091iGUN12#,135..THP¥2,330202208-202307

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN135..6FC;GUN12#..THP..H¥1,230202208-202307

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75923-0K090iGUN12#..DCB..SAP..H202301-202401

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN135..6FC;GUN12#..THP..H¥1,230202208-202307

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75924-0K090iGUN12#..DCB..SAP..H202301-202401

9010908295

main90109-08295¥80

90109T0011

main90109-T0011

9011906983

main90119-06983¥60

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841¥110

9095006115

main90950-06115¥110

9167380616

main91673-80616¥60

41 parts on this diagram · 4 diagrams in section
