REAR BODY GUARD FRAME & TAIL GATE

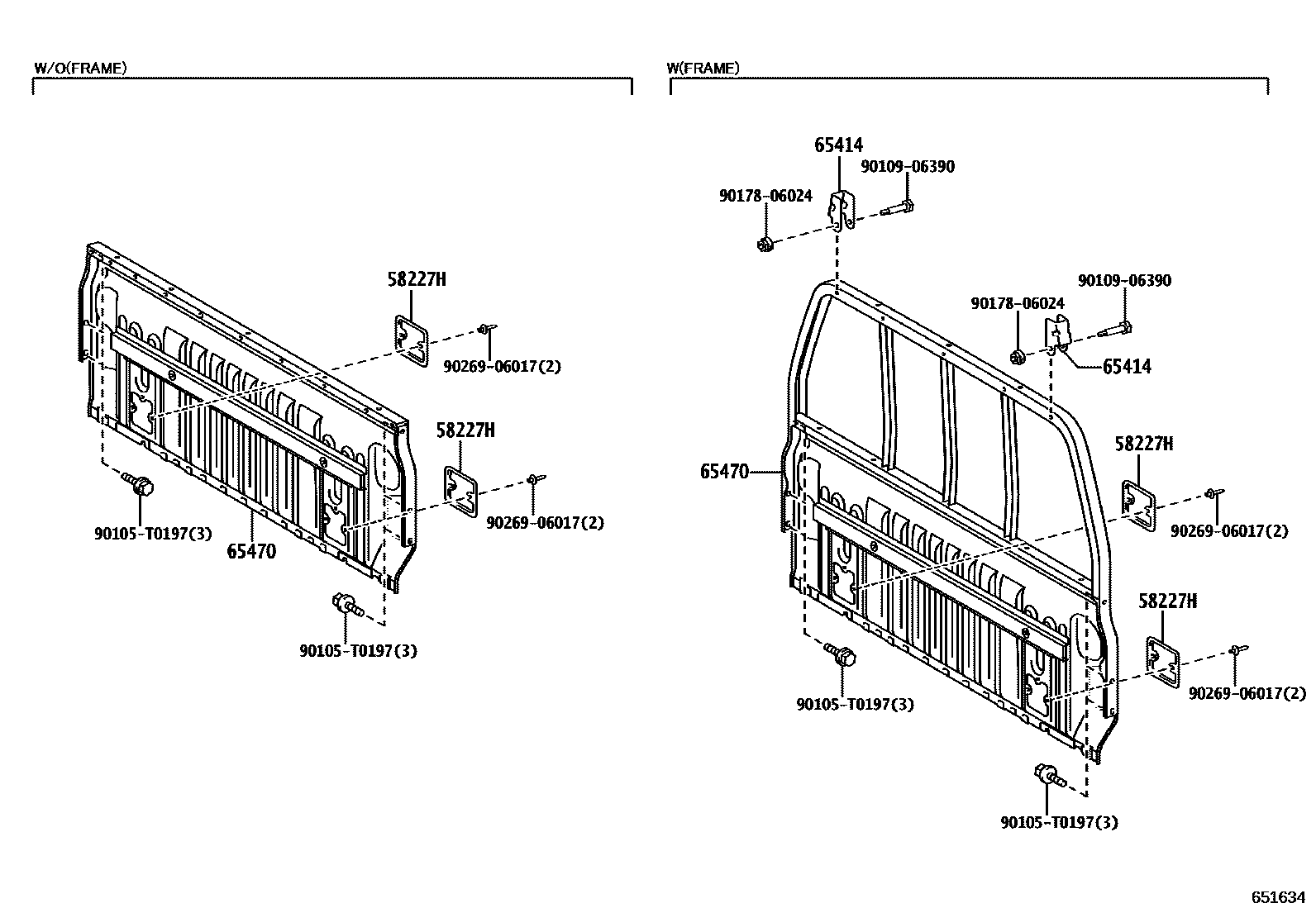

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031iGUN12#,135..THP202208-202401

65414STOPPER, GUARD FRAME

main65414-KK010iGUN125..L202302-202401

65470BOARD ASSY, HEADER

main65470-KK010iGUN12#,135..(DCB,XTR)..SAP..(H,S)..CBU202208-202401

main65470-KK020iGUN125,135..SCB..CBU202301-202401

main65470-KK050iGUN125..L202302-202401

90105T0197

main90105-T0197

9010906390

main90109-06390

9017806024

main90178-06024

9026906017

main90269-06017

7 parts on this diagram · 3 diagrams in section
