ROOF PANEL & BACK PANEL

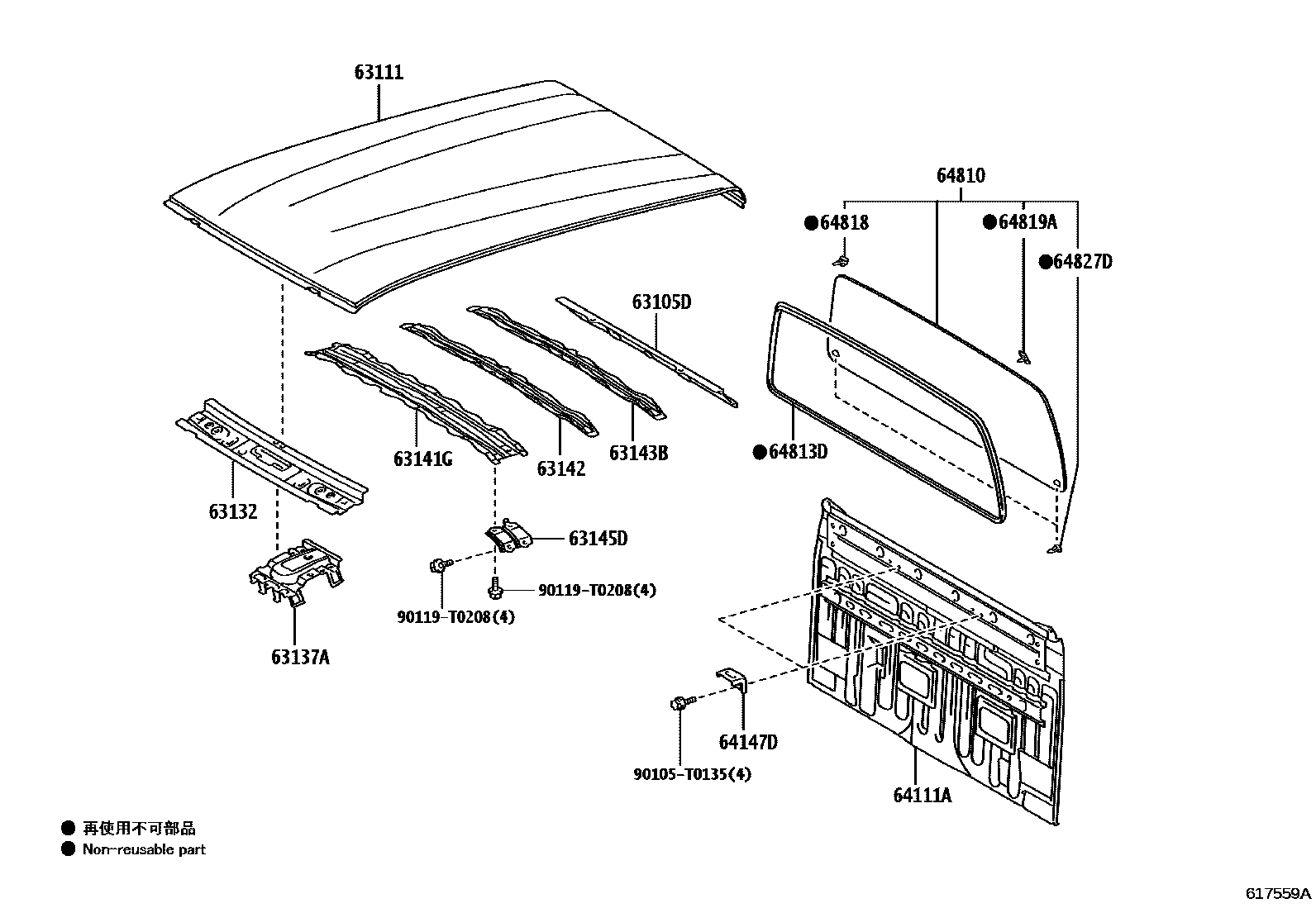

Parts diagram

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-KK040i202301-202401

main63135-KK050i202208-202401

63111PANEL, ROOF

main63111-KK010i202208-202401

main63111-KK020i202301-202401

main63111-KK030i202301-202401

main63111-KK120i202301-202401

DATA COMMUNICATION MODULE-WITH(E-CALL)

main63111-KK130i202301-202401

63132PANEL, WINDSHIELD HEADER, INNER

main63132-KK021i202303-202401

main63132-KK900i202208-202303

63137ABRACKET, DOME LAMP, NO.1

main63137-KK010i202208-202401

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-KK020i202208-202401

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-KK010i202208-202401

main63142-KK030i202301-202401

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-KK010i202208-202401

63145DBRACKET, ROOF REINFORCEMENT

main63145-KK030i202208-202401

64111APANEL, BACK

main64101-KK030i202301-202401

main64101-KK040i202301-202401

main64101-KK050i202301-202401

main64101-KK090i202208-202307

64147DPLATE, BACK PANEL CORNER, UPPER

main64147-KK010i202208-202401

64810WINDOW ASSY, BACK

main64801-0K112i202208-202307

BACK GLASS-FIX TYPE(GREEN)

main64801-0K132i202208-202307

BACK GLASS-FIX TYPE(PRIVACY)

main64801-0K141i202301-202401

main64801-0K161i202301-202401

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-KK041i202208-202401

64818SPACER, BACK WINDOW GLASS

main64818-0K090i202208-202307

main64818-0K100i202301-202401

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-0K110i202208-202307

main64819-0K120i202301-202401

64827DCLIP, BACK WINDOW GLASS

main64827-0K110i202208-202307

main64827-0K120i202301-202401

90105T0135

main90105-T0135

90119T0208

main90119-T0208

17 parts on this diagram · 3 diagrams in section
