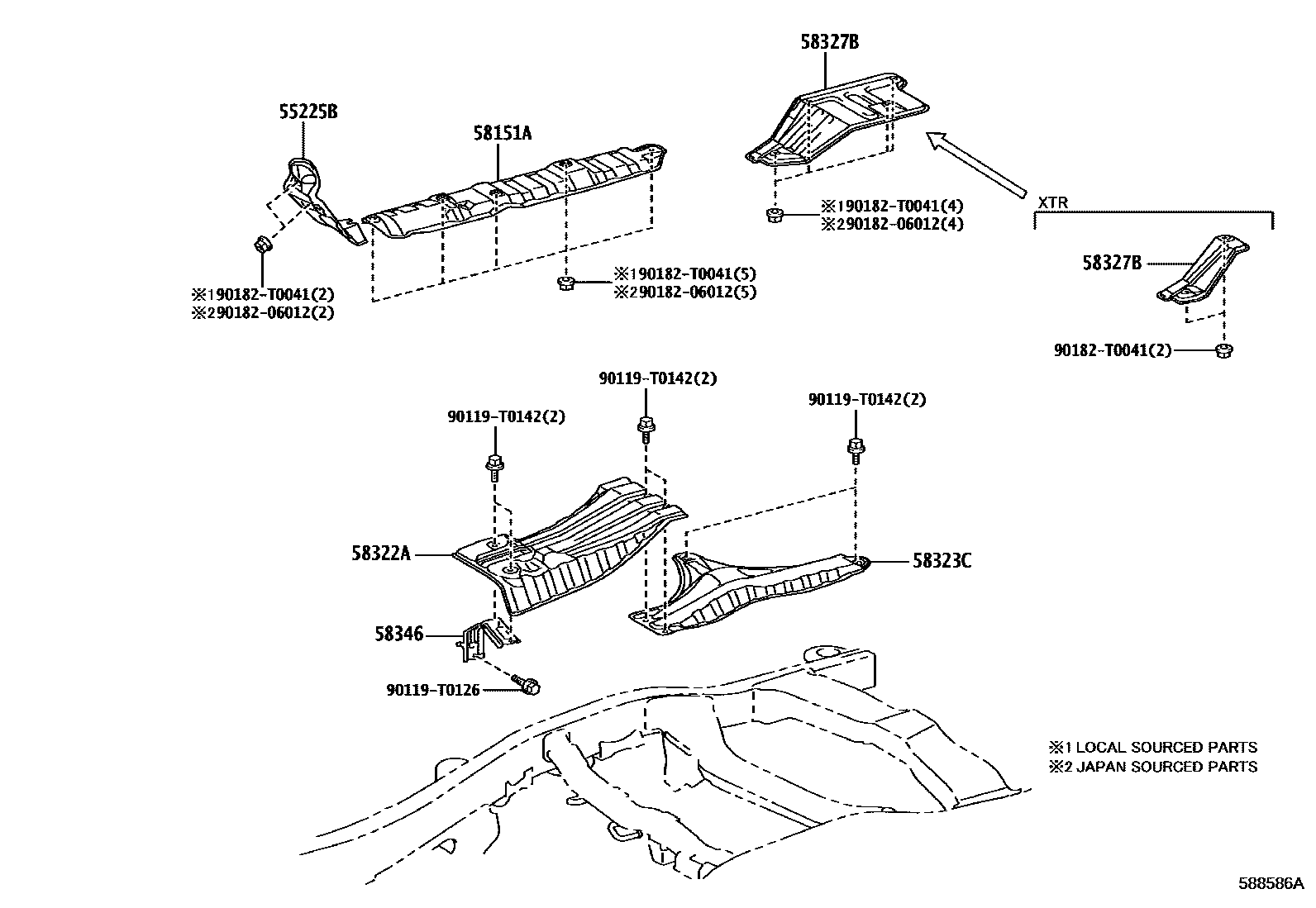

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN12#,135..THP202208-202401

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK020iGUN12#,135..THP202208-202401

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK011iGUN12#,135..THP202208-202401

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK011iGUN12#,135..THP202208-202401

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K011iGUN12#,135..THP202208-202401

main58327-0K021iGUN12#..XTR202301-202401

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN12#,135..THP202208-202401

90119T0126

main90119-T0126

90119T0142

main90119-T0142

9018206012

main90182-06012

90182T0041

main90182-T0041

10 parts on this diagram · 1 diagram in section
