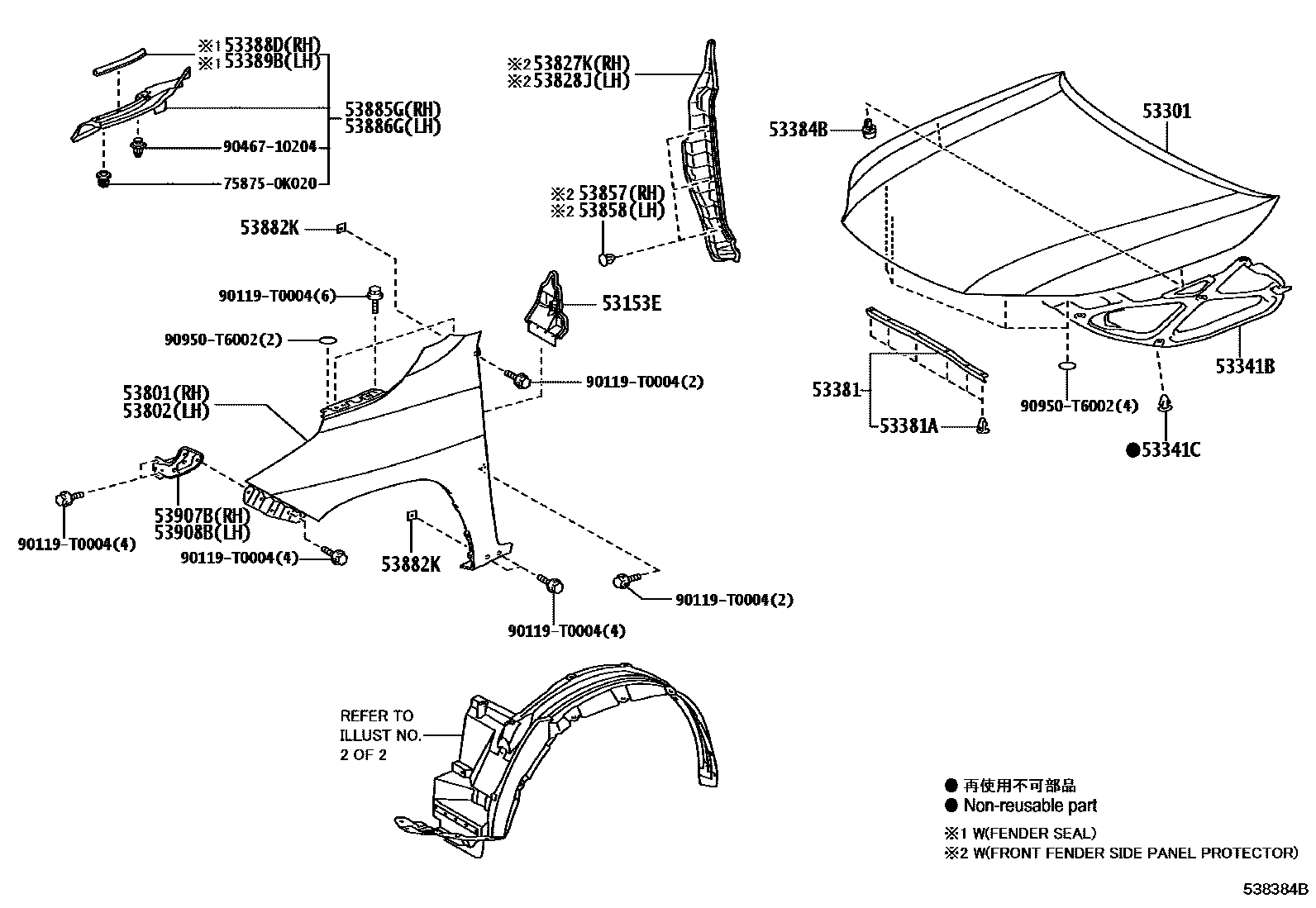

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1FENDER LINER(GR SPORT WIDE TR

53153EGUIDE, FRONT SIDE AIR

main53153-0K010iGUN12#,135..THP202208-202307

main53153-0K020iGUN12#,135..(DCB,XTR)..SAP202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL

main53153-0K100iGUN125,135..SCB202301-202401

53301HOOD SUB-ASSY

main53301-KK011iGUN125,135..SCB202301-202401

main53301-KK050iGUN12#,135..THP202208-202401

53341BINSULATOR, HOOD

main53341-0K250iGUN12#,135202208-202212

sub53341-0K251

main53341-0K251iGUN12#,135..THP202301-202307

main53341-0K270iGUN12#,135..SAP202301-202401

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iGUN12#,135..THP202208-202401

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iGUN12#,135..THP202208-202307

main53381-0K120iGUN12#,135..SAP202301-202401

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGUN12#,135..THP202208-202401

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN12#,135..THP202208-202401

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K010iGUN12#,135..THP202208-202307

main53388-0K020iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K010iGUN12#,135..THP202208-202307

main53388-0K020iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53801FENDER SUB-ASSY, FRONT RH

main53811-KK010iGUN135..IV3202301-202401

main53811-KK020iGUN125,135..SCB..S202301-202401

main53811-KK030iGUN12#,135..THP202208-202401

53802FENDER SUB-ASSY, FRONT LH

main53812-KK010iGUN135..IV3202301-202401

main53812-KK020iGUN125,135..SCB..S202301-202401

main53812-KK030iGUN12#,135..(DCB,XTR)..SAP202301-202401

TIRE & DISC WHEEL-265/65R17 STEEL

sub53812-KK050

main53812-KK050iGUN12#,135..THP202208-202307

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGUN12#,135..THP202208-202307

main53827-0K020iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGUN12#,135..THP202208-202307

main53828-0K020iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iGUN12#..SAP..H;GUN125..XTR..S202301-202401

main53857-0K010iGUN12#,135..THP202208-202307

(L)

main53857-47011iGUN12#,135..THP202208-202307

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iGUN12#,135..THP202208-202307

(L)

main53857-0K010iGUN12#..SAP..H;GUN125..XTR..S202301-202401

main53857-47011iGUN12#,135..THP202208-202307

(J)

53882KSEAL, FRONT FENDER

main53882-33060iGUN12#,135..THP202208-202401

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K100iGUN12#,135..THP202208-202307

main53807-0K120iGUN125,135..(DCB,SCB)..SAP..(L,S)202301-202401

main53807-0K130iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K100iGUN12#,135..THP202208-202307

main53808-0K120iGUN125,135..(DCB,SCB)..SAP..(L,S)202301-202401

main53808-0K130iGUN12#..SAP..H;GUN125..XTR..S202301-202401

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53907-KK010iGUN125,135..SCB202301-202401

main53907-KK020iGUN12#,135..(DCB,XTR)..SAP202208-202401

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53908-KK010iGUN125,135..SCB202301-202401

main53908-KK020iGUN12#,135..THP202208-202401

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020

90119T0004

main90119-T0004

9046710204

main90467-10204

90950T6002

main90950-T6002

24 parts on this diagram · 3 diagrams in section
