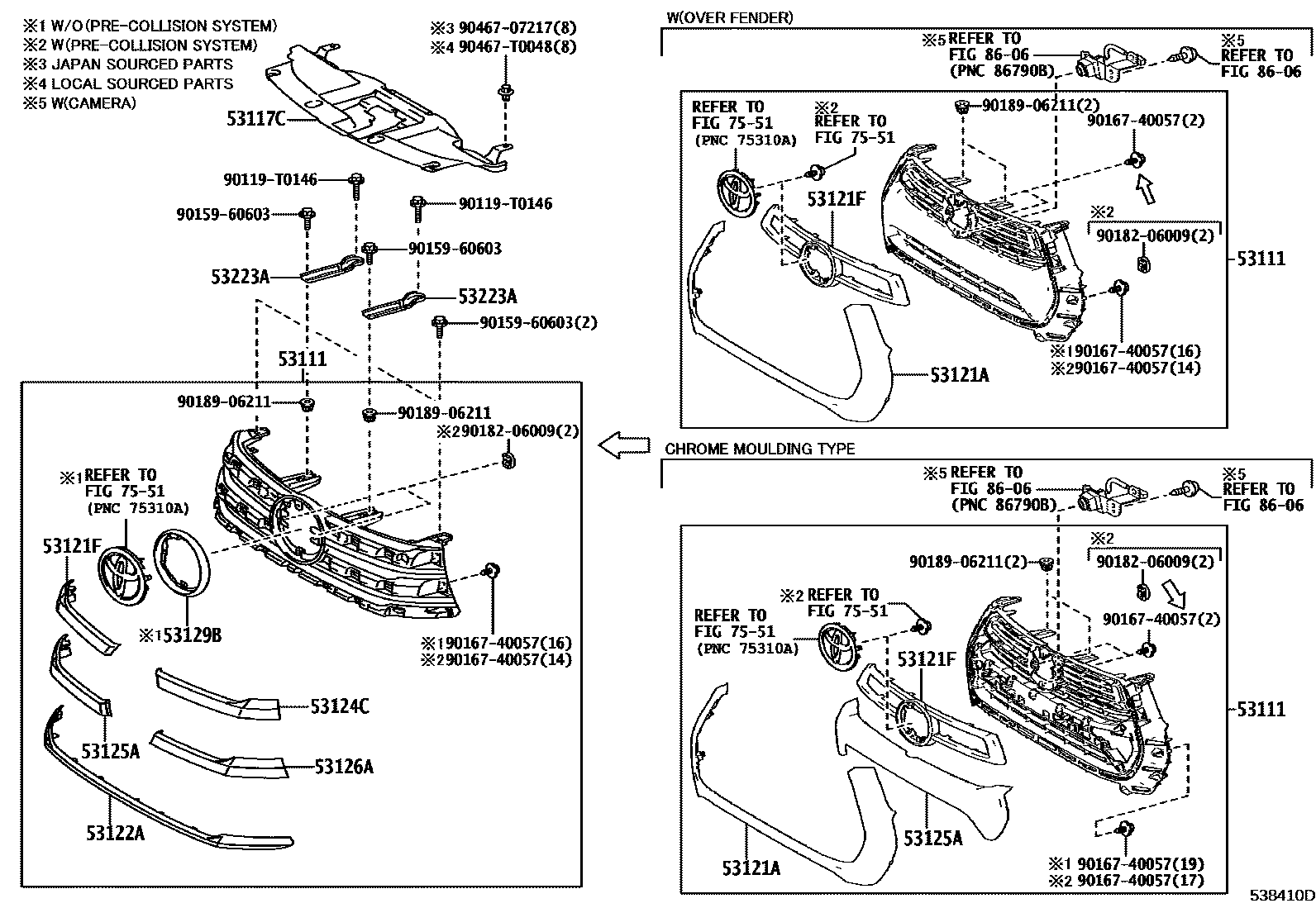

RADIATOR GRILLE
53111GRILLE, RADIATOR
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,RUSSIA&CUSTOM UNION SPEC&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT
NO PAINT REQ.
NO PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)
NO PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)
NO PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)
NO PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT
NO PAINT REQ.
NO PAINT REQ.,RUSSIA&CUSTOM UNION SPEC
PLATED,ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
PLATED
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED,RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))
PLATED
PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
NO PAINT REQ.
PLATED
NO PAINT REQ.
53117CRETAINER, RADIATOR GRILLE, NO.1
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
53121AMOULDING, RADIATOR GRILLE
ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH(*PVM)
ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&BACK MONITOR-WITH(*PVM)
TURKEY SPEC (EURO 6 REGULATION)
TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH
TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&BACK MONITOR-WITH(*PVM)
TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
TURKEY SPEC (EURO 6 REGULATION)&BACK MONITOR-WITH(*PVM)
ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&BACK MONITOR-WITH(*PVM)
ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-WITH(*RUPD(PLATED))
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
53121FMOULDING, RADIATOR GRILLE, UPPER RH
TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
53122AMOULDING, RADIATOR GRILLE, LOWER
53124CMOULDING, RADIATOR GRILLE, UPPER LH
53125AMOULDING, RADIATOR GRILLE, CENTER RH
ISRAEL SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ISRAEL SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
TURKEY SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
TURKEY SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
UKRAINE SPEC (EURO 6 REGULATION)&REAR BUMPER-WITH(*RUPD(PLATED))
ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
ACTIVE SAFETY PACKAGE-WITHOUT&REAR BUMPER-WITH(*RUPD(PLATED))
REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&ACTIVE SAFETY PACKAGE-WITH&REAR BUMPER-WITH(*RUPD(PLATED))
RUSSIA&CUSTOM UNION SPEC&REAR BUMPER-WITH(*RUPD(PLATED))
53126AMOULDING, RADIATOR GRILLE, CENTER LH
53129BMOULDING, RADIATOR GRILLE, NO.9
53223ABRACKET, RADIATOR GRILLE MOUNTING
7551
8606
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048
19 parts on this diagram · 3 diagrams in section
