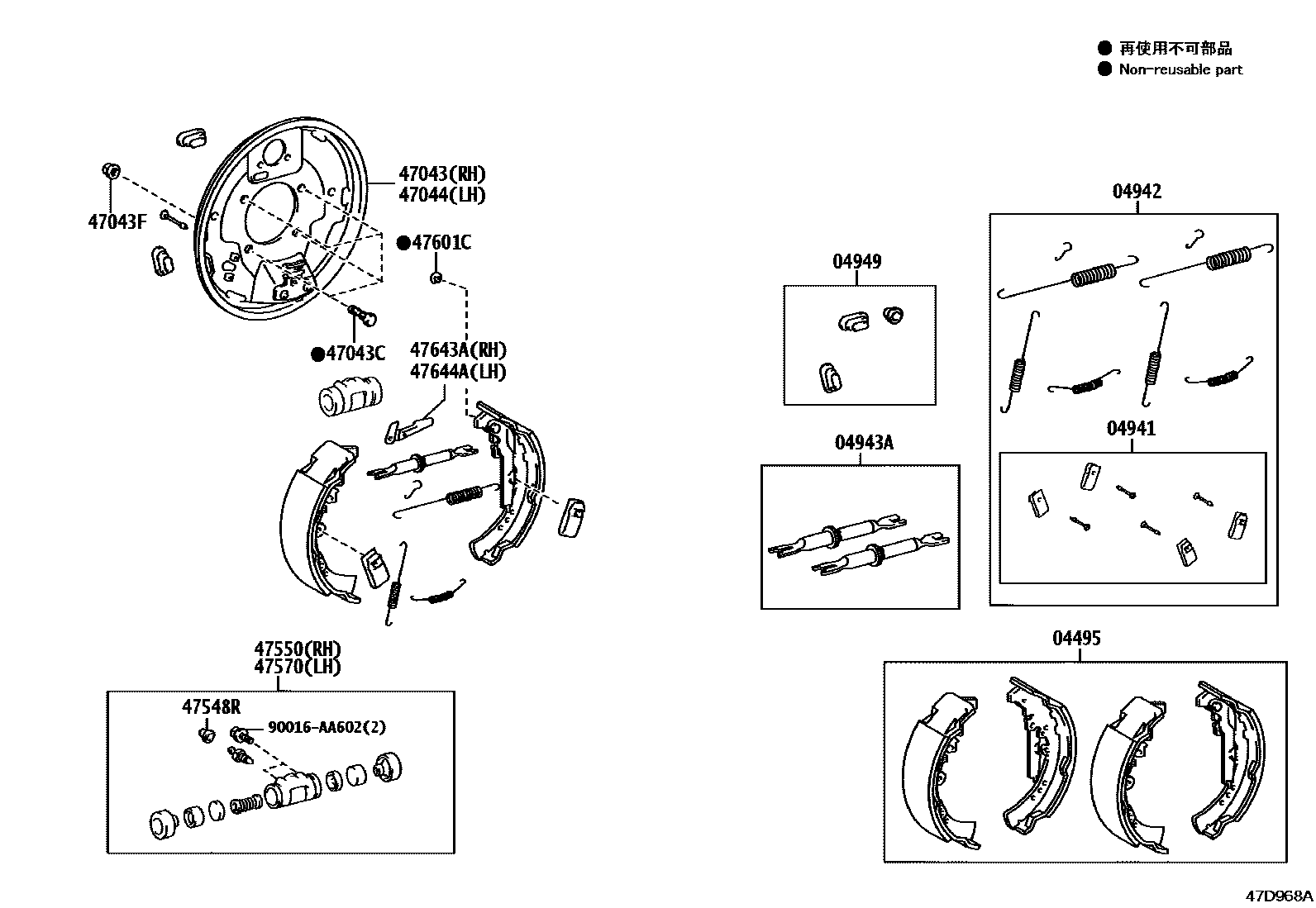

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0K120i202208-202307

MARK NSA LN508

main04495-0K160i202301-202401

MARK NBK LN508

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K030i202208-202307

main04941-0K100i202301-202401

04942SPRING KIT, REAR BRAKE

main04942-0K130i202208-202307

main04942-0K210i202301-202401

04943ASTRUT KIT, REAR BRAKE

main04943-0K030i202208-202307

main04943-0K110i202301-202401

04949PLUG KIT, REAR BRAKE

main04949-0K130i202208-202307

main04949-0K150i202301-202401

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K120i202301-202401

main47043-0K130i202208-202307

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0011i202208-202401

*10-1.25PX54.5-30

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077i202208-202401

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K120i202301-202401

main47044-0K130i202208-202307

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K030i202208-202307

main31478-30010i202301-202401

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070i202208-202307

main47550-71030i202301-202401

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070i202208-202307

main47550-71030i202301-202401

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K120i202301-202401

47601CWASHER, C(FOR REAR BRAKE)

main90016-AD501i202208-202307

main90016-DD002i202301-202401

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050i202208-202307

main47644-35040i202301-202401

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-35040i202301-202401

main47644-0K050i202208-202307

90016AA602

main90016-AA602

17 parts on this diagram · 2 diagrams in section
