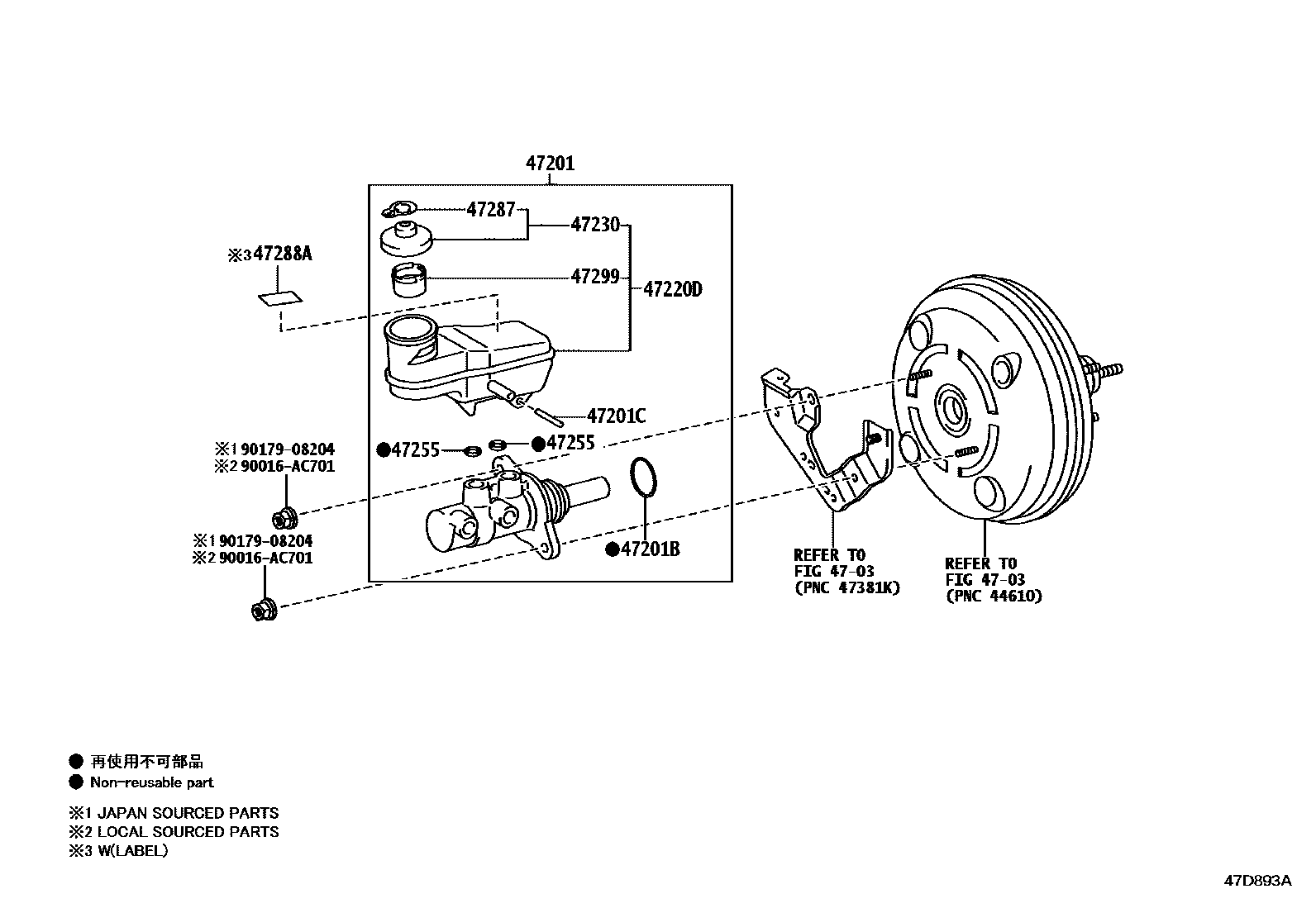

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K580iGUN12#,135..THP..6FC202208-202401

main47201-0K590iGUN125,135..THP..6F202208-202401

main47201-0K600iGUN12#..RHD..6FC202301-202401

main47201-0K610iGUN12#..RHD..6F202301-202401

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iGUN12#,135..THP202208-202401

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGUN12#,135..THP202208-202401

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iGUN12#..RHD..6FC202301-202401

main47220-0K110iGUN12#..RHD..6F202301-202401

main47220-0K120iGUN12#,135..THP..6FC202208-202401

main47220-0K130iGUN125,135..THP..6F202208-202401

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN12#,135..THP202208-202401

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001iGUN12#,135..THP202208-202401

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN12#,135..THP202208-202401

47288ALABEL, BRAKE FLUID NOTICE

main47288-52010iGUN126..THP202208-202307

RUSSIA&CUSTOM UNION SPEC

main47288-52010iGUN126..THP202208-202307

UKRAINE SPEC (EURO 6 REGULATION)

main47288-64010iGUN125,135..THP..6F202208-202307

TURKEY SPEC (EURO 6 REGULATION)

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGUN12#,135..THP202208-202401

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
