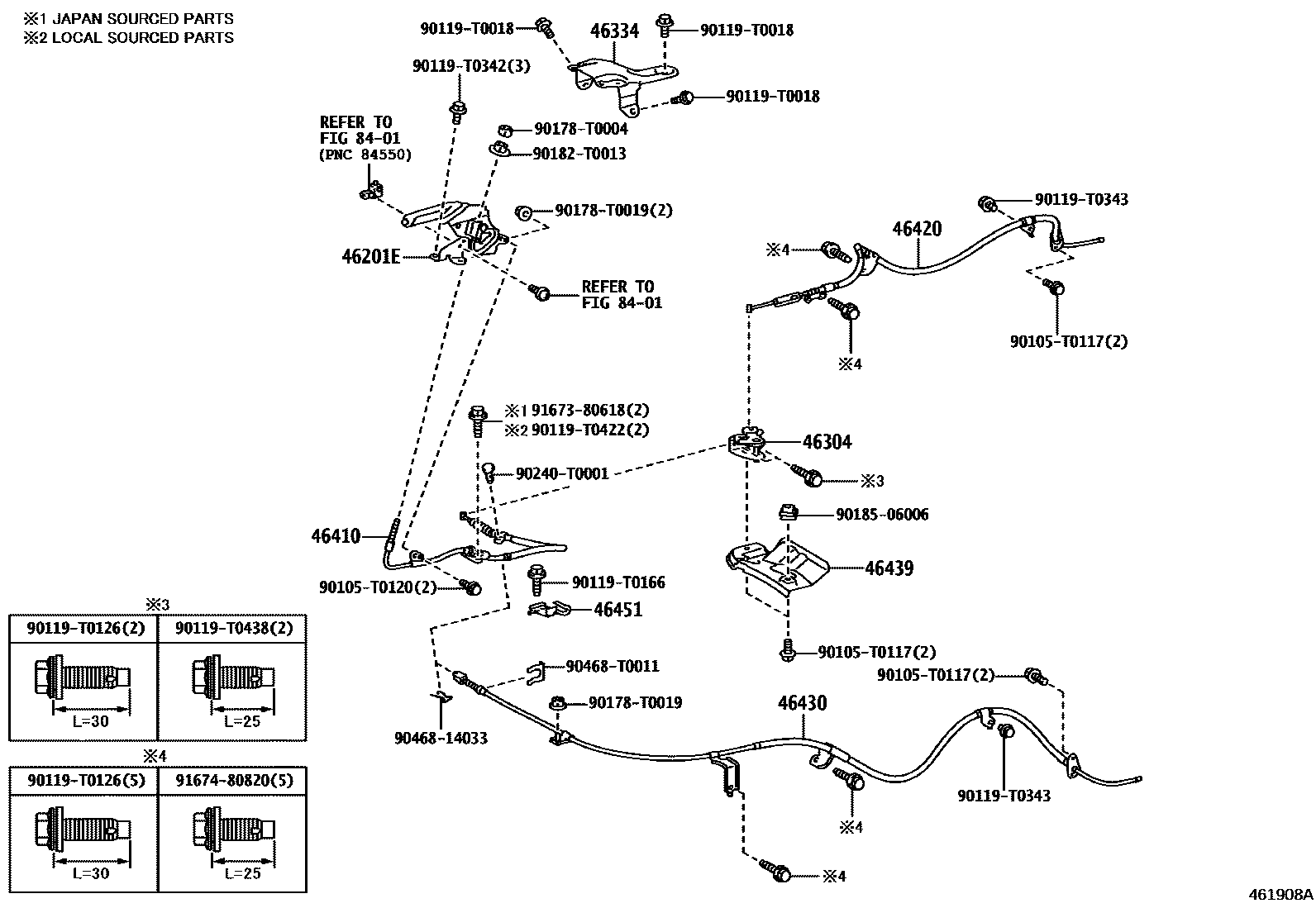

PARKING BRAKE & CABLE

0001 1 0002 1GR SPORT WIDE TREAD

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K210-C0iGUN12#..SAP..H202301-202401

BLACK,TRIM2#

main46201-0K230-C0iGUN12#,135..THP202208-202307

BLACK,TRIM2#

main46201-0K280-C0iGUN125,135..SAP..(L,S)202301-202401

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN12#,135..THP202208-202307

main46304-0K090iGUN12#,135..SAP202301-202401

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K020iGUN125,135..SCB202301-202401

main46334-KK010iGUN12#,135..THP202208-202401

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K120iGUN12#,135..SAP202208-202401

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K290iGUN12#,135..THP202208-202307

main46420-0K310iGUN12#,135..SAP202301-202401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN12#,135..THP202208-202307

main46430-0K230iGUN12#,135..SAP202301-202401

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN12#,135..THP202208-202401

46451BRACKET, CABLE SUPPORT

main46451-0K040iGUN12#,135..THP202208-202401

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

9167480820

main91674-80820

27 parts on this diagram · 2 diagrams in section
