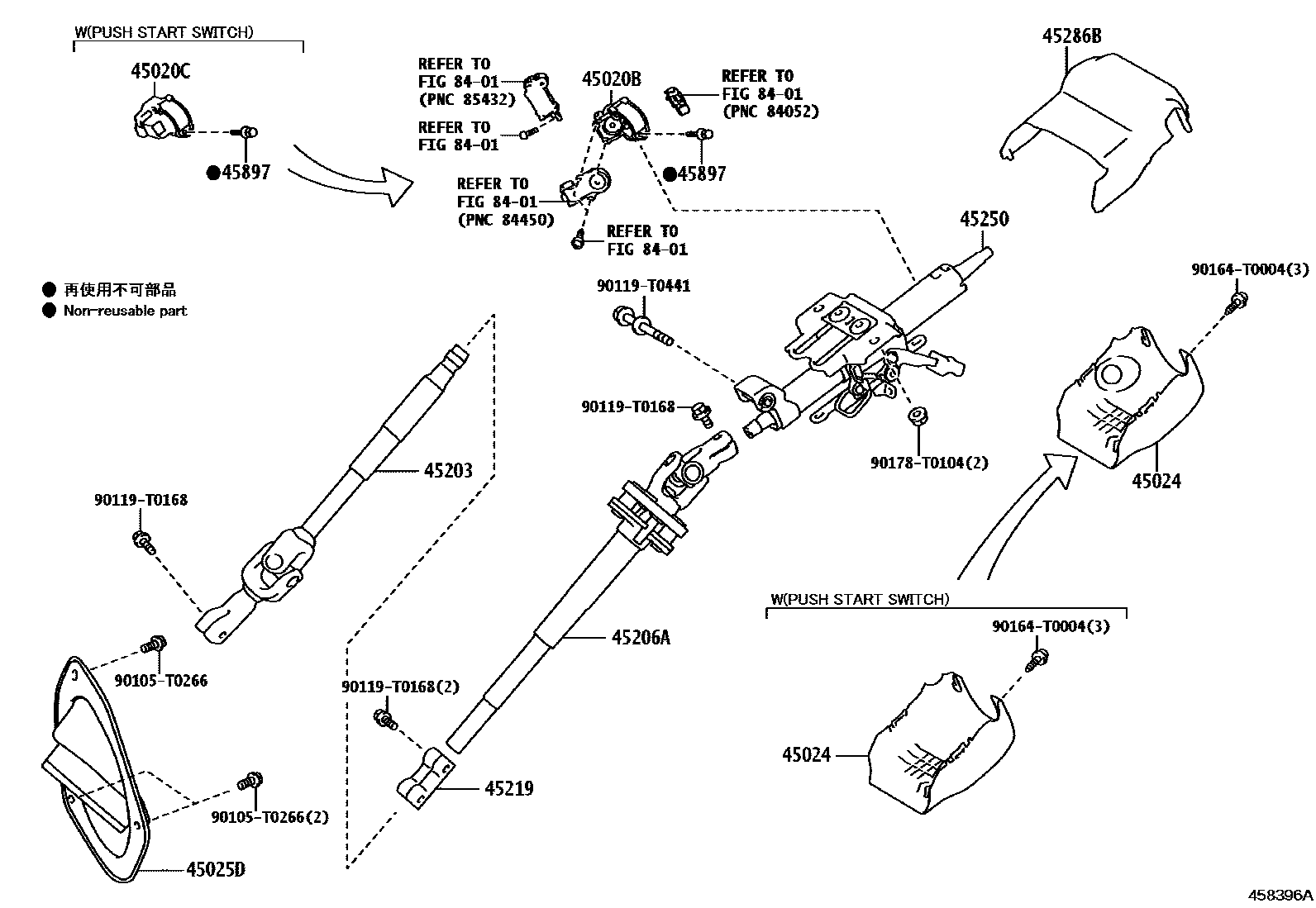

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
sub45024-0K071
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
WIRELESS DOOR LOCK-WITH
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
WIRELESS DOOR LOCK-WITH
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
