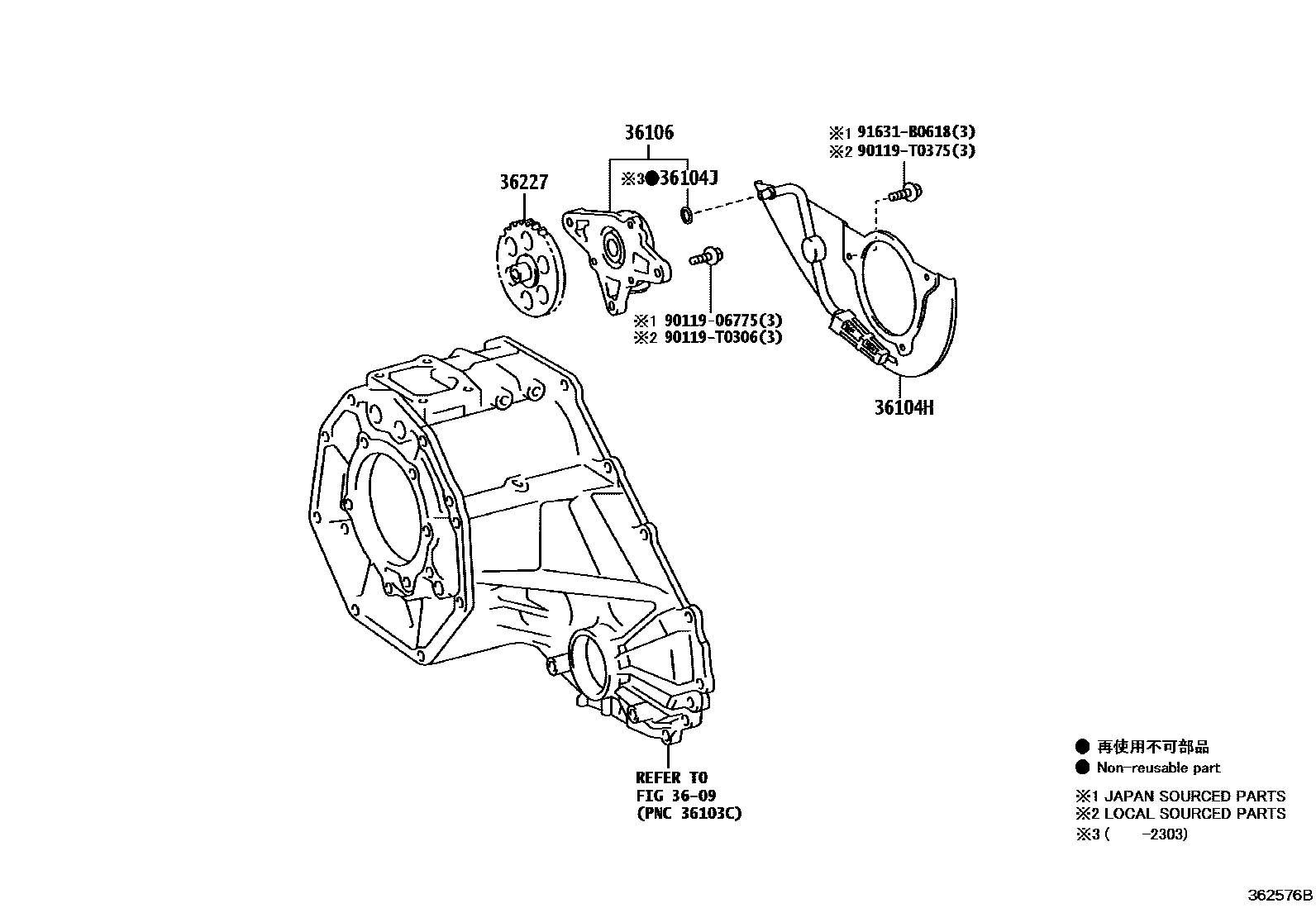

TRANSFER OIL PUMP

3609

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN12#..THP202208-202401

*382,*381

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGUN12#..THP202208-202401

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-04010iGUN12#..SAP202303-202401

*382

main36106-0K010iGUN12#202208-202303

*382

sub36106-04010

main36106-35031iGUN12#202208-202303

*381

sub36106-35070

main36106-35070iGUN12#..SAP202303-202401

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K010iGUN12#202208-202304

*382

sub36227-0K011

main36227-0K011iGUN12#..SAP202305-202401

*382

main36227-35020iGUN12#202208-202304

*381

sub36227-35021

main36227-35021iGUN12#..THP202305-202401

*381

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

9 parts on this diagram · 1 diagram in section
