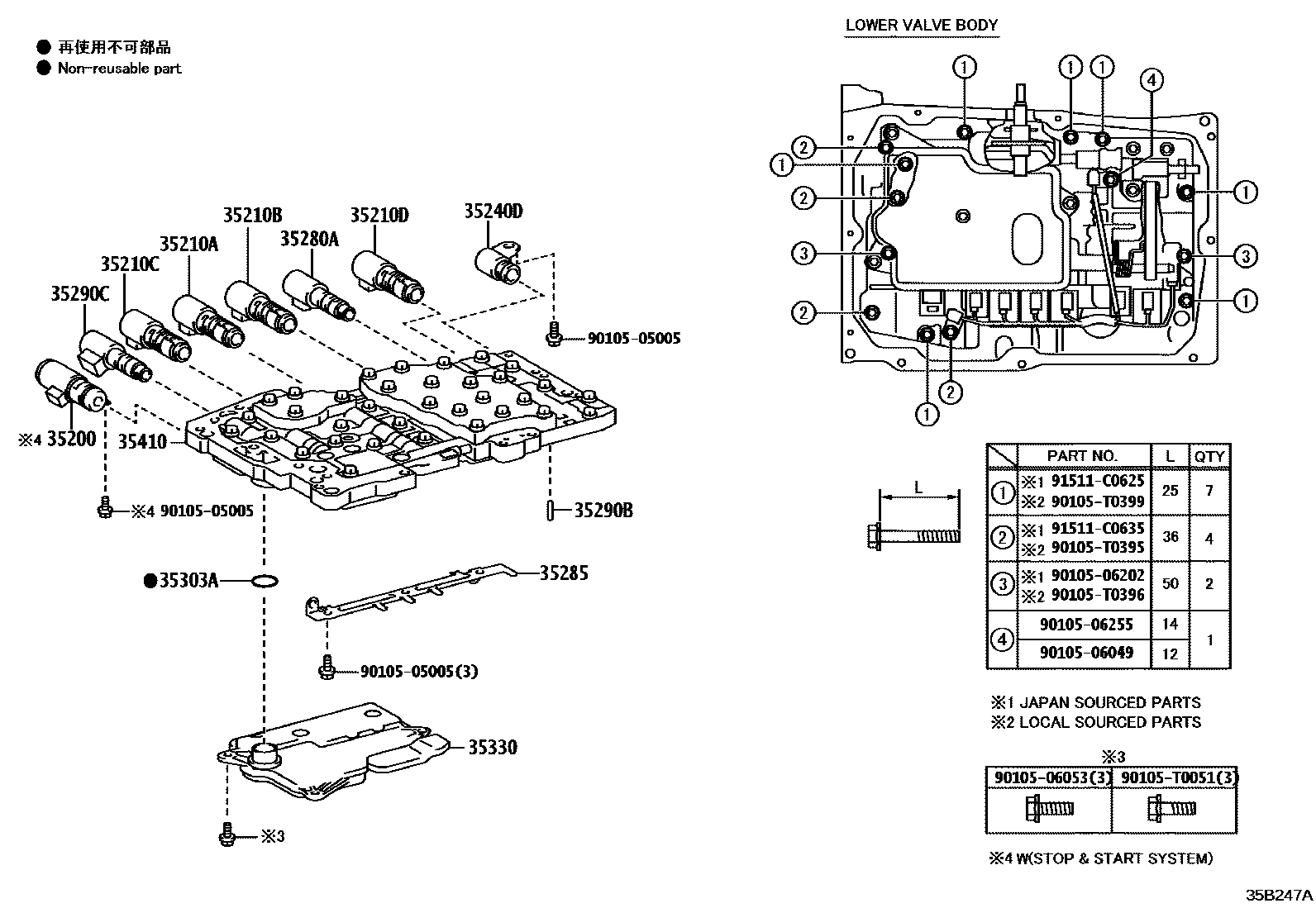

VALVE BODY & OIL STRAINER (ATM)
35200PUMP ASSY, OIL, W/SOLENOID
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
(L)
(J)
35285PLATE, SOLENOID LOCK
(L)
(J)
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
35290CVALVE, SOLENOID(SLT)
(L)
(J)
35303ARING, O (FOR OIL STRAINER)
(J)
(L)
35330STRAINER ASSY, VALVE BODY OIL
(L)
(J)
9010505005
main90105-05005
9010506049
main90105-06049
9010506053
main90105-06053
9010506202
main90105-06202
9010506255
main90105-06255
90105T0051
main90105-T0051
90105T0395
main90105-T0395
90105T0396
main90105-T0396
90105T0399
main90105-T0399
91511C0625
main91511-C0625
91511C0635
main91511-C0635
24 parts on this diagram · 2 diagrams in section
