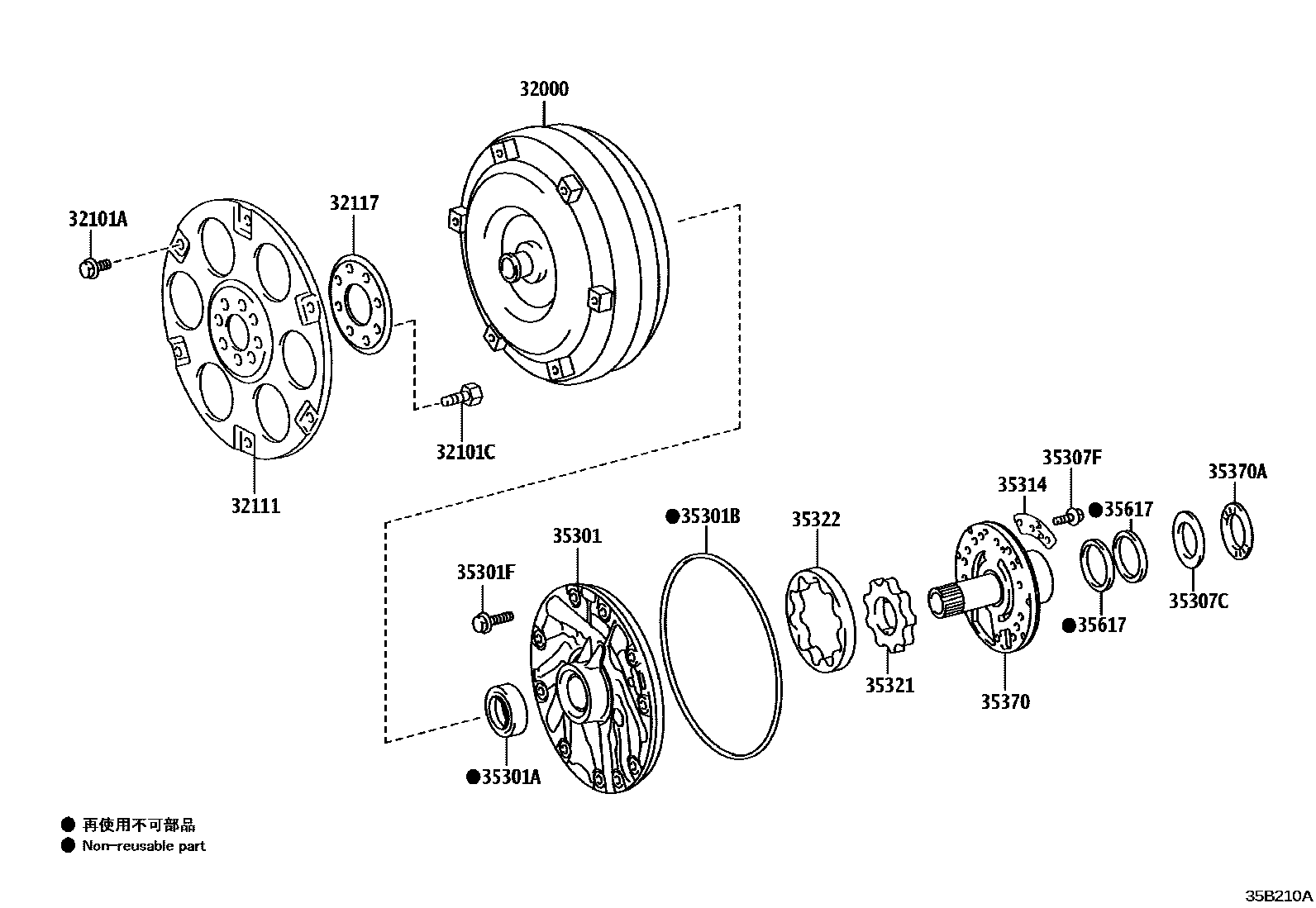

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(L)
(J)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.5PX11-8,(J),SILVER WHITE
*10-1.5PX11-8,BLACK
*10-1.5PX11-8,(L),SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*13-1.5PX43.5-23.5,(J)
*13-1.5PX43.5-23.5,(L)
32111PLATE, PUMP IMPELLER DRIVE
(L)
(J)
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
(L)
(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
35307FBOLT (FOR STATOR SHAFT)
(J)
(L)
35314PLATE, FRONT OIL PUMP
(L)
(J)
35321GEAR, FRONT OIL PUMP DRIVE
(L)
T=9.977-9.983,(J)
T=9.977-9.983
35322GEAR, FRONT OIL PUMP DRIVEN
T=9.977-9.983,(L)
T=9.977-9.983,(J)
T=9.977-9.983
35370SHAFT ASSY, STATOR
(L)
(J)
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
35617RING, CLUTCH DRUM OIL SEAL
17 parts on this diagram · 1 diagram in section
