31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0227i202208-202401

*12-1.25PX50-30

31111HOUSING, CLUTCH

main31111-0K140i202208-202401

TYPE A:REFER 33-01

main31111-0K150i202208-202401

TYPE B:REFER 33-01

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-0K090i202208-202401

main33019-0K100i202208-202401

3307

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-0K071i202208-202401

TYPE A:REFER 33-01

main33101-0K081i202208-202401

TYPE B:REFER 33-01

main33101-0K091i202301-202401

VSC-WITH(*HSAC & *TSC & *DAC & LSD),TYPE A:REFER 33-01

main33101-0K091i202301-202401

TYPE A:REFER 33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033i202208-202401

T/P A:SEE 33-01,NO.2

main90341-18033i202208-202307

T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2

main90341-18033i202208-202401

T/P B:SEE 33-01,NO.2

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i202208-202401

TYPE A:REFER 33-01

main90341-18034i202208-202401

TYPE B:REFER 33-01

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-0K010i202208-202401

T/P A:SEE 33-01,NO.1

main33109-0K020i202208-202401

T/P A:SEE 33-01,NO.2

main33109-0K030i202208-202401

T/P B:SEE 33-01,NO.1

main33109-0K040i202208-202401

T/P B:SEE 33-01,NO.2

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-11003i202208-202401

L=11,OD=11,T/P B:SEE 33-01,NO.2

main90250-11003i202208-202307

L=11,OD=11,T/PA:SEE33-01NO.2(J),T/P B:SEE 33-01,NO.2

main90250-11003i202208-202401

L=11,OD=11,T/PA:SEE33-01NO.2(J)

main90250-12002i202208-202401

L=16,OD=12,T/P A:SEE 33-01,NO.1

main90250-T0020i202208-202401

L=16,OD=12,T/P B:SEE 33-01,NO.1

main90250-T0029i202208-202401

L=11,OD=11,T/PA:SEE33-01NO.2(L)

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001i202208-202401

L=14,OD=15,TYPE B:REFER 33-01

main90253-15001i202208-202307

L=14,OD=15,TYPE B:REFER 33-01,TYPE A:SEE 33-01,(J)

main90253-15001i202208-202401

L=14,OD=15,TYPE A:SEE 33-01,(J)

main90253-T0011i202208-202401

L=14,OD=15,TYPE A:SEE 33-01,(L)

33111XGASKET, TRANSMISSION CASE PLUG

main90430-T0021i202208-202401

TYPE B:REFER 33-01

main90430-T0025i202208-202401

TYPE A:REFER 33-01

33112GCASE, TRANSMISSION, REAR

main33102-0K010i202208-202401

TYPE A:REFER 33-01

main33102-0K020i202208-202401

TYPE B:REFER 33-01

main33102-0K030i202301-202401

TYPE A:REFER 33-01

main33102-0K030i202301-202401

TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITH(*HSAC &*TSC & *DAC & LSD),TYPE A:REFER 33-01

main33102-0K040i202301-202401

TYPE B:REFER 33-01

main33102-0K040i202301-202401

TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITH(*HSAC &*TSC & *DAC & LSD),TYPE B:REFER 33-01

main33102-0K050i202208-202401

TYPE A:REFER 33-01

main33102-0K060i202208-202307

TYPE B:REFER 33-01

33118PLATE, STIFFENER, RH(MTM)

main33118-0K030i202208-202307

main33118-0K040i202301-202401

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020i202208-202307

main33119-0K040i202301-202401

3312

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0K070i202208-202401

TYPE A:REFER 33-01

main33124-0K070i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33124-0K070i202208-202401

TYPE B:REFER 33-01

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-04010i202208-202401

TYPE B:REFER 33-01

main33124-0K080i202208-202401

TYPE A:REFER 33-01

sub33124-04010

33124LPIPE, OIL RECEIVER, N0.3(MTM)

main33124-0K090i202208-202401

TYPE B:REFER 33-01

main33124-0K090i202208-202401

TYPE A:REFER 33-01

main33124-0K090i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

33124MPIPE, OIL RECEIVER, N0.4(MTM)

main33124-0K100i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33124-0K100i202208-202401

TYPE A:REFER 33-01

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-T0066i202208-202401

TYPE B:REFER 33-01

main90311-T0066i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90311-T0066i202208-202401

TYPE A:REFER 33-01

33131DRETAINER, BEARING, FRONT

main33108-0K010i202208-202401

TYPE A:REFER 33-01

main33108-0K020i202208-202401

TYPE B:REFER 33-01

33136PLATE, TRANSMISSION INTERMEDIATE

main33106-0K020i202208-202401

TYPE B:REFER 33-01

main33106-0K030i202208-202401

TYPE A:REFER 33-01

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0K050i202208-202401

TYPE A:REFER 33-01

main33176-0K060i202208-202307

TYPE B:REFER 33-01

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main90105-T0334i202208-202401

TYPE A:REFER 33-01

main90105-T0334i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main90105-T0334i202208-202401

TYPE B:REFER 33-01

33449BMAGNET, TRANSMISSION

main33449-60010i202208-202307

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33449-60010i202208-202401

TYPE A:REFER 33-01

main33449-60010i202208-202401

TYPE B:REFER 33-01

3512ABRACKET, TRANSMISSION BREATHER, NO.1

main3512A-0K010i202208-202307

main3512A-0K210i202301-202401

3512AABRACKET, TRANSMISSION BREATHER, NO.2

main3512A-0K030i202208-202307

main3512A-0K180i202301-202401

3512ABBRACKET, TRANSMISSION BREATHER, NO.3

main3512A-0K050i202208-202307

main3512A-0K220i202301-202401

3512ACBRACKET, TRANSMISSION BREATHER, NO.4

main3512A-0K170i202208-202401

8401

90105T0039

main90105-T0039

90105T0070

main90105-T0070

90105T0119

main90105-T0119

90105T0335

main90105-T0335

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0501

main90119-T0501

9034118034

main90341-18034

9046707065

main90467-07065

9046907011

main90469-07011

9094901C99

main90949-01C99

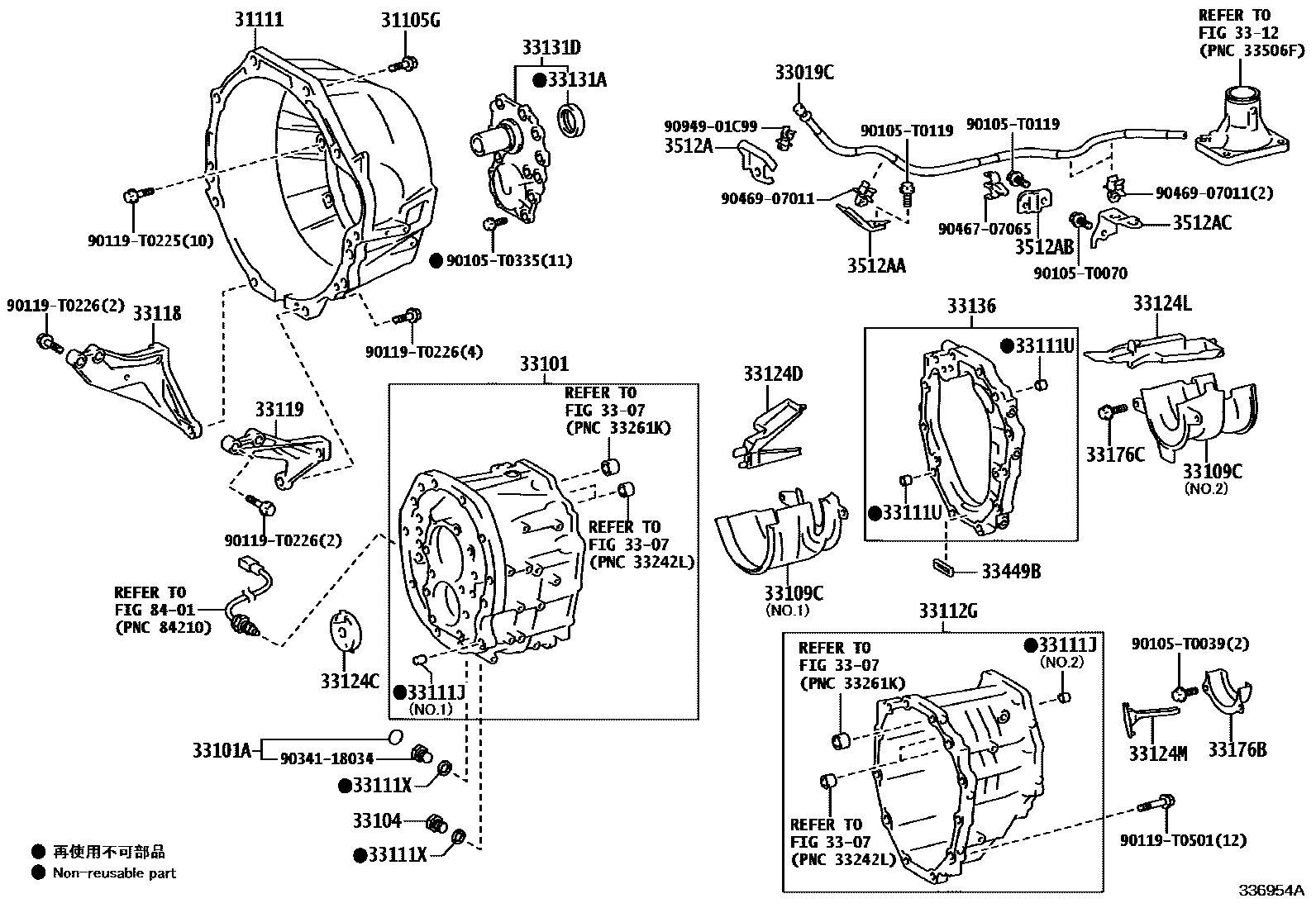

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
