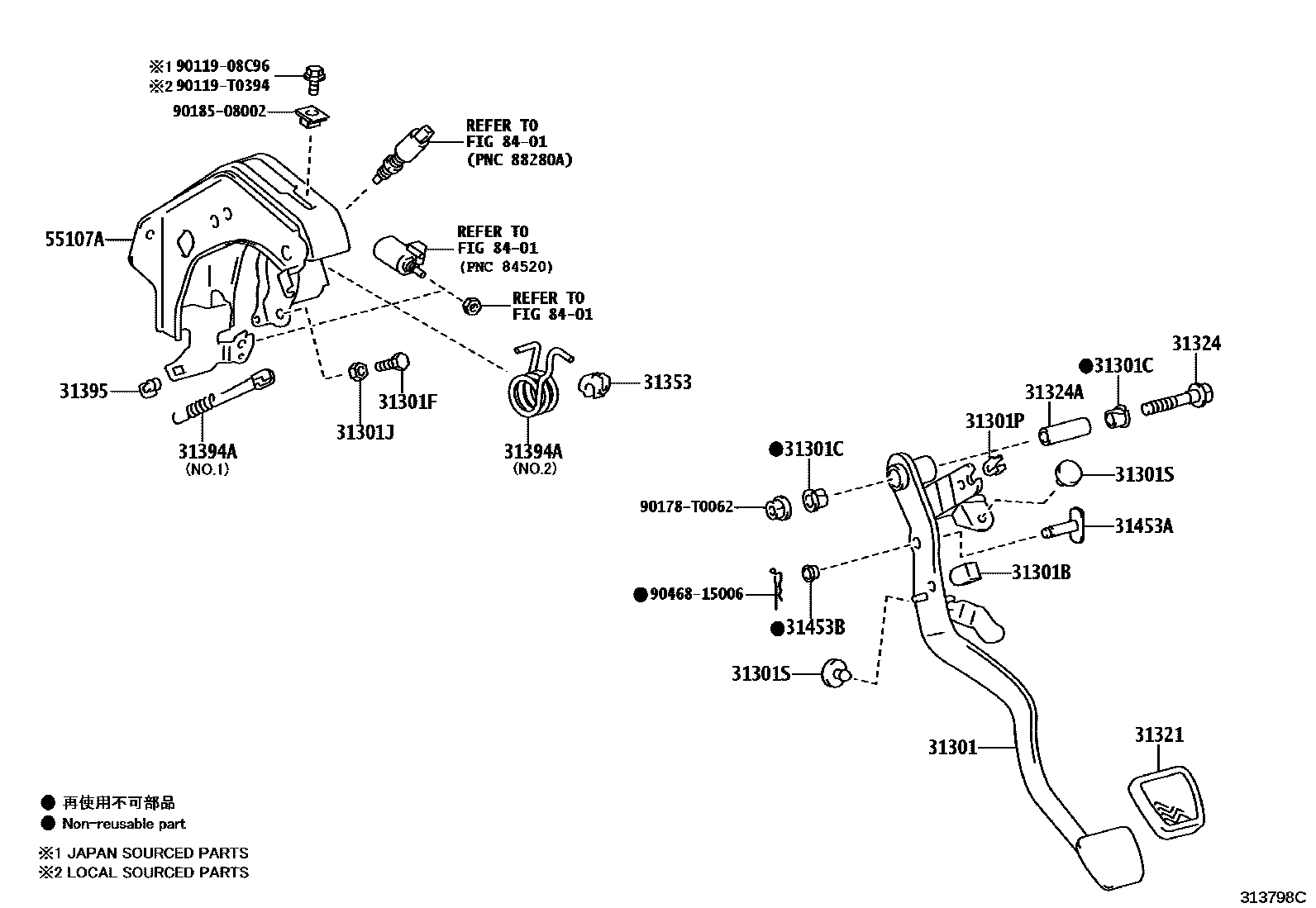

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31301SCUSHION, NO.2(FOR CLUTCH PEDAL)
31321PAD, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31394ASPRING, PEDAL W/HOOK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
31395HOOK, PEDAL SPRING
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=31.9
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401
9011908C96
main90119-08C96
90119T0394
main90119-T0394
90178T0062
main90178-T0062
9018508002
main90185-08002
9046815006
main90468-15006
22 parts on this diagram · 4 diagrams in section
