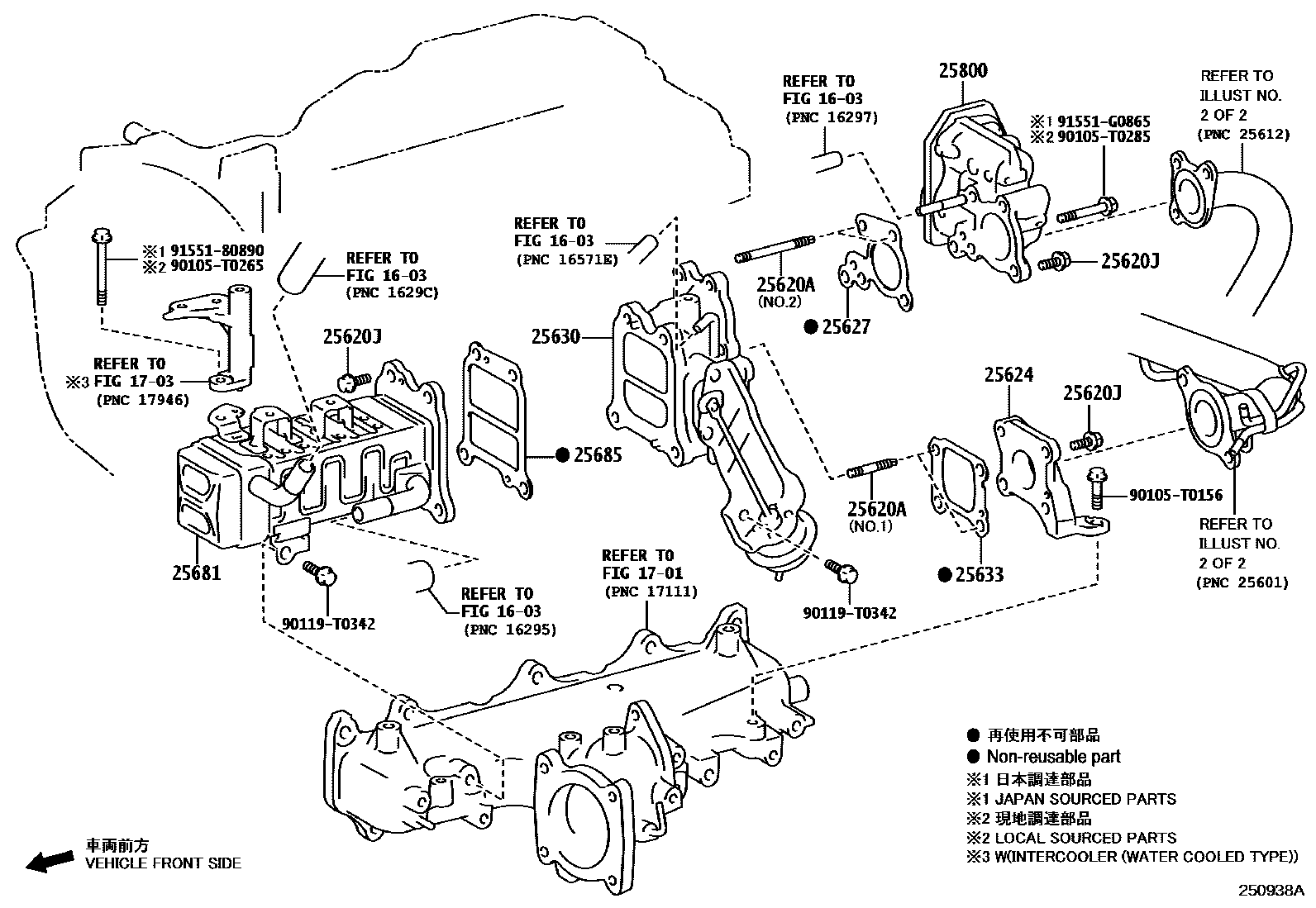

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
1703
25620ABOLT, STUD(FOR EGR VALVE)
NO.1
(L),NO.2
25620JBOLT(FOR EGR VALVE)
(L)
25624ADAPTER, EGR VALVE
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25627GASKET, EGR VALVE
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25630VALVE ASSY, EGR, NO.2
IDN SOURCED PARTS
IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
25633GASKET, EGR VALVE
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25681COOLER, EGR, NO.1
RUSSIA&CUSTOM UNION SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,THA SOURCED PARTS
25685GASKET, EGR COOLER, NO.1
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
25800VALVE ASSY, ELECTRIC EGR CONTROL
(L)
90105T0156
main90105-T0156
90105T0265
main90105-T0265
90105T0285
main90105-T0285
90119T0342
main90119-T0342
9155180890
main91551-80890
91551G0865
main91551-G0865
18 parts on this diagram · 2 diagrams in section
