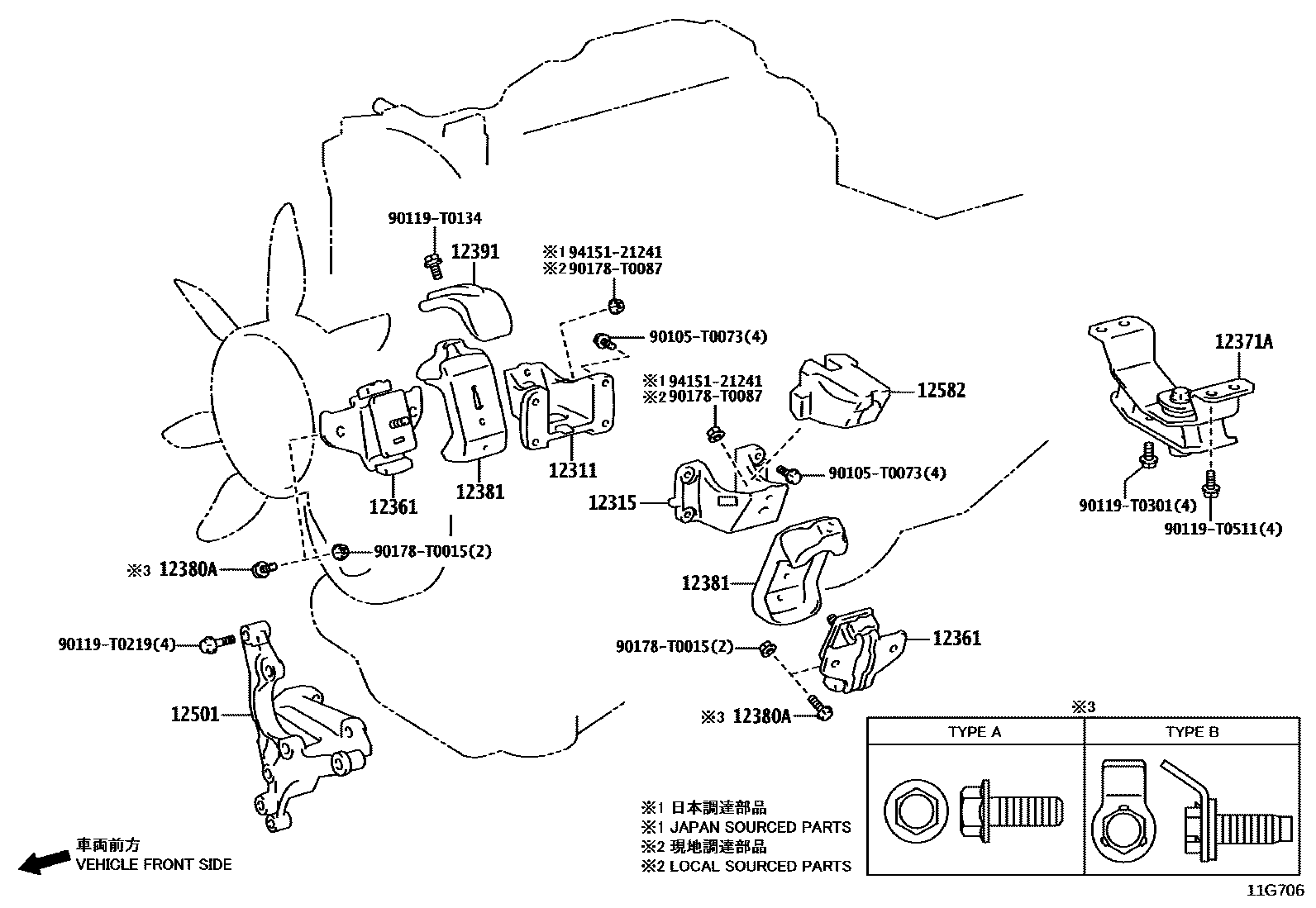

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(J)
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
(L)
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
MARK=S
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
IND SOURCED PARTS
12582INSULATOR, CYLINDER BLOCK, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
main90119-T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
main90119-T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9415121241
main94151-21241
17 parts on this diagram · 2 diagrams in section
