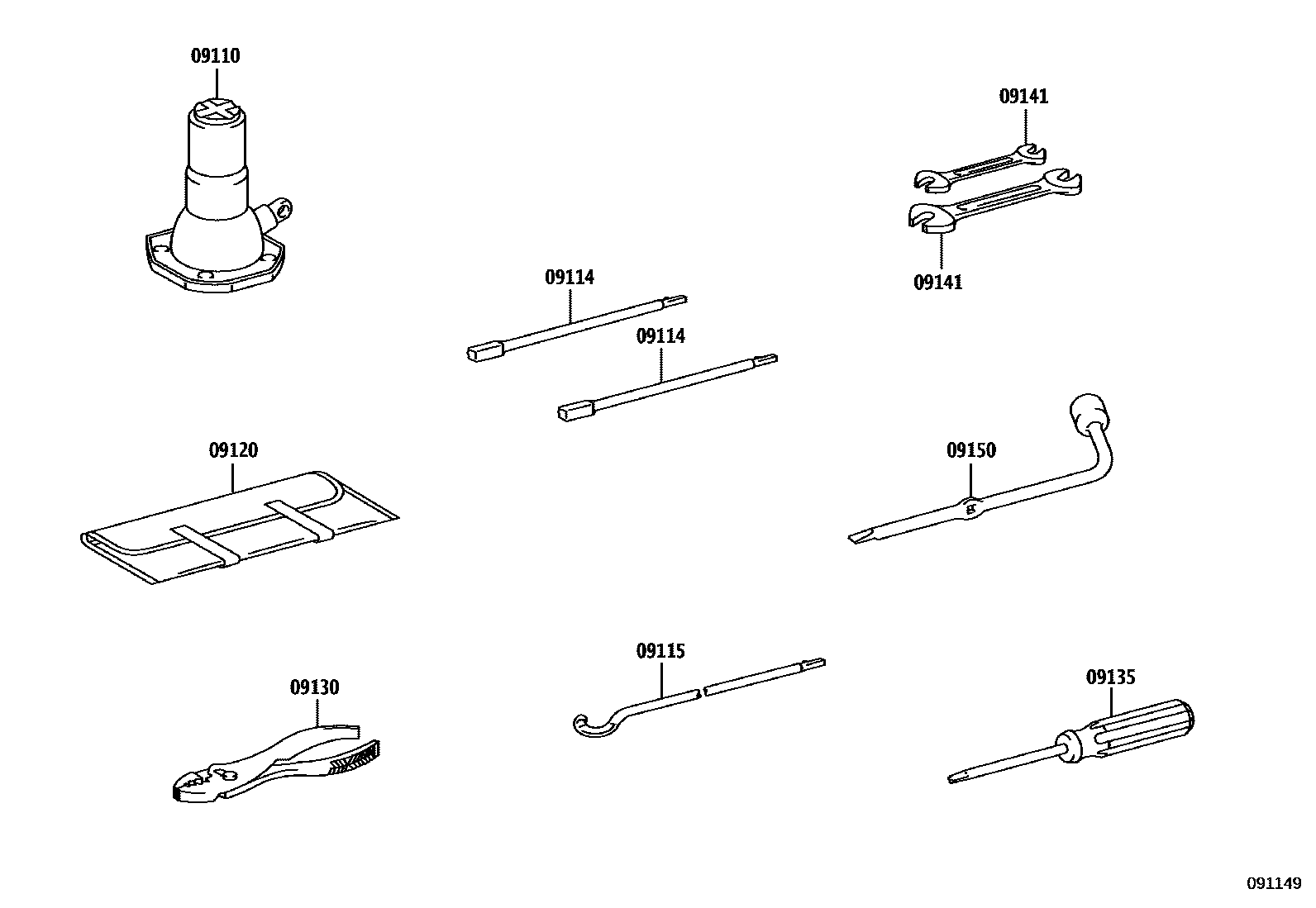

STANDARD TOOL

09110JACK ASSY

main09111-0K162iGUN12#,135..SAP202208-202401

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K150iGUN12#,135..THP202208-202307

main09114-0K190iGUN12#,135..SAP202301-202401

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K170iGUN12#,135..THP202208-202307

main09115-0K190iGUN12#,135..SAP202301-202401

09120BAG, TOOL

main09120-0K230iGUN12#,135..SAP202301-202401

sub09120-0K231

main09120-0K240iGUN12#,135..THP202208-202307

09130PLIERS

main90089-99010iGUN12#,135..SAP202208-202401

09135DRIVER, SCREW

main90089-99009iGUN12#,135..SAP202208-202401

09141SPANNER

main09141-0K030iGUN12#,135..SAP202208-202401

8 X 10

main09141-0K040iGUN12#,135..THP202208-202401

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN12#,135..SAP202301-202401

main09150-0K010iGUN12#,135..THP202208-202307

8 parts on this diagram · 1 diagram in section
