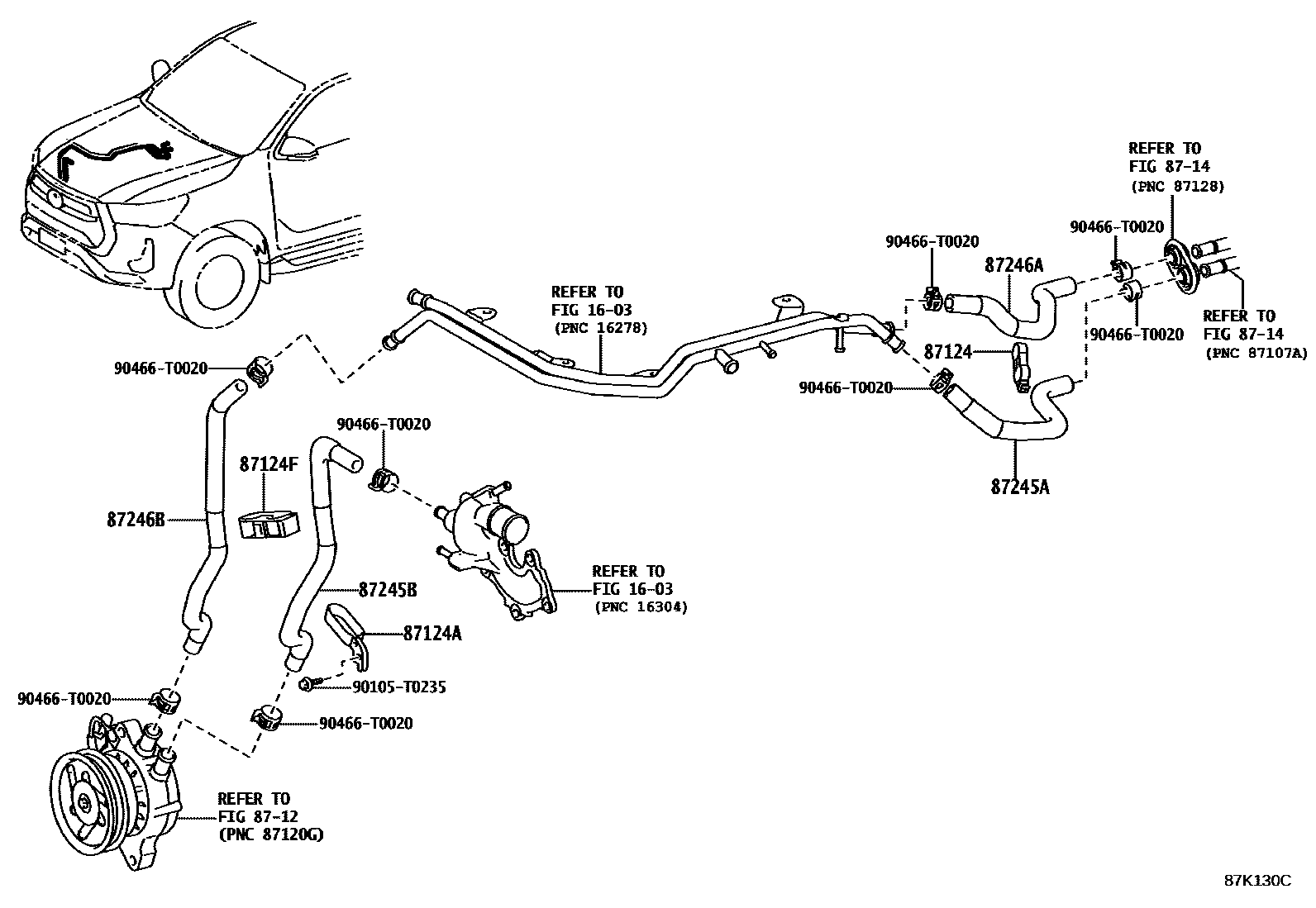

HEATING & AIR CONDITIONING - WATER PIPING

1603

8712

87124CLAMP, HEATER

main87124-0K150iGUN12#,135..THP202108-202207

87124ACLAMP, HEATER

main87124-0K200iGUN12#,135..SAP202108-202301

87124FCLAMP, HEATER HOSE, NO.1

main87124-60110iGUN12#,135..SAP202108-202301

8714

87245AHOSE, HEATER WATER, INLET A

main87245-0KD10supersedes 87245-0KE02iGUN12#,135..SAP202108-202301

87245BHOSE, HEATER WATER, INLET B

main87245-0KE80iGUN12#,135..SAP202108-202301

87246AHOSE, HEATER WATER, OUTLET A

main87245-0KF00supersedes 87245-0KE11iGUN126..THP202108-202207

EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)

87246BHOSE, HEATER WATER, OUTLET B

main87245-0KE90iGUN125..THP..6F202108-202207

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

90105T0235

main90105-T0235

90466T0020

main90466-T0020

12 parts on this diagram · 1 diagram in section
