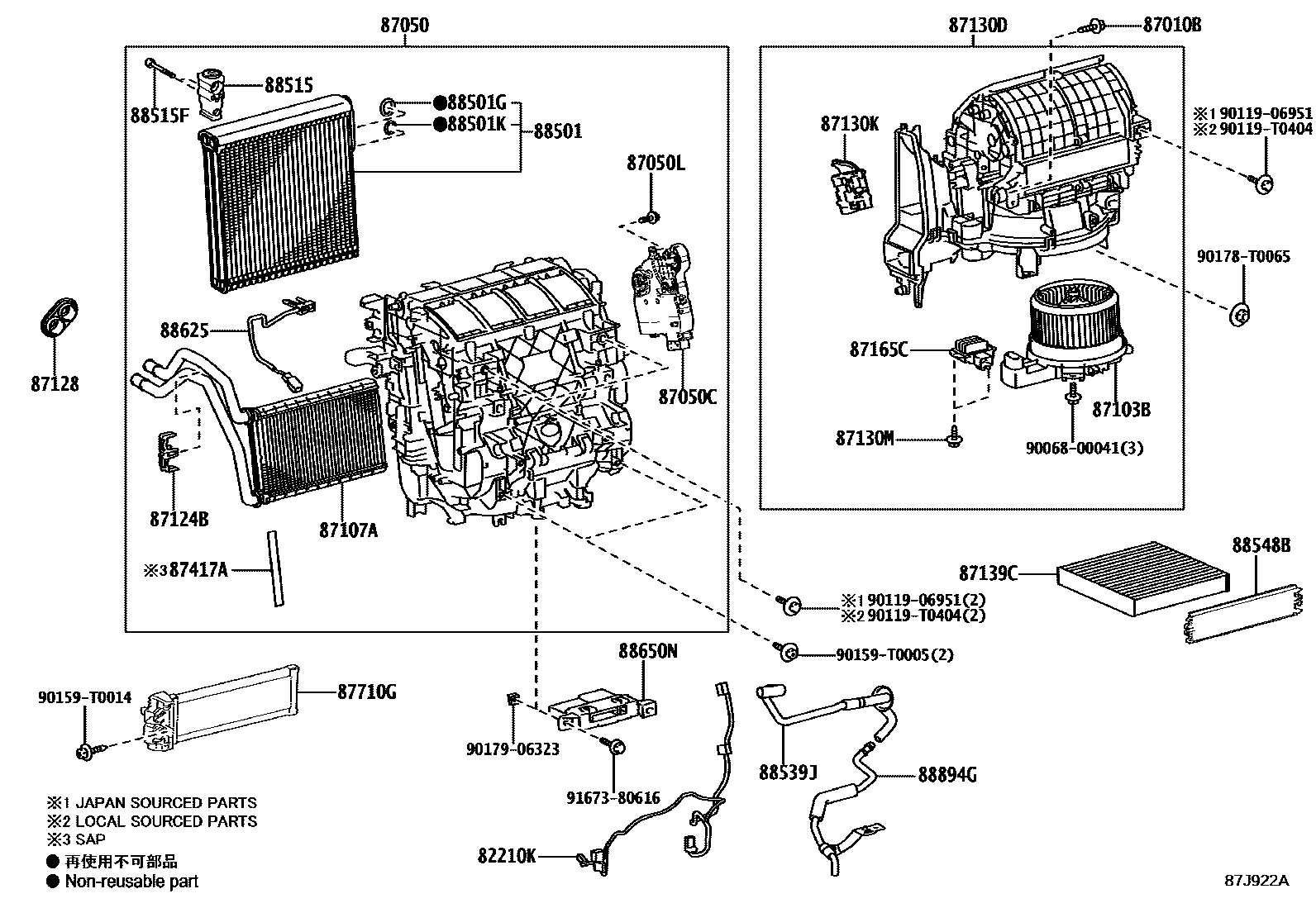

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL HEATER 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN12#..RHD..H202109-202301

main82212-0K060iGUN135..H;GUN125..XTR..H202108-202301

FRONT AIR CONDITIONER-AUTO

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90068-00042×2iGUN12#,135..THP202108-202207

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KB60supersedes 87050-0KR80iGUN126..XTR202109-202301

FRONT AIR CONDITIONER-MANUAL

main87050-0KB80supersedes 87050-0KR90iGUN125..LHD..DCB..SAP..H202109-202301

FRONT AIR CONDITIONER-MANUAL

main87050-0KC50iGUN125..RHD..SCB202109-202301

main87050-0KC61iGUN125..RHD..XTR202109-202301

main87050-0KL21supersedes 87050-0KS00iGUN125..RHD..DCB..S202109-202301

FRONT AIR CONDITIONER-MANUAL

main87050-0KP50supersedes 87050-0KD20iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

main87050-0KG00iGUN135..SCB,XTR;GUN125..LHD..SCB202109-202301

FRONT AIR CONDITIONER-COOLER LESS

main87050-0KR70iGUN125..LHD..DCB..SAP..H202109-202301

TOYOTA STOP & START SYSTEM-WITHOUT

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4060iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90068-00042iGUN12#,135..THP202108-202207

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K391iGUN12#,135..THP202108-202207

main87103-0K491iGUN12#..RHD202109-202301

main87103-0K501iGUN12#,135..LHD..SAP202109-202301

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN12#,135..THP202108-202207

main87107-0K170iGUN12#,135..SAP202109-202301

87124BCLAMP, HEATER

main87124-06140iGUN12#,135..THP202108-202207

main87124-0K230iGUN12#,135..SAP202109-202301

87128GROMMET, HEATER

main87128-0K180iGUN12#,135..THP202108-202207

main87128-0K200iGUN12#,135..SAP202109-202301

87130DBLOWER ASSY

main87130-0K631supersedes 87130-0K581iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

main87130-0K761supersedes 87130-0K601iGUN135..SAP;GUN125..LHD..(SCB,XTR);GUN125..LHD..DCB..SAP..(L,S)202109-202301

FRONT AIR CONDITIONER-MANUAL

main87130-0K791supersedes 87130-0K811iGUN12#..RHD..H202109-202301

FRONT AIR CONDITIONER-MANUAL

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K241iGUN135..H;GUN125..XTR..H202108-202301

FRONT AIR CONDITIONER-AUTO

main87106-0K251iGUN12#..RHD..H202109-202301

87130MSCREW(FOR BLOWER)

main90068-00042×5supersedes 90068-00042iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

87139CFILTER, CLEAN AIR

main87139-0K070iGUN12#,135..THP202108-202207

POLLEN FILTER,OE PART

main87139-0K090iGUN12#,135..SAP202109-202301

POLLEN FILTER,OE PART

main87139-58010iGUN12#,135..THP202108-202207

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

87417APACKING, AIR DUCT

main87417-0K050iGUN12#,135..SAP202109-202301

87710GQUICK HEATER ASSY

main87710-0K100iGUN12#,135..THP202108-202207

main87710-0K110iGUN12#,135..SAP202109-202301

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K390iGUN12#,135..THP202108-202207

main88501-0K420supersedes 88501-0K400iGUN135..SAP;GUN125..LHD..(SCB,XTR);GUN125..LHD..DCB..SAP..(L,S)202109-202301

TOYOTA STOP & START SYSTEM-WITHOUT

main88501-0K430supersedes 88501-0K500iGUN12#..RHD..H202109-202301

FRONT AIR CONDITIONER-MANUAL

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGUN12#,135..THP202108-202207

ID=10.2,OD=15.0

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGUN12#,135..THP202108-202207

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN12#,135..THP202108-202207

main88515-0K600supersedes 88515-0K680iGUN125..LHD..DCB..SAP..H202109-202301

TOYOTA STOP & START SYSTEM-WITHOUT

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04062×2iGUN12#,135..THP202108-202207

88539JHOSE, DRAIN COOLER

main88539-0K380iGUN12#,135..THP202108-202207

main88539-0K420iGUN12#,135..LHD..SAP202109-202301

main88539-0K430iGUN12#..RHD202109-202301

88548BCASE, AIR FILTER

main88548-0K121iGUN12#,135..SAP202109-202301

main88899-06330iGUN12#,135..THP202108-202207

88625THERMISTOR, COOLER, NO.1

main88620-0K010supersedes 88620-0K020iGUN12#,135..THP202108-202207

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K740supersedes 88650-0K830iGUN125,135..THP..S202108-202207

FRONT AIR CONDITIONER-AUTO

main88650-0K830supersedes 88650-0K740iGUN126..SAP;GUN125..DCB..SAP..H202108-202301

FRONT AIR CONDITIONER-MANUAL

main88650-0K520iGUN125,135..LHD..SAP..S202109-202301

WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGUN12#,135..THP202108-202207

main88894-0K100supersedes 88894-0K190iGUN135..SAP;GUN125..LHD..(SCB,XTR);GUN125..LHD..DCB..SAP..(L,S)202109-202301

TOYOTA STOP & START SYSTEM-WITHOUT

main88894-0K110iGUN12#..RHD202109-202301

9006800041

main90068-00041

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

34 parts on this diagram · 5 diagrams in section
