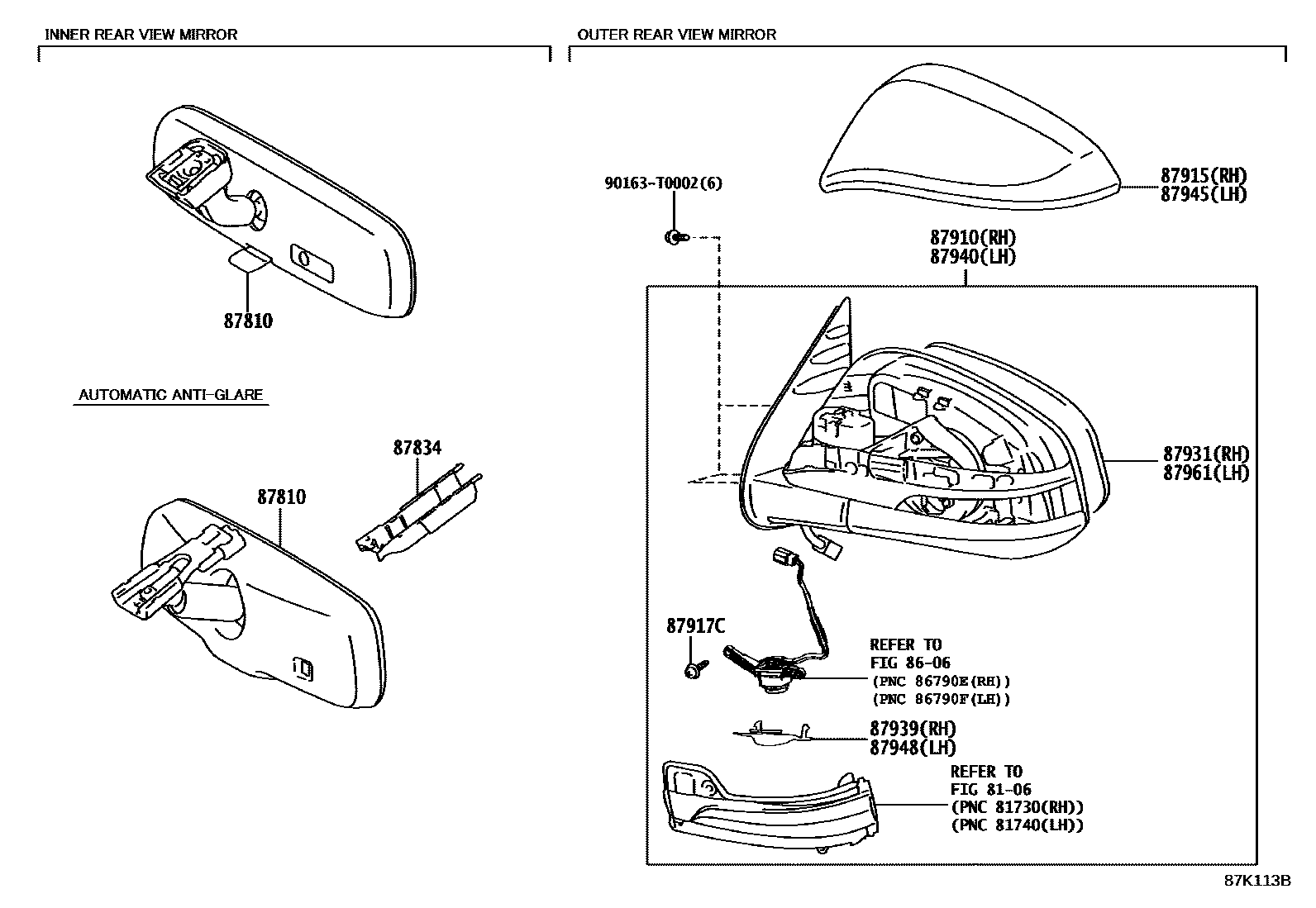

MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.,BLACK
PLATED,BLACK
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE
87917CSCREW, OUTER MIRROR
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
87939COVER, OUTER MIRROR HOLE, RH
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.,BLACK
PLATED,BLACK
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE
87948COVER, OUTER MIRROR HOLE, LH
GR SPORT&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)&BACK MONITOR-WITH(*PVM)
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
90163T0002
main90163-T0002
14 parts on this diagram · 1 diagram in section
