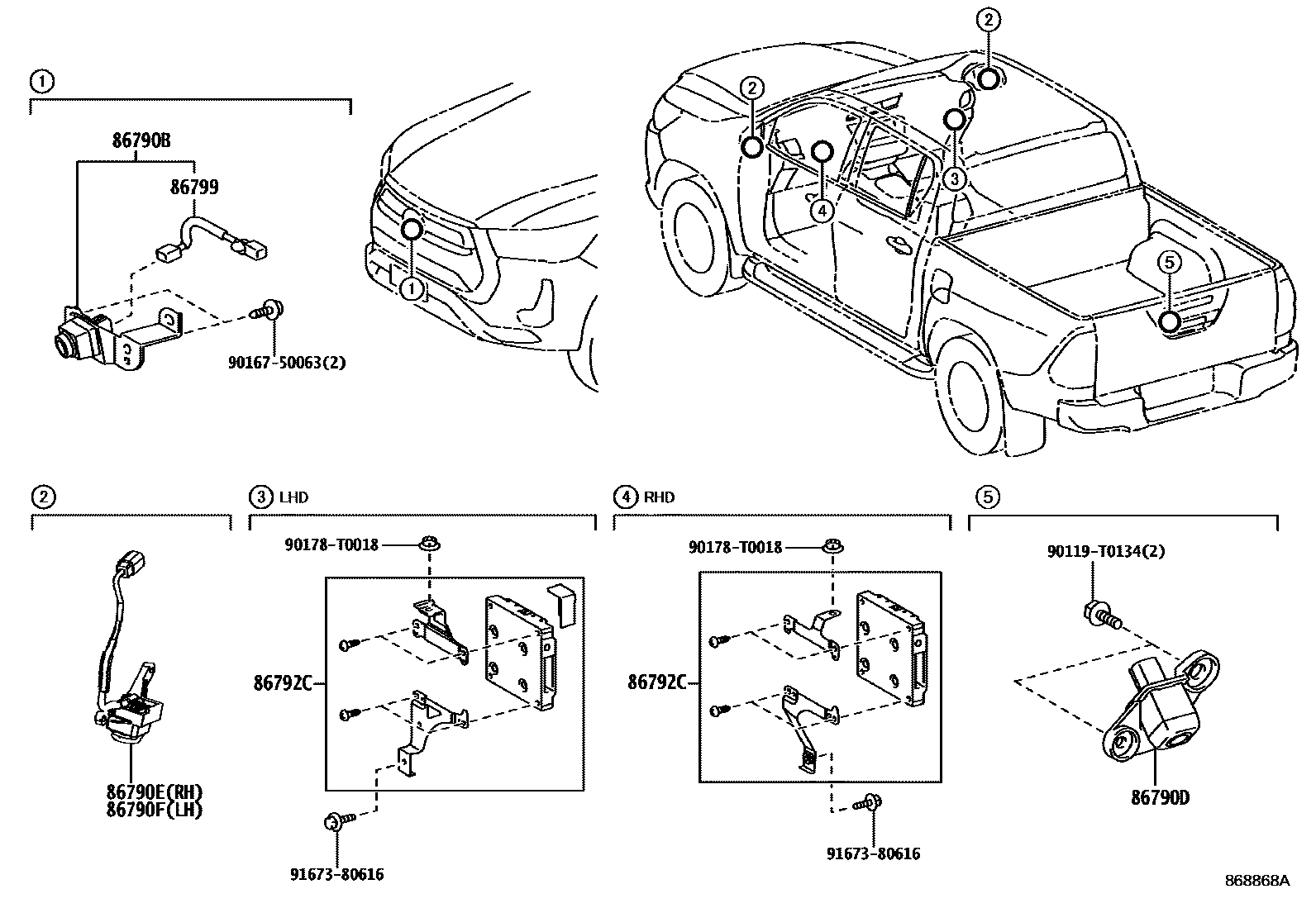

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main86790-0K050iGUN12#..THP..H202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

sub86790-0K051

main86790-0K050iGUN12#..THP..H202108-202207

AUDIO-AVN(8INCH) & *BT & DAB

sub86790-0K051

main86790-0K050iGUN12#,135..SAP..H202108-202301

sub86790-0K051

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86792CCOMPUTER, PARKING ASSIST

86799WIRE, TELEVISION CAMERA

main86799-0K040

90119T0134

main90119-T0134

9016750063

main90167-50063

90178T0018

main90178-T0018

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
