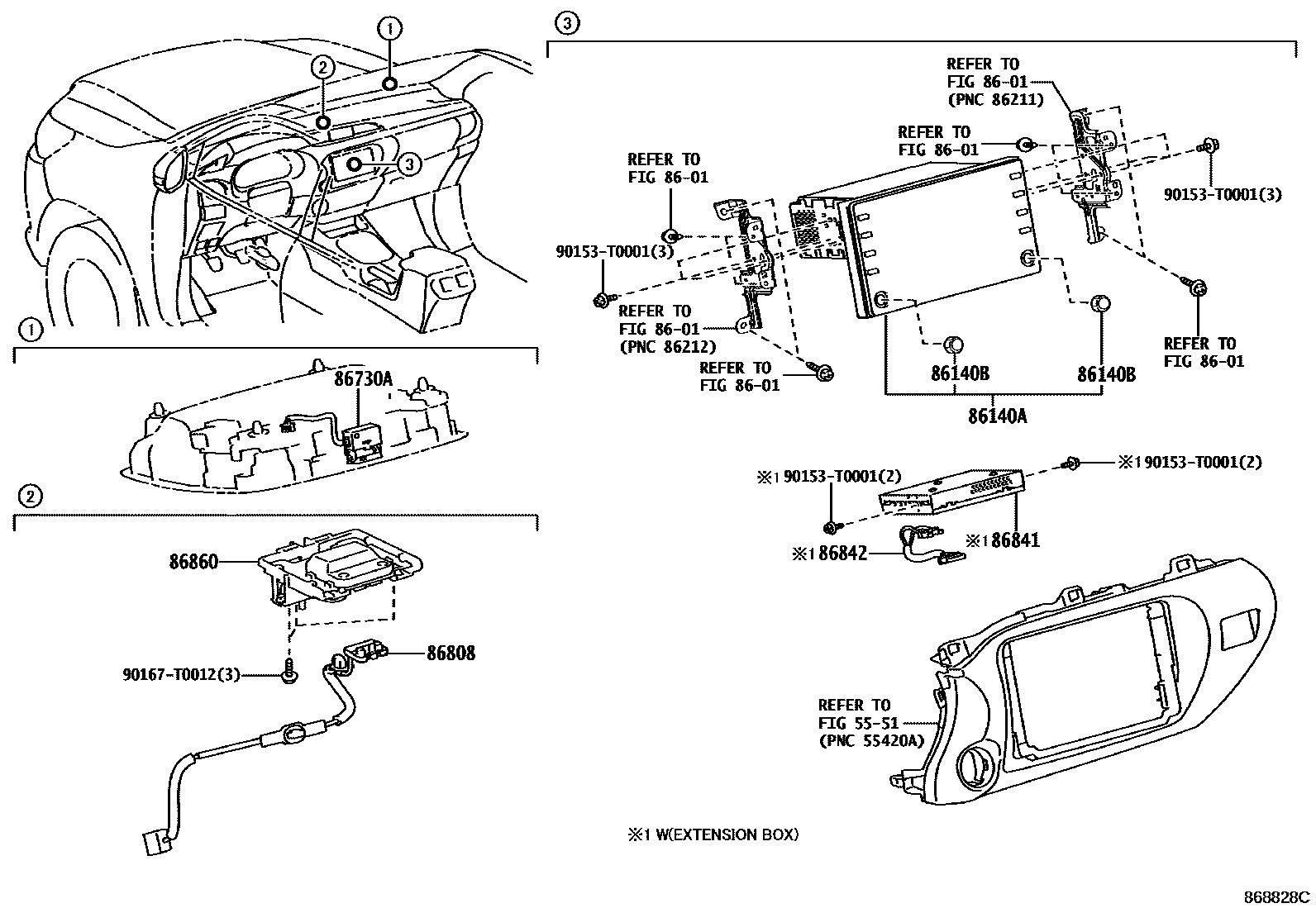

NAVIGATION & FRONT MONITOR DISPLAY
5551
8601
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86730AMICROPHONE ASSY, TELEPHONE
AUDIO-AM/FM & CD & *BT & RDS
AUDIO-AM/FM & CD & *BT & RDS&DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
RUSSIA&CUSTOM UNION SPEC&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
RUSSIA&CUSTOM UNION SPEC&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
RUSSIA&CUSTOM UNION SPEC&DATA COMMUNICATION MODULE-WITH(ERA-GLONASS(ROLL OVER))
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
TURKEY SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
TURKEY SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITHOUT
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL)
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB&DATA COMMUNICATION MODULE-WITH(E-CALL)
DATA COMMUNICATION MODULE-WITH(E-CALL)
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
86842WIRE, NAVIGATION, NO.1
86860ANTENNA ASSY, NAVIGATION
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
90153T0001
main90153-T0001
90167T0012
main90167-T0012
11 parts on this diagram · 1 diagram in section
