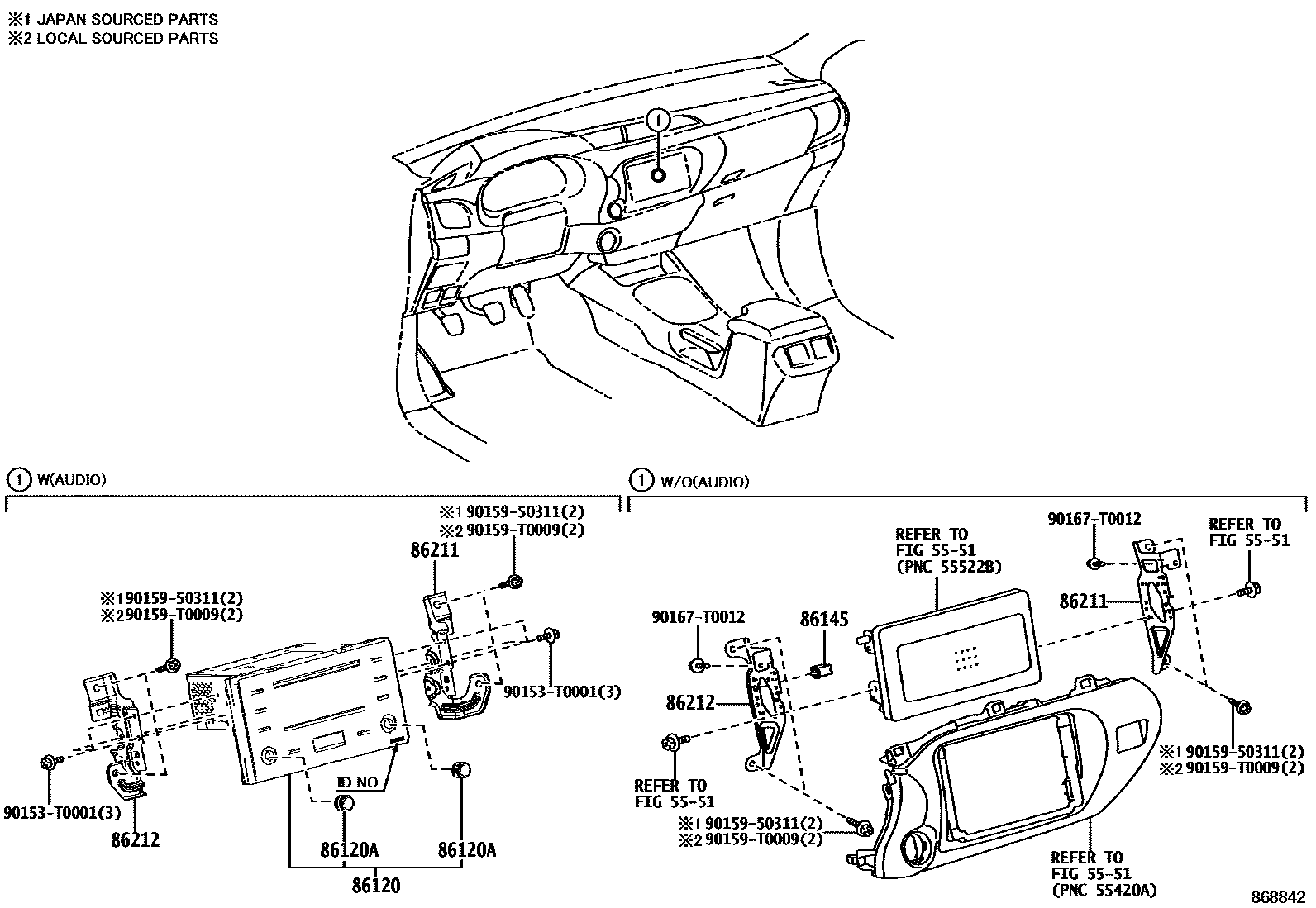

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RADIO RECEIVER 0002 1AMPLIFIER & JACK ADAPTER

5551

86120RECEIVER ASSY, RADIO

main86120-0KE90iGUN135..DCB..SAP..S202109-202111

DENSO TEN,ID=100892,AUDIO-AM/FM & CD & *BT & RDS

sub86120-0KE91

main86120-0KE90iGUN135..SCB,XTR;GUN125..SAP..(L,S)202109-202111

DENSO TEN,ID=100892

sub86120-0KE91

main86120-0KE91iGUN135..DCB..SAP..S202112-202301

DENSO TEN,ID=100892

main86120-0KE91iGUN135..DCB..SAP..S202112-202301

DENSO TEN,ID=100892,AUDIO-AM/FM & CD & *BT & RDS

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23060iGUN135..DCB..SAP..S202109-202301

AUDIO-AM/FM & CD & *BT & RDS

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN12#,135..THP..S202108-202301

86211BRACKET, RADIO, NO.1

main86211-KK050iGUN12#,135..THP..S202108-202301

main86211-KK100iGUN135..SCB,XTR;GUN125..SAP..(L,S)202109-202301

AUDIO-AM/FM & CD & *BT & RDS

main86211-KK130iGUN12#,135..THP..S202108-202207

AUDIO-AVN(8INCH) & *BT & DAB

main86211-KK130iGUN12#..THP..H202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

main86211-KK130iGUN12#,135..SAP..H202108-202301

86212BRACKET, RADIO, NO.2

main86212-KK050iGUN12#,135..THP..S202108-202301

main86212-KK100iGUN135..SCB,XTR;GUN125..SAP..(L,S)202109-202301

AUDIO-AM/FM & CD & *BT & RDS

main86212-KK130iGUN12#,135..THP..S202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

main86212-KK130iGUN12#..THP..H202108-202207

AUDIO-AVN(8INCH) & *BT & DAB

main86212-KK130iGUN12#,135..SAP..H202108-202301

90153T0001

main90153-T0001

9015950311

main90159-50311

90159T0009

main90159-T0009

90167T0012

main90167-T0012

10 parts on this diagram · 2 diagrams in section
