HEADLAMP CLEANER

8401

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-0K050iGUN12#,135..THP202108-202301

main85207-0K050iGUN12#..H202108-202204

MLM ADVENTURE PACKAGE

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-0K050iGUN12#,135..SAP..H202108-202301

main85208-0K050iGUN12#..H202108-202204

MLM ADVENTURE PACKAGE

85272ACLAMP, HEADLAMP CLEANER, NO.1

main90075-90512iGUN12#,135..SAP..H202108-202301

main90075-90512iGUN12#..H202108-202204

MLM ADVENTURE PACKAGE

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iGUN12#,135..SAP..H202108-202301

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85271-0K050iGUN12#,135..SAP..H202108-202301

main85271-0K050iGUN12#..H202108-202204

MLM ADVENTURE PACKAGE

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iGUN12#,135..THP202108-202301

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85046-0K020iGUN12#..H202108-202204

MLM ADVENTURE PACKAGE,RH

main85046-0K020iGUN12#,135..THP202108-202301

RH

main85047-0K010iGUN12#,135..THP202108-202301

LH

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iGUN12#,135..THP202108-202301

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053iGUN126..THP202108-202207

L=35,ISRAEL SPEC (EURO 6 REGULATION)

main90075-15053iGUN126..THP202108-202207

L=35,TURKEY SPEC (EURO 6 REGULATION)

main90075-15053iGUN126..THP202108-202207

L=35,UKRAINE SPEC (EURO 6 REGULATION)

main90075-15053iGUN12#,135..THP202108-202301

L=35

main90075-15053iGUN12#,135..THP202108-202207

L=35,RUSSIA&CUSTOM UNION SPEC

9007591002

main90075-91002

90119T0098

main90119-T0098

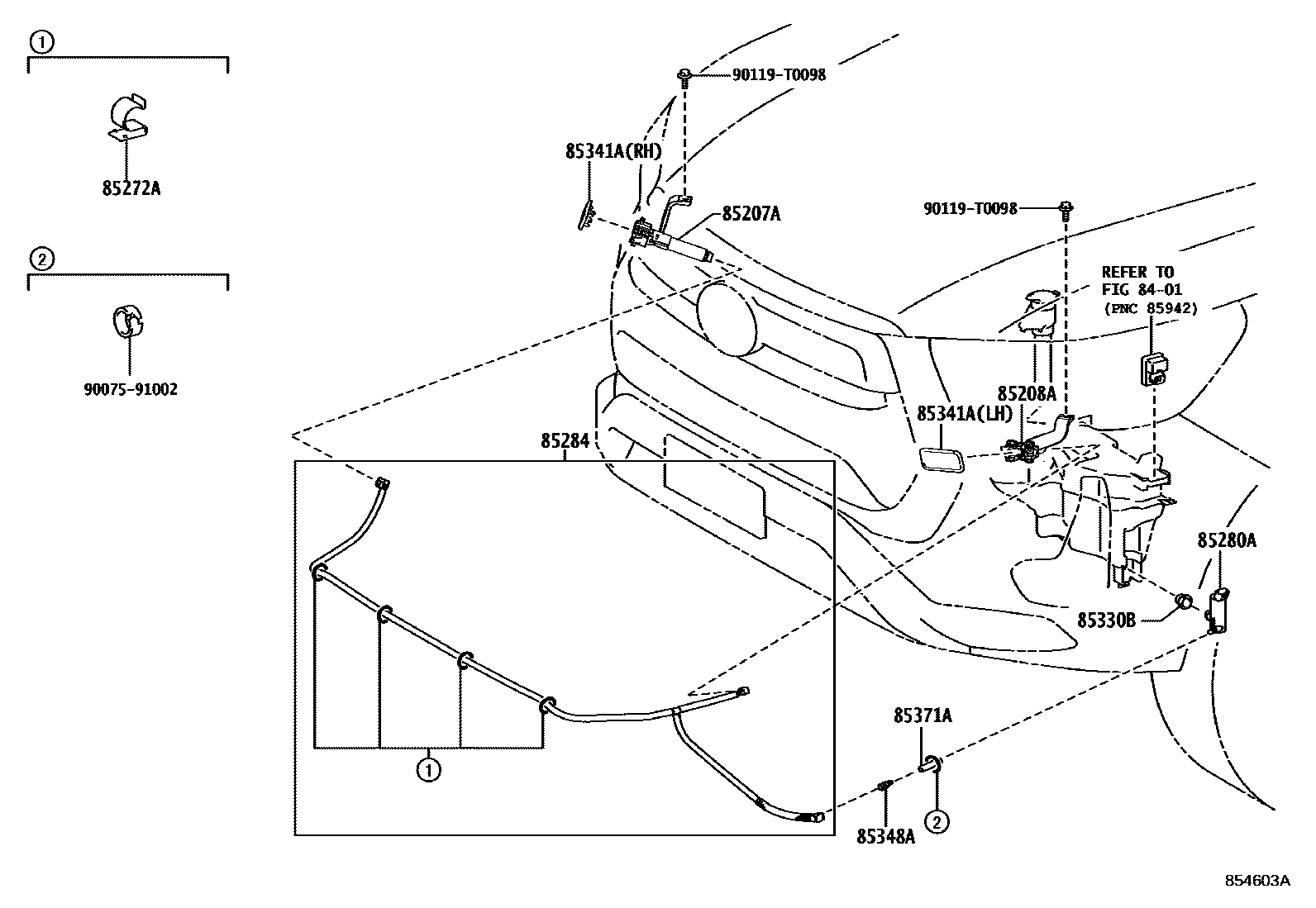

12 parts on this diagram · 1 diagram in section
