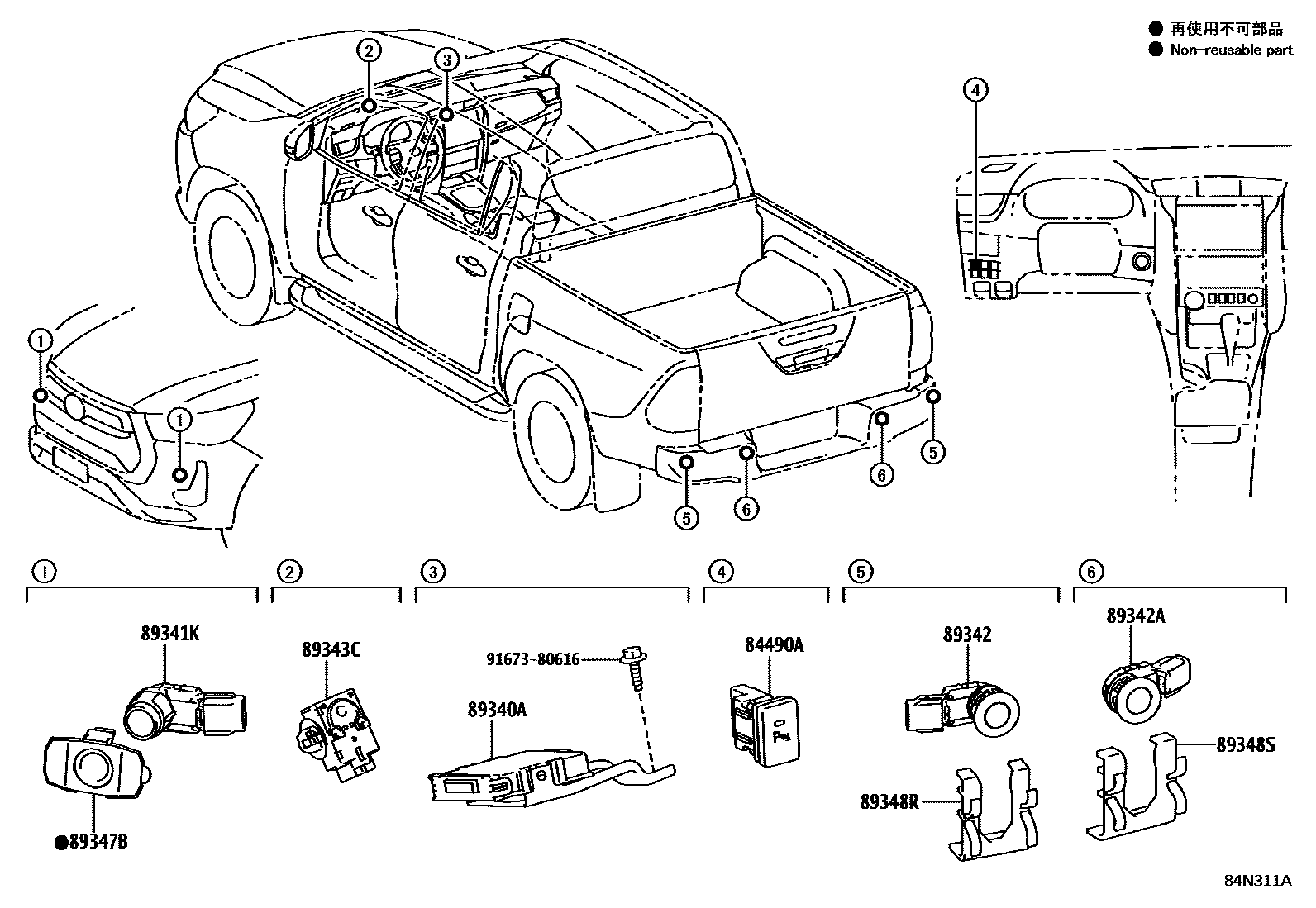

CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-0K030supersedes 89340-0K030iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-06080-A0×2supersedes 89341-06080-A0iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
main89341-06080-A1×2supersedes 89341-06080-A1iGUN12#..THP..H202108-202207 PLATINUM WHITE PEARL MC.,089
main89341-06080-A2×2supersedes 89341-06080-A2iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
main89341-06080-B2×2supersedes 89341-06080-B2iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
main89341-06080-B3×2supersedes 89341-06080-B3iGUN12#..THP..H202108-202207 SILVER ME.,1D6
main89341-06080-C0×2supersedes 89341-06080-C0iGUN12#..THP..H202108-202207 ATTITUDE BLACK MC.,218
main89341-06080-D2×2supersedes 89341-06080-D2iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6
main89341-06080-D5×2supersedes 89341-06080-D5iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
main89341-06080-E3×2supersedes 89341-06080-E3iGUN12#..THP..H202108-202207 ORANGE ME.,4R8
main89341-06080-G2×2supersedes 89341-06080-G2iGUN12#..THP..H202108-202207 OXIDE BRONZE ME.,6X1
main89341-06080-J2×2supersedes 89341-06080-J2iGUN12#..THP..H202108-202207 NEBULA BLUE ME.,8X2
main89341-06080-J3×2supersedes 89341-06080-J3iGUN12#..THP..H202108-202207 DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-71040×2supersedes 89341-71040iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-71030×2supersedes 89341-71030iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-48010supersedes 89343-48010iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-06110×2supersedes 89348-0K020iGUN12#..6F..H;GUN12#..XTR..6FC202109-202301 MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&REAR BUMPER-WITH(*RUPD(PAINTED))
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-71020×2supersedes 89348-71020iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-71030×2supersedes 89348-71030iGUN12#..THP..H202108-202207 CLEARANCE & BACK SONAR-WITH
10 parts on this diagram · 2 diagrams in section
